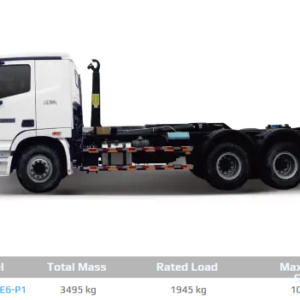

BJ5032ZXXE6-P1 Roll-off Garbage Truck
BJ5032ZXXE6-P1 Roll-off Garbage Truck

BJ5032ZXXE6-P1 Roll-off Garbage Truck

BJ5032ZXXE6-P1 Roll-off garbage truck also known as hook arm truck, pull arm hook; Can be equipped with a number of truck, with self-unloading function, hydraulic operation, convenient dumping, simple operation, suitable for towns, streets, industrial and mining enterprises, residential towns bagging, bulk household garbage collection, transfer operations of special vehicles.

The truck can pull the garbage in the garbage box and the garbage box together to the car to carry away, but also can be self-unloading operation, reduce the labor intensity of workers. The collection and transportation mode of the garbage truck is widely used in the world at present??greatly reducing the cost and space of the equipment. The functions of the special device are powered by the automobile engine, which is realized manually or electronically by the hydraulic mechanism. The truck body adopts high quality carbon steel plate completely sealed welding structure, which has the advantages of high strength, light weight and no secondary pollution.



SKU: BJ5032ZXXE6-P1 Category:
  • Foton new generation of sanitation chassis: European technical standards of production, bearing capacity, low fuel consumption, low noise, smooth driving, for the garbage truck design of the special chassis.
  • The hydraulic pipe adopts the international general DIN24 ?? standard, the hydraulic pipe adopts galvanized precision seamless steel pipe, the use of Eton Walform extrusion molding, CNC bending molding, the use of three-stage filtration system, to ensure the cleanliness of the hydraulic system above NAS9 level.
  • The truck electronic control system adopts the integrated design of electronic control system.
  • Harbin DongAn /DAM15KL gasoline engine, rated power of 85 kW, rated speed of 6000 RPM, emissions meet the national VI standards, strong power, low noise, more fuel efficient, stable and reliable performance.
Truck Model:BJ5032ZXXE6-P1
Total Mass:3495 kg
Rated Load:1945 kg
System Pressure:16 MPa
Power:85 kW
Wheelbase:2566 mm
Basic Turck(L * W * H):4180 mm * 1670 mm * 1945/1900/1920 mm
Top Speed:100 km/h
Displacement:1498 ml
Tire Specifications:175R14LT 8PR
Max. Approach Angle:24 ??
Max. Departure Angle:29 ??
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

Foton BJ5032ZXXE6-P1 Roll-off Garbage Truck Data Sheet

ModelBJ5032ZXXE6-P1Total Weight 3495 kgEquipment Weight 1420 kg
Rated Load 1945 kgTruck Length 4180 mmTruck Width 1670 mm
Truck Height 1945/1900/1920 mmMax. Approach Angle 24 ??Max. Departure Angle 29 ??

Chassis Argument of Foton BJ5032ZXXE6-P1 Roll-off Garbage Truck

Model SpecificationsBJ1030V5JV3-51Wheelbase 2566 mmNumber of Axes2
Top Speed 100 km/hTire Quantity6Tire Specifications175R14LT 8PR
Engine ModelDAM15KLDisplacement 1498 mlPower 85 kW
????END????

Foton BJ5032ZXXE6-P1 Roll-off Garbage Truck Bodywork Parameter

Outside Width of Truck Body Track 950 mmDistance from Hook Arm to Rear Axle Center 1800 mm
Car Body Track Clearance Height ??115 mmMatch the Car Body Size 2.5 m3
System Pressure 16 MPaLifting Capacity 1 TTipper Tilt Angle 47 ??
Height of Hook Arm 1015 mmSelf-Unloading Time ??60 sLoading and Unloading Time ??60 s
????END????

Optional Accessories of Foton BJ5032ZXXE6-P1 Roll-off Garbage Truck

1. Reversing Camera2. Wireless Remote Control3. Internet of Truck
????END????
