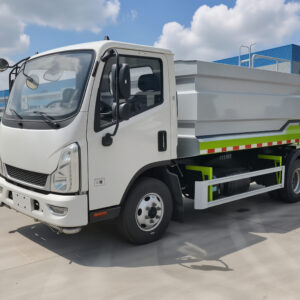

The product has the functions of spray dust removal, forward flushing, after spraying, green belt watering, water cannon and so on. It can also be used for auxiliary fire fighting, etc. It is a multi-functional product with both sprinkler and dust suppression car.
The pipeline adopts precision steel pipe CNC bending machine automatic forming, greatly reducing the welding of low pressure water pipe, to avoid pipe rust in the welding place resulting in water leakage, improve the overall appearance of the pipeline, relative to similar products in the industry are welded pipe + welded joint advantage.
The horizontal range can reach 20-100 meters, spray particles can reach 50-200 ??m, can cover a larger area, improve the effect of spray dust removal, water tank volume 10.5 cubic meters, can work for more than 1.5 hours continuously.
The vehicle has a good man-machine interface, man-machine engineering, convenient and flexible operation, fog cannon control adopts manual and remote control operation two modes, reduce the driver??s labor intensity, more safe and comfortable.
Foton environmental protection chassis, strong bearing capacity, high reliability. Equipped with Foton Cummins diesel engine, strong power, reliable operation, after-sales service is guaranteed.
| Truck Model: | BJ5184TDYE6-H1 |
| Total Mass: | 18000 kg |
| Rated Load: | 8030/7410/7965/7345 kg |
| Wind Cannon Range: | 80/100 m |
| Spray Flow: | 70/100 L/min |
| Max.Gradeability: | 30 ?? |
| Basic Turck(L * W * H): | 8640/9815 mm * 2530/2490 mm * 3545/3820 mm |
| Min.Turning Diameter: | 16 m |
| Max.Driving Speed: | 89 km/h |
| Wind Gun Pitch Angle: | -5 ?C 35 ?? |
| Wind Gun Rotation Angle: | ??90 ?? |
| Water Pump Pressure: | 1.3 Mpa |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Foton BJ5184TDYE6-H1 Anti-Dust Watering Truck Data Sheet | |||||
| Model | BJ5184TDYE6-H1 | Min.Ground Clearance | 190 mm | ||
| Total Mass | 18000 kg | Equipment Weight | 9840/10460 kg | ||
| Rated Load | 8030/7410/7965/7345 kg | Truck Length | 8640/9815 mm | Truck Width | 2530/2490 mm |
| Truck Height | 3545/3820 mm | Max. Approach Angle | 13 ?? | Max. Departure Angle | 8 ?? |
Chassis Argument of Foton BJ5183TDYE6-P1 Anti-Dust Watering Truck | |||||
| Model Specifications | BJ1186VKPHK-1K | Number of People Loaded | 2/3 | Max.Driving Speed | 89 km/h |
| Max.Gradeability | 30 ?? | Braking Distance | ??10 m | Min.Turning Diameter | 16 m |
| Engine Model | D6.7NS6B230/B6.2NS6B230 | Engine Rated Power | 169 kW / 2300 RPM | Engine Max.Net Power | 166 kW / 1800 RPM |
| ????END???? | |||||
Foton BJ5184TDYE6-H1 Anti-Dust Watering Truck Spray System Parameter | |||||
| Wind Cannon Range | 80/100 m | Wind Cannon Shoot Height | 20 m | Spray Distance | 70/100 m |
| Spray Flow | 100-160 L/min | Spray Particles | 50-200 ??m | Water Pump Pressure | 1.3 Mpa |
| Wind Gun Pitch Angle | -10 ?C 45 ?? | Wind Gun Rotation Angle | ??90 ?? | Wind Gun Working Noise | 88 dB |
Foton BJ5184TDYE6-H1 Anti-Dust Watering Truck Cleaning System Parameters | |||||
| The Max.Volume of the Tank (m3) | N/A | Width for Flushing [Both Sides] | 24 m | ||
| Rear Sprinkling Width [Both Sides] | 12 m | Green Spraying Width [Both Sides] | 12 m | ||
| Water Cannon Range | 38 m | Cleaning Water Flow | 600-800 L/min | ||
| ????END???? | |||||
