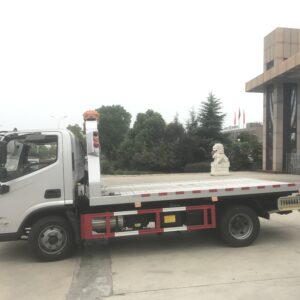

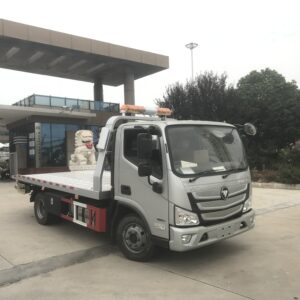

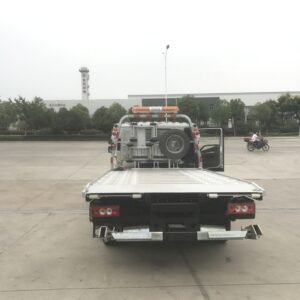

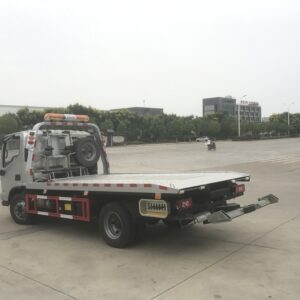

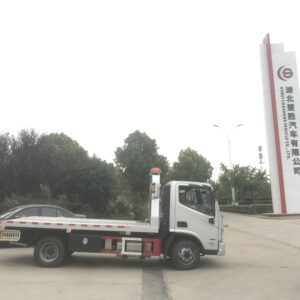

Model: 3 Ton AUMARK-C38 Flatbed Towing Truck
Overall Dimensions: 6725×2100×2280 mm
Wheelbase: 3800 mm
Gross Vehicle Weight: 6500 kg
Engine: F3.8s3141, 105kW / 450N·m, Euro Ⅲ
Max Speed: 95 km/h
Platform Size: 5550×2220 mm
Max Platform Bearing Capacity: 3000 kg
Max Lifting Weight: 1800 kg
Winch Rated Traction: 40 kN
Tire: 8.25R16
BRIEF
This AUMARK-C38 flatbed towing truck is equipped with a mature light-duty chassis developed by mainstream domestic vehicle manufacturers, meeting the latest regulatory standards. The flatbed superstructure is fabricated from high-strength steel with stable bearing performance and flexible angle adjustment, without occupying extra operating space. The complete hydraulic rescue assembly integrates lifting arm, flat platform and hydraulic winch, featuring advanced manufacturing technology and outstanding overall structural performance. Powered by a high-torque engine, the vehicle delivers strong power output, easy and comfortable operation, excellent traffic ability and sturdy long-lasting construction. It is widely applicable to road rescue, vehicle breakdown recovery, auto repair shops and traffic law enforcement scenarios.
| Vehicle model | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6725×2100×2280 |
| Wheel base(mm) | 3800 | |
| Weight data | Curb weight(kg) | 3305 |
| Gross vehicle weight（kg） | 6500 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | Euroâ…¢ | |
| Displacement（L） | 3.76 | |
| Rated Power（kw/rpm） | 105 | |
| Max torque （N.m/rpm） | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(8.25R16) | |
| Upload parameters | Lifting system | Maximum lifting weight（kg） | 1800 | |
| Maximum lifting capacity at full extension（kg） | 1330 | |||
| After Joe distance (mm) | 2540 | |||
| Effective length of bracket (mm) | 1640 | |||
| Support arm telescopic stroke | 1340 | |||
| Telescopic stroke of bracket (mm) | 7 | |||
| The lower Angle of the bracket | -9.5 | |||
| The maximum distance from the ground on the upper surface of the fully retracted cross arm (mm) | 550 | |||
| platform | Inner Length (mm) | 5550 | ||
| Inner Width (mm) | 2220 | |||
| Minimum inclination Angle of platform | 8 | |||
| Platform working stroke (mm) | 2700 | |||
| Platform height above ground (mm) | 1070 | |||
| Maximum bearing capacity of plate mechanism (kg) | 3000 | |||
| winch | Quantity | 1 | ||
| Rated traction per unit (kN) | 40 | |||
| Diameter of wire rope (mm) | φ11 | |||
| Length of wire rope (m) | 25 | |||
| Capstan Diameter (mm) | φ110 | |||
| Minimum linear speed of wire rope (m/min) | 5 | |||
| Basaic configuration | Hydraulic winch | Hydraulic control system | ||
| L-shaped tow arm | Hydraulic lock | |||
| High strength side panels | Alarm light (mounted on the gantry frame, removable | |||
| Lighting alarm light system | Lashing rope: 4 pieces | |||
| Training wheels | Take power. | |||
