Model AUMARK-C33
Truck Size 5875×2030×2230mm
Carrier Size 4170*2100*400mm
Wheelbase 3360mm
Crane SQ3.2SK2Q
BRIEF

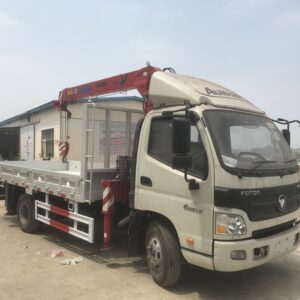

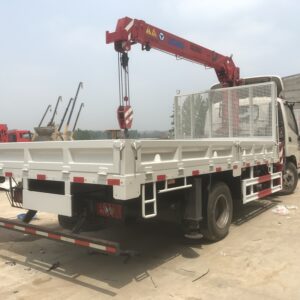

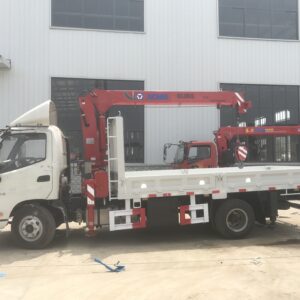

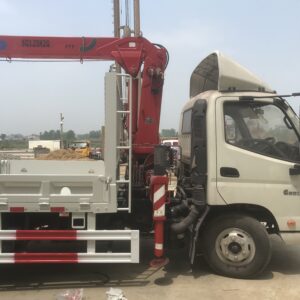

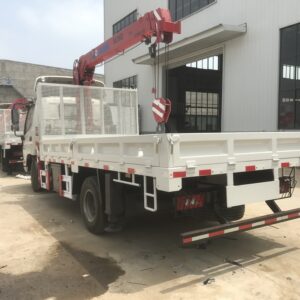

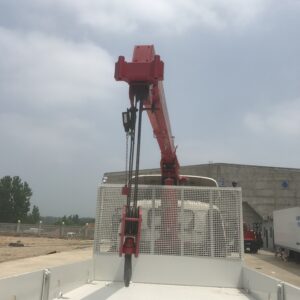

This Foton AUMARK-C33 truck mounted telescopic crane adopts a mature light-duty chassis from mainstream domestic manufacturers, fully complying with the latest regulatory standards. The cargo box and crane subframe are constructed from high-strength Q345 steel with thickened plates, delivering solid structural rigidity and excellent load-bearing capacity. Equipped with SQ3.2SK2Q straight-arm crane featuring full 360° rotation, the machine boasts flexible lifting operation and wide working range. Matched with a high-torque engine, the vehicle provides powerful dynamic performance, smooth control, reliable braking system and superior trafficability. With advanced production technology and durable overall structure, it is widely suitable for short-distance cargo handling, construction material transportation and various small lifting operation scenarios.
| Vehicle model | AUMARK-C33 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×2030×2230 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 2600 |
| Gross vehicle weight（kg） | 6495 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed（km/h） | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | Euroâ…¢ | |
| Displacement（L） | 3.76 | |
| Rated Power（kw/rpm） | 105 | |
| Max torque （N.m/rpm） | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | |
| Crane requirements | Type/Position | Straight arm/front |
| crane | SQ3.2SK2Q | |
| Rotation angle | 360°Full rotation | |
| Subframe | Material/plate thickness | Longitudinal beam :Q345/10mm Beam: Q345/8mm |
| Cargo box | size | 4170*2100*400mm |
