BRIEF

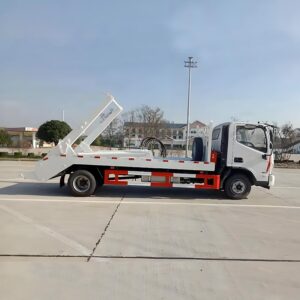

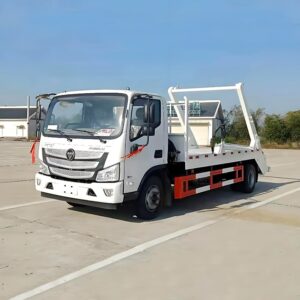

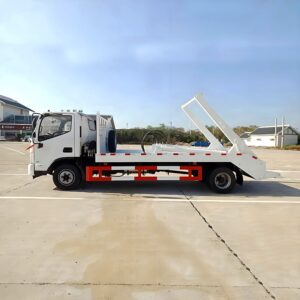

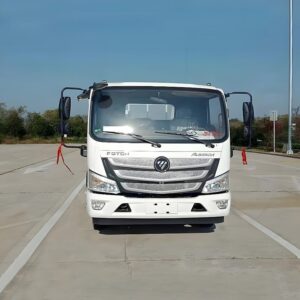

This Foton 6 Cubic Meter Swing Arm Container Garbage Truck is an efficient sanitation transport vehicle. Its waste hopper is built with Q235 carbon steel (3mm side, 4mm bottom), adopting hydraulic rear self-unloading design with electric, manual and integrated control modes; container loading and unloading only take 10 seconds each, and one full operation cycle finishes in 60 seconds. Equipped with a 110kW diesel engine, 6-speed manual gearbox, air brake system and 7.50R16LT tires, the compact 6900×2350×2980mm body with 3800mm wheelbase offers great flexibility, ideal for urban residential areas and downtown waste collection work.
| Parameters | |
| Brake | Air Brake |
| curb weight (kg) | 4800 |
| Engine power (kW) | 110 |
| Front Axle / Rear Axle ( t ) | 2.5/5 |
| Fuel type | Diesel |
| Garbage Hopper Material | Q235 carbon steel plate |
| Garbage Hopper Thickness (mm) | Side 3 bottom 4 |
| Garbage Hopper Volume (m³) | 6 |
| Gearbox | 6-Speed Manual |
| Loading the Box Time (S) | 10 |
| Number of Axes | 2 |
| Number of Tires | 6 |
| Operation method | Hydraulic self unloading/rear unloading type |
| Overall Dimensions (mm) | 6900×2350×2980 |
| Single Operation Cycle Time (S) | 60 |
| Tire Size | 7.50R16LT |
| Trade Name | Foton |
| Unload Box Time (S) | 10 |
| Unloading method | Electric control/manual/Manual electric integrated |
| Wheelbase (mm) | 3800 |
