BRIEF

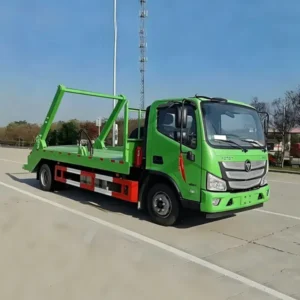

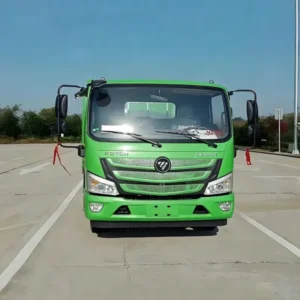

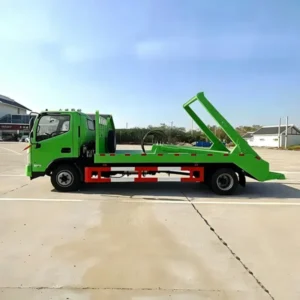

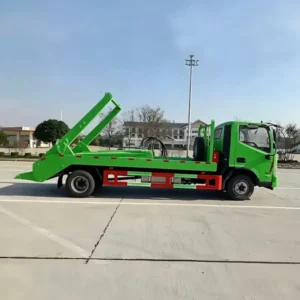

Our FOTON 6 Cubic Meter Swing-Arm Garbage Truck is a professional sanitation vehicle designed for centralized collection and transfer of domestic and municipal waste. It adopts an integrated swing-arm lifting structure to rapidly hoist and replace waste containers, enabling efficient full-load garbage transportation without secondary leakage and pollution. The waste container is made of sturdy Q235 carbon steel with thickened bottom and side plates, featuring strong anti-rust and anti-deformation performance for long-term daily sanitation use. Built on a mature Foton 4×2 left-hand drive chassis matched with a high-power Euro 3 engine and 6-speed gearbox, the vehicle provides sufficient power reserve, flexible driving control and stable load-bearing capacity. Its compact body brings outstanding maneuverability, allowing smooth passage through narrow residential roads, urban streets and scenic areas. This truck perfectly fits municipal sanitation companies, property management communities and environmental service projects, greatly improving waste collection efficiency and reducing manual labor costs.
| project | Descriptions | Specifications |
| General
| Overall dimensions(mm) | 7000×2460×3200 |
| curb weight(Kg) | 5000 | |
| Loading capacity(Kg) | 6865 | |
| Total mass(Kg) | 11995 | |
| Garbage Container Volume（m³） | 6 | |
| Garbage Container Material | Carbon steel Q235 | |
| Garbage Container（mm） | Side is 3mm bottom is 5mm | |
| Chassis
| Chassis brand | FOTON |
| Driver form | 4*2 | |
| Steering wheel | Left hand drive | |
| Engine brand and model | ISF3.8s3168 | |
| Max engine power(Kw) | 125 | |
| Engine emission standard | Euro 3 | |
| Gearbox | 6-speed gearbox | |
| Front/rear axle(t) | 3.6/8 |
