BRIEF

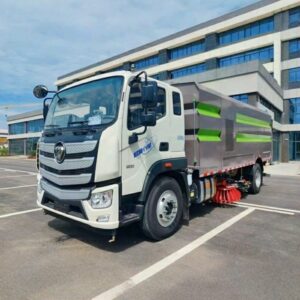

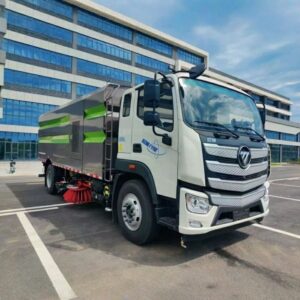

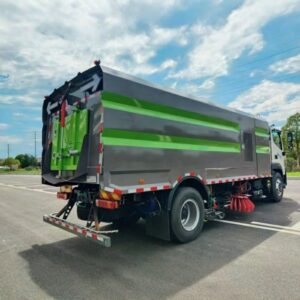

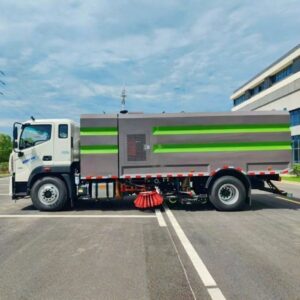

Our washing & vacuum road sweeper truck is an integrated sanitation vehicle combining sweeping, water sprinkling and high-power vacuum suction functions. Equipped with side sweeping brushes and full negative-pressure dust absorption system, it can thoroughly clean road dust, fallen leaves and gravel while suppressing flying dust via water spraying, avoiding secondary pollution effectively.
It supports customizable body colors and multiple mainstream chassis brands including Dongfeng, FAW, Foton, Shacman and IVECO for flexible matching. With stable overall structure and powerful cleaning performance, this multi-functional sweeper is widely applied in urban main roads, industrial parks, scenic spots and residential districts to complete full-range road surface cleaning work efficiently.
It supports customizable body colors and multiple mainstream chassis brands including Dongfeng, FAW, Foton, Shacman and IVECO for flexible matching. With stable overall structure and powerful cleaning performance, this multi-functional sweeper is widely applied in urban main roads, industrial parks, scenic spots and residential districts to complete full-range road surface cleaning work efficiently.
Core Main Parameters
- Product Name: Washing Street Sweeping Vacuum Road Sweeper Truck
- Overall Dimension (L×W×H): 8700×2500×3800 mm
- Total Weight: 8600 kg
- Cleaning Type: Water Sprinkling + Vacuum Suction + Mechanical Brushing
- Main Function: Full road surface sweeping, washing and dust collection
- Optional Chassis Brands: Dongfeng, FAW, Foton, Sino, JAC, IVECO, Shacman
- Body Color: Customizable as customer requirements
Vehicle Name | Dongfeng/HOWO/Isuzu/Foton/FAW/SHACMAN Sweeper Truck | |
Vehicle Model | CLW5141YSSA7 | |
Drive Type | 4*2/4*4/6×4/6*6 | |
Steering Wheel | LHD or RHD | |
Fuel Type | Diesel | |
Wheel Base | 2800/3360/3800/4200/4500/4700/4500+1400mm | |
GVM | 5000/7500/12000/18000/25000/32000Kg | |
Curb Weight | 2000-25000Kg | |
Rated Load Capacity | 1500-30000Kg | |
Overall Dimenssions | 5400/6000/7360/8600/9800/10600*2600*4000mm | |
Chassis Brand | Foton | |
Cab | Single/Double Cab with A/C | |
Engine | Model | IS120/140/170/190/210/270-10 |
Brand | Cummins/Yuchai/Yunei/Isuzu/Weichai | |
Power(KW/HP) | 60-200/68-540 | |
Emission | Euro II/â…¢/IV/â…¤ | |
Transmission | Brand | FAST/WlY |
5/6/8/10/12 Forward Gears and 1/2 Reverse Gear | ||
Tire | Size | 7.00/7.50/8.25/9.00/10.00/11.00/12.00R22.5 |
QTY | 4/6/10/12+1 | |
Axles | Front | 2-10Tons |
Rear | 3-20Tons | |
Auxiliary Engine | Brand | Cummins/Yuchai/Yunei/Isuzu/Weichai |
Model | 60-200/68-540 | |
Power(KW/HP) | 60-200/68-540 | |
Fuel | Diesel | |
Parameters of Special Devices | Maximum Sweeping Width | 1.8-2.8M |
Maximum Sweeping Capacity | 56000(m²/h) | |
Sweeping Speed | 5 – 20 (km/h) | |
Cleaning Speed | 15 – 20(km/h) | |
Water Tank | 10m³ | |
Garbage Bin | 12m³ | |
Suction Nozzle Device | Diameter of Suction Pipe | 140/220/140mm |
Ground Clearance of Working State | 5～10mm | |
Auxiliary Operating System | Equipped with an electronic control operating system at the rear to control the lifting of the large compartment and the opening and closing of the rear door, preventing safety accidents caused by the user not being able to observe the rear situation when operating in the cab | |
Manual Pump Emergency Lifting System | In case the hydraulic system fails due to an auxiliary engine malfunction and the sweeper brush, suction cup and large compartment cannot be lifted, the manual pump emergency lifting system can be used for operation | |
