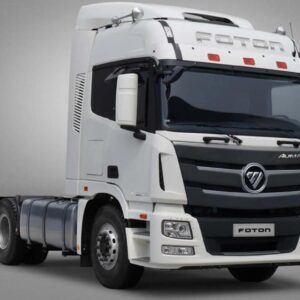

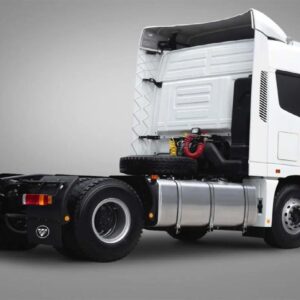

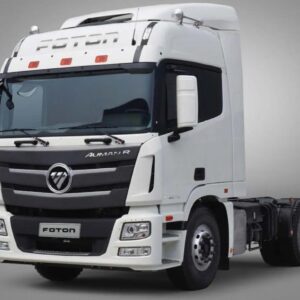

FOTON GTL 4×2 460HP AMT Tractor Truck

The FOTON GTL 4×2 460HP AMT tractor features an aerodynamically designed body to minimize air resistance during travel and has passed wind tunnel tests. At the same time, the air guide plate can be adjusted to further reduce wind resistance. Compared with other similar vehicles, it can save about 3%-5% fuel. The four-point airbag suspension cab and airbag seats significantly dampen vibrations and impacts while the vehicle is in motion, greatly enhancing driving comfort. Powered by the Cummins ISGe5-460 engine, it delivers robust and stable power output to meet high-demand transportation needs. It’s equipped with ZF TraXon12 AMT transmission boasting up to 99.7% transmission efficiency, the tractor can mimic the driver’s operating habits for better speed-gear matching and improved fuel economy. The 850L + 150L ultra-large fuel tank design provides extended range for long-distance transportation, reducing refueling frequency and increasing transport efficiency.
Category:

FOTON GTL Tractor Specifications

HS CODE: 8701203000

Truck Make/Model: FOTON GTL

Cab Chassis Make/Model: FOTONGTL-2400

Engine Make/Model: Cummins/ISGe5-460

Transmission Make/Model: ZF/12TX2420TD

Capacity: Max Towing Mass: 35 T

Main Component: Fifth wheel for connecting and supporting trailer

Performance: Strong power output with excellent fuel efficiency

BRIEF

THE FOTON GTL 42-460HP AMT tractor features an aerodynamically designed body to minimize air resistance during travel and has passed wind tunnel tests. At the same time, the air guide plate can be adjusted to further reduce wind resistance. Compared with other similar vehicles, it can save about 3-5% fuel. The four-point airbag suspension cab and wide seats significantly dampen vibrations and impact while the vehicle is in motion together with the 87% transmission efficiency, the tractor can mimic the driver’s operating habits for better speed matching and improved fuel economy. The 800L + 150L ultra-large fuel tank design provides a longer range for long-distance transportation, reducing refueling frequency and increasing transport efficiency.

FEATURES

Our Advantages / SpecialReference Pictures
1. Aerodynamic design truck bodyAerodynamic design truck body

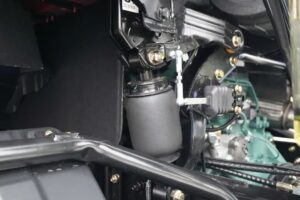

2. All-steel, four-point airbag suspension cabAll-steel, four-point airbag suspension cab

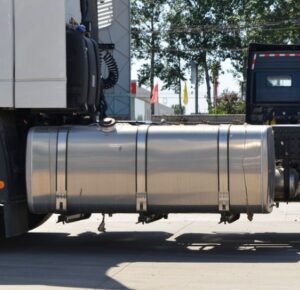

3. Large-capacity aluminum alloy fuel tankLarge-capacity aluminum alloy fuel tank

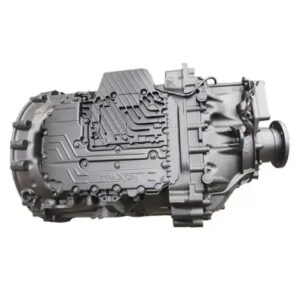

4. ZF TraXon12 AMT transmissionZF TraXon12 AMT transmission

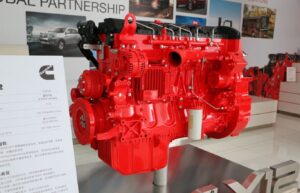

5. Cummins ISGe5-460 engine with robust and stable power outputCummins ISGe5-460 engine with robust and stable power output

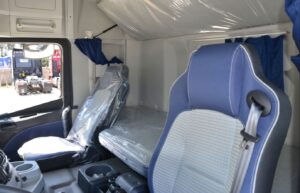

6. High roof sleeper cabHigh roof sleeper cab

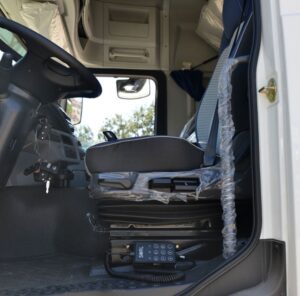

7. Airbag shock-absorbing seatAirbag shock-absorbing seat

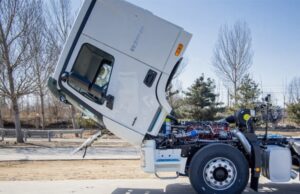

8. Electric lift cabElectric lift cab

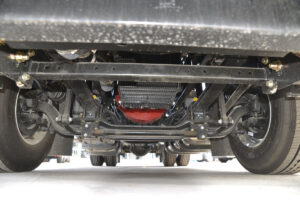

9. Leaf spring mechanical suspensionLeaf spring mechanical suspension
10. 315/80R22.5, 18PR radial tires315/80R22.5, 18PR radial tires
11. Premium brake padsPremium brake pads
12. High-precision, low rolling resistance bearingHigh-precision, low rolling resistance bearing

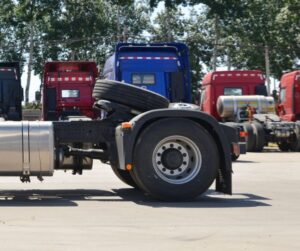

13. Complete wheel coverComplete wheel cover

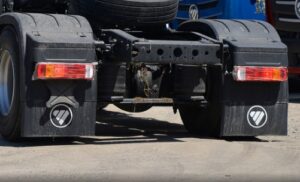

14. Bright long-lasting LED lightsBright long-lasting LED lights
15. Electrophoretic coatingElectrophoretic coating

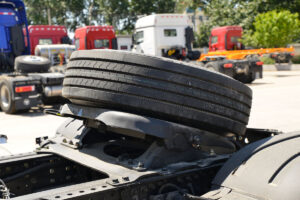

16. M-50 (E-MARK) fifth wheelM-50 (E-MARK) fifth wheel

MEASUREMENTS

Overall Size6835×2490×3800mm
Front/Rear Track2020mm/1844mm
Wheelbase3800mm
Ground Clearance360mm

WEIGHTS

Gross Vehicle Weight19500kg
Tare / Curb Weight7870kg
Loading Weight11700kg
Front/Rear Axle Rating6500kg/13000kg

Chassis Truck Line

ModelFOTONGTL42-1546460 LHD

CAB

Make/ModelFOTONGTL-2400
Cab TypeSleeper Cab
Cab RoofHigh
Cab Width2480mm
Number of Seats2
ConstructionAll-steel four-point airbag suspension cab
Instrument & ControlsElectric rearview mirror, electric doors and windows, central lock
Driver SeatsAirbag
Equipment & DeviceElectric lift, A/C, EGR, exhaust brake, radio/cassette recorder

ENGINE

Make/ModelCummins/ISGe5-460
Output Power/Speed331kW(450HP)/1900rpm
Max Output Torque/Speed2200N·m/1000-1500rpm
Cylinders6 cylinders in line
Emission RegulationEURO 5

CLUTCH

Make/Model
TypeSingle dry disc type diaphragm spring
Diameter430mm

TRANSMISSION

Make/ModelZF/12TX2420TD
TypeZF TraXon 12HT AMT
Gear Numbers12F + 4R
SynchronizerYes

STEERING

Make/ModelBOSCH/8098
TypeRecirculating ball power-assisted adjustable column
PositionLeft hand side

CHASSIS

TypeU-profile partial ladder type with riveted cross member
Module900×80×225-280×80 – (6+1)
Frame Structure2 layers standard body unit mounting
SuspensionFront suspension: Vertical steel plate spring 4 + cylinder shock absorber + lateral stabilizer / Rear suspension: Vertical steel plate spring 4 + 3

AXLE

Front Axle Make/Model
Front Axle TypeSteering axle
Front Axle Rating6500kg(6.5T)
Rear Axle Make/Model
Rear Axle TypeDriving axle
Rear Axle Rating13000kg(13T)
Rear Axle Ratio3.364

ELECTRIC

Working Voltage24V, negative grounded
Alternator
Battery Type

BRAKE

Service BrakeDual circuit compressed air brake
Parking BrakeSpring energy compressed air operating on rear wheel
Auxiliary BrakeEngine exhaust brake
