80T Hydraulic Gooseneck Detachable Lowboy Trailer

The Gooseneck detachable lowboy trailer is engineered for the efficient transportation of oversized and non-disassembled heavy equipment. It features a detachable gooseneck that separates from the lowboy. This design creates a loading ramp, allowing equipment such as bulldozers and excavators to be loaded and unloaded directly from the front, eliminating the need for a large crane. The hydraulic detachment system ensures effortless and precise operation, enhancing both safety and efficiency during loading and unloading. Constructed from high-tensile steel, the trailer offers exceptional structural integrity and a formidable 80-ton payload capacity. The low-profile deck design significantly lowers the center of gravity of the cargo, ensuring superior stability and safety during transit. By virtue of its unique separable structure, it perfectly solves the loading and unloading challenges of super-heavy machinery with limited climbing ability.
Category:

Gooseneck Detachable Lowboy Trailer Specifications

HS CODE: 8716390000 (Detachable gooseneck lowboy trailer)

Truck Make/Model: CECTRUCK/C5048TDP

Cab Chassis Make/Model: –

Engine Make/Model: –

Transmission Make/Model: –

Payload weight: 80 T

Main Components: Hydraulic cylinder for controlling gooseneck lifting and lowering

Performance: –

Electric/Hydraulic Power Unit: –

BRIEF

The Gooseneck detachable lowboy trailer is engineered for the efficient transportation of oversized and non-disassembled heavy equipment. It features a detachable gooseneck that separates from the lowboy deck. This creates a loading ramp, allowing equipment such as bulldozers and excavators to be loaded and unloaded directly from the front, eliminating the need for a large crane. The gradual inclination system creates an entry angle of less than 8 degrees. Its low-deck design significantly lowers the center of gravity of the cargo, ensuring superior stability and safety during transit. By virtue of its unique separable structure, it perfectly solves the loading and unloading challenges of super-heavy machinery with limited climbing ability.

FEATURES

Our Advantages / SpecialReference Pictures

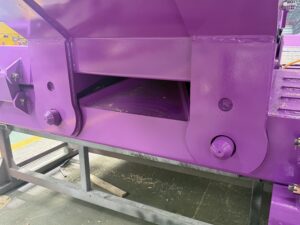

1. Durable double-layer latch platesDurable double-layer latch plates
2. Pin lock for connecting the gooseneck and the deckPin lock for connecting the gooseneck and the deck

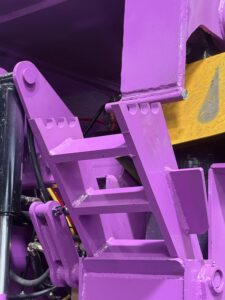

3. Ride height cam blockRide height cam block

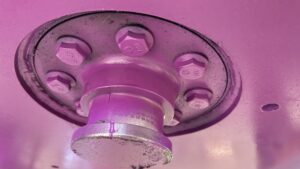

4. 90# bolt in kingpin90# bolt in kingpin
5. Hydraulic cylinder for controlling gooseneck lifting and loweringHydraulic cylinder for controlling gooseneck lifting and lowering

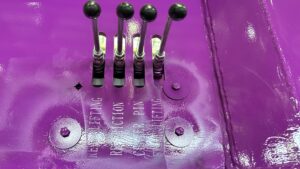

6. Control levers(rear lifting,restriction,center pin,front lifting)Control levers(rear lifting,restriction,center pin,front lifting)

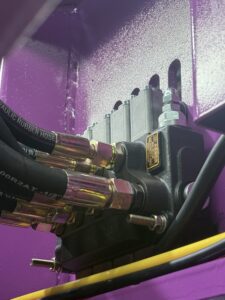

7. Multi-section valveMulti-section valve

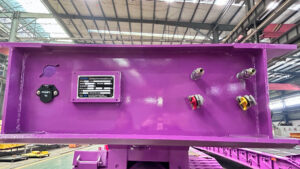

8. 7-pin sockets and gladhands7-pin sockets and gladhands

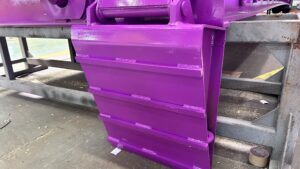

9. Loading ramps for easy loading and unloadingLoading ramps for easy loading and unloading

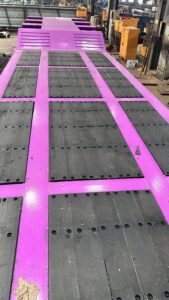

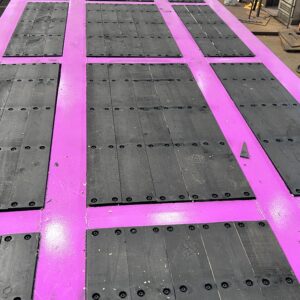

10. Wood deck floorWood deck floor
11. D-rings and chain slotsD-rings and chain slots

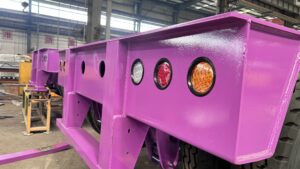

12. LED lightsLED lights

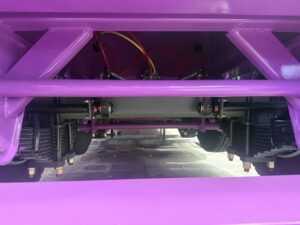

13. Mechanical leaf spring suspensionMechanical leaf spring suspension
14. FUWA 16Tx3 drum axles with ABSFUWA 16T-3 drum axles with ABS
15. 12R22.5 18PR radial tires12R22.5 18PR radial tires

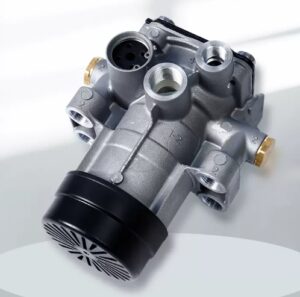

16. WABCO relay valveWABCO relay valve

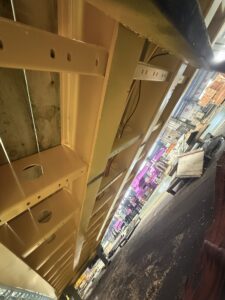

17. Double main beam structure frame with high load-bearing capacity and high stabilityDouble main beam structure frame with high load-bearing capacity and high stability

MEASUREMENTS

Overall Size16000×2600×300-300-1895mm
Front/Rear Track/1950mm
Front/Rear Overhang/1090mm
Wheelbase1310mm
Ground Clearance350mm

WEIGHTS

Gross Vehicle Weight96.3 T
Tare / Curb Weight16.3 T
Loading Weight80 T
Front/Rear Axle Rating/16 T×3

CAB

RemarksNo specific data provided

ENGINE

RemarksNo specific data provided

TRANSMISSION

RemarksNo specific data provided

STEERING

RemarksNo specific data provided

CHASSIS

RemarksNo specific data provided

AXLE

RemarksNo specific data provided

ELECTRIC

RemarksNo specific data provided

BRAKE

RemarksNo specific data provided

BODY UNIT/STRUCTURE

ItemDescription
1Tare weight: 16000kg
2Payload weight: 80000kg
3GWV: 96300kg
4Overall Length×Width×Height: 16000×2600×300-300-1895mm
5Longitudinal Beam: Top flange 16mm; Middle flange 8mm; Bottom flange 20mm
6Axle: FUWA 16T-3pcs drum axles with mechanical adjusting arm; P shape straight spindle; Q235 heavy duty brake integrated with powerful return spring
7Wheel Track: 1950mm
8Suspension: JMK 3-axle Mechanical American type Suspension, 70mm Pin Diameter
9Leaf spring: 6 sets of leaf springs, 10pcs×16mm (thickness) ×100mm(width)
10Tire: Factory standard 12 pcs, 12R22.5 18PR
11Wheel rim: 12 pcs, 22.5×9.0
12Kingpin: Factory standard 98# bolt in kingpin
13Floor: Wood floor, thickness 50mm
14Braking System: ABS, WABCO 6-port Relay Valve, 2 unit Air tank(s)
15Painting: Epoxy Primer+Polyurethane Finish paint, paint film color: Purple + Black
16Electric System: 24V voltage; 2 pints of PHILIPS 7-pin sockets
17Light: Factory standard LED lights; 8 lights 2 rear lights
18Hydraulic System: China brand (local brand), Front gooseneck hydraulic adjustment
