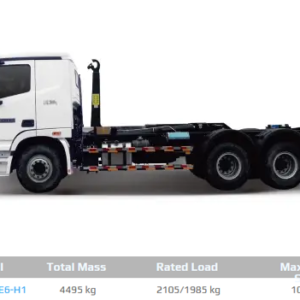

BJ5042ZXXE6-H1 Roll-off Garbage Truck
BJ5042ZXXE6-H1 Roll-off Garbage Truck

BJ5042ZXXE6-H1 Roll-off Garbage Truck

BJ5042ZXXE6-H1 Roll-off garbage truck also known as hook arm truck, pull arm hook; Can be equipped with a number of truck, with self-unloading function, hydraulic operation, convenient dumping, simple operation, suitable for towns, streets, industrial and mining enterprises, residential towns bagging, bulk household garbage collection, transfer operations of special vehicles.
The truck can pull the garbage in the garbage box and the garbage box together to the car to carry away, but also can be self-unloading operation, reduce the labor intensity of workers. The collection and transportation mode of the garbage truck is widely used in the world at present??greatly reducing the cost and space of the equipment. The functions of the special device are powered by the automobile engine, which is realized manually or electronically by the hydraulic mechanism. The truck body adopts high quality carbon steel plate completely sealed welding structure, which has the advantages of high strength, light weight and no secondary pollution.



SKU: BJ5042ZXXE6-H1 Category:
  • Foton new truck chassis: European technical standards of production, bearing capacity, low fuel consumption, low noise, smooth driving, for the garbage truck design of the special chassis.
  • The hydraulic pipe adopts the international general DIN24 ?? standard, the hydraulic pipe adopts galvanized precision seamless steel pipe, the use of Eton Walform extrusion molding, CNC bending molding, the use of three-stage filtration system, to ensure the cleanliness of the hydraulic system above NAS9 level.
  • The truck electronic control system adopts the integrated design of electronic control system.
  • Harbin Anhui QuanChai Q23 diesel engine, rated power of 85 kW, rated speed of 3000 RPM, emissions meet the national VI standards, strong power, low noise, more fuel efficient, stable and reliable performance.
Truck Model:BJ5042ZXXE6-H1
Total Mass:4495 kg
Rated Load:2105/1985 kg
System Pressure:21 MPa
Power:85 kW
Wheelbase:2850 mm
Basic Turck(L * W * H):4860/4755/4805 mm * 1910 mm * 2160/2110 mm
Top Speed:105 km/h
Displacement:2300 ml
Tire Specifications:6.50R16LT 10PR
Max. Approach Angle:20 ??
Max. Departure Angle:28 ??
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

Foton BJ5042ZXXE6-H1 Roll-off Garbage Truck Data Sheet

ModelBJ5032ZXXE6-H1Total Weight 4495 kgEquipment Weight 2260/2380 kg
Rated Load 2105/1985 kgTruck Length 4860/4755/4805 mmTruck Width 1910 mm
Truck Height 2160/2110 mmMax. Approach Angle 20 ??Max. Departure Angle 28 ??

Chassis Argument of Foton BJ5042ZXXE6-H1 Roll-off Garbage Truck

Model SpecificationsBJ1045V9JB5-54Wheelbase 2850 mmNumber of Axes2
Top Speed 105 km/hTire Quantity6Tire Specifications6.50R16LT 10PR
Engine ModelQ23-115E60Displacement 2300 mlPower 85 kW
????END????

Foton BJ5042ZXXE6-H1 Roll-off Garbage Truck Bodywork Parameter

Outside Width of Truck Body Track 950 mmDistance from Hook Arm to Rear Axle Center 2200 mm
Car Body Track Clearance Height??115 mmMatch the Car Body Size 3 m3
System Pressure 21 MPaLifting Capacity 1.5 TTipper Tilt Angle 47 ??
Height of Hook Arm 1015 mmSelf-Unloading Time ??60 sLoading and Unloading Time ??60 s
????END????

Optional Accessories of Foton BJ5042ZXXE6-H1 Roll-off Garbage Truck

1. Reversing Camera2. Wireless Remote Control3. Internet of Truck
????END????
