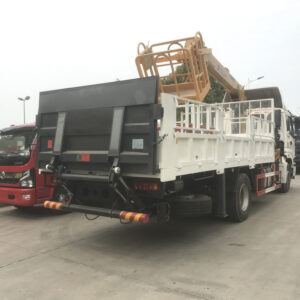

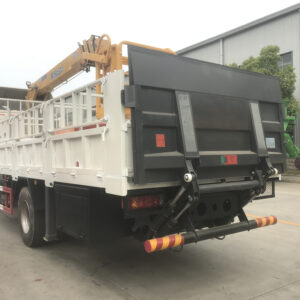

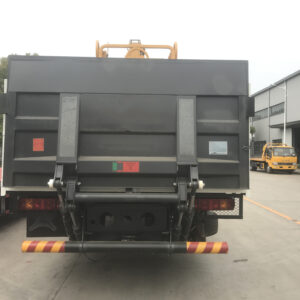

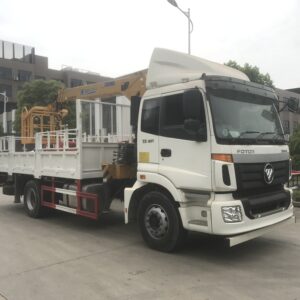

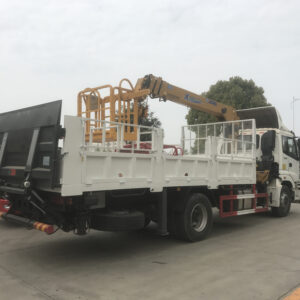

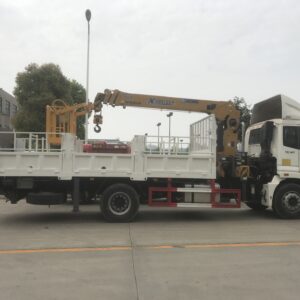

FOTON STon XCMG Telescopic Boom Crane
HS CODE: 8704224000
Truck Make /Model: FOTON/AUMAN 4×2
Cab Chasis MakeMode: FOTON/TX1627
Engine MakeMode: CUMMINS/SDe270 40
Transmission MakeMode: FAST/8IS105TA
Main Component: Working basket
Capacity: Lifting capacity 5000kg
Performance: Hydraulic tailgate
BRIEF
This truck mounted crane is a reliable equipment with excellent operational stability, making it suitable for urban construction, equipment installation, maintenance work, and logistics support.
The vehicle is equipped with the XCMG telescopic boom crane, offering flexible movement and precise control. The crane maintains compact dimensions during transportation. A work basket is mounted on the rear cargo area, ensuring safe and efficient work with a scientific design.
With its multi-functional design, this truck integrates lifting, aerial work, and cargo transport into one unit, reducing operating costs and increasing utilization. It is an ideal choice for municipalities, utility companies, construction contractors, and service providers seeking a practical and cost-effective all-in-one working vehicle.
FEATURES
| Item | Our Advantageous, Special |
|---|---|
| 1 | Standard Features |
| 2 | Left hand drive |
| 3 | Air conditioner |
| 4 | Sleeper cab(with one bed) |
| 5 | FAST 8-speed manual transmission |
| 6 | CUMMINS 270HP engine |
| 7 | Cargo box |
| 8 | 4 telescopic boom section |
| 9 | Automatic hook retraction |
| 10 | Overwind protection device |
| 11 | Front H-type outriggers |
| 12 | Integral slewing mechanism |
| 13 | Hydraulic oil |
| 14 | Floor operations |
| 15 | Boom angle indicator |
| 16 | Finish painted |
| 17 | Optional Features |
| 18 | XA130 Hydraulic Oil (Low Temperature) |
| 19 | Wireless Remote Control |
| 20 | Radiator |
| 21 | Load Moment Limiter |
| 22 | Overload Protection Relief Valve |
MEASUREMENT
| Overall Size | 9000×2550×3660mm | Front/Rear Overhang | 1365/2635mm |
| Wheelbase | 5000mm | Front/Rear Track | – |
| Ground Clearance | – | – | – |
WEIGHTS
| Gross Vehicle Weight | 15500kg | Tare /Curb Weight | 9375kg |
| Loading Weight | 5770kg | Front/Rear Axle Rating | 5500/10000kg |
CHASSIS TRUCK
Chassis Truck Line
FOTON/ETX/4X2 ISD270E3 LHD
CAB
Cab Model
TX1627
Cab Type
Sleeper Cab
Cab Roof
Standard
Cab Width
2050mm
No. of Seats
2
Construction
Frontal, with suspension and foldable
Instrument & Control
AM/FM/USB Radio
Driver Seats
Driver’s seat with pneumatic suspension, adjustable.
Tilt
Front Tiltable
Equipment & Device
A/C, Radio, Cassette record
ENGINE
Make/Model
CUMMINS/ISDe27040
Output Power/Speed
198KW(270HP)/2500rpm
Max. Output Torque/Speed
970N·m/1400rpm
Displacement
6.7L
Engine Type
6-cylinder in-line, turbocharged intercooled, diesel engine
Emission Regulation
EURO3
CLUTCH
Make/Model
Hydropneumatic actuator diaphragm
Diameter
Φ430mm
TRANSMISSION
Make/Model
FAST/8JS105TA
Type
Manual
Gear Numbers
8F+2R
Synchronizer
Equipped
STEERING
Make/Model
–
Type
Recirculating ball, powered adjustable column
Position
Left Hand Side
CHASSIS
Type
U-profile parallel ladder cold riveted cross
Module
–
Frame Layer
2 layers standard body unit mounting
Suspension
Mechanical, Semi-elliptic Leaf Springs 10/10+8
AXLE
Front Axle Make/Model
–
Front Axle Type
Steering Axle
Front Axle Rating
5500kg
Rear Axle Make/Model
–
Rear Axle Type
Driving Axle
Rear Axle Rating
10000kg
Rear Axle Ratio
4.875
ELECTRIC
Working Voltage
24V Negative Grounded
Starter
24V
Alternator
–
Battery Type
–
BRAKE
Service Brake
Dual circuit compressed air brake
Parking Brake
Spring energy, compressed air operating on rear wheel
Auxiliary Brake
Engine exhaust brake
Others
–
BODY UNIT SUPERSTRUCTURE
| Item | Description |
|---|---|
| 1 | Max lifting moment: 12.5 T.M |
| 2 | Max lifting capacity: 5000kg |
| 3 | Max hydraulic outreach: 11m |
| 4 | Max lifting height: 13m |
| 5 | Slewing angle: 360° |
| 6 | Installation space: 900mm |
| 7 | Max operating pressure: 22MPa |
| 8 | Recommended pump capacity: 40L/min |
| 9 | Recommended power: 18 KW |
| 10 | Recommended pump capacity: 40L/min |
| 11 | Oil tank capacity: 90L |
| 12 | Dead weight: 2200kg |
