BRIEF

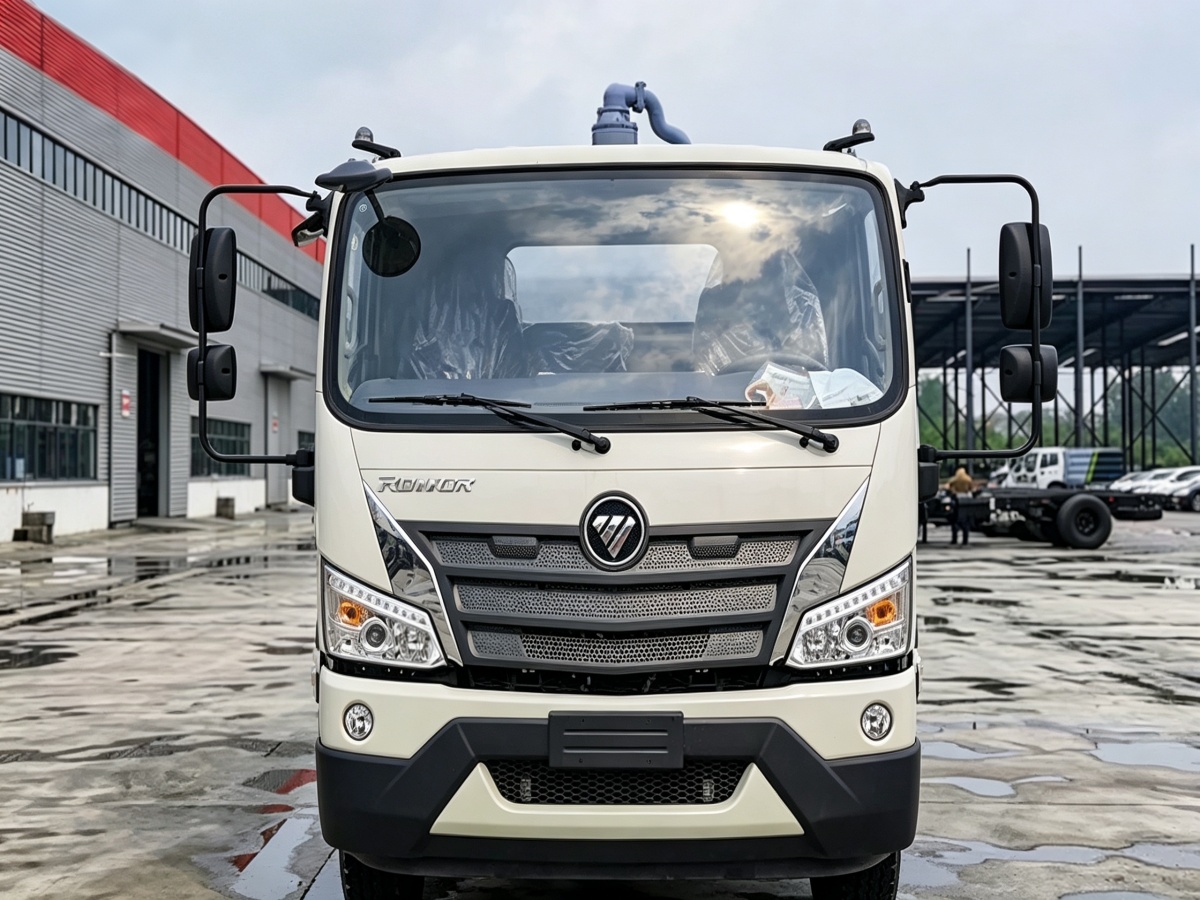

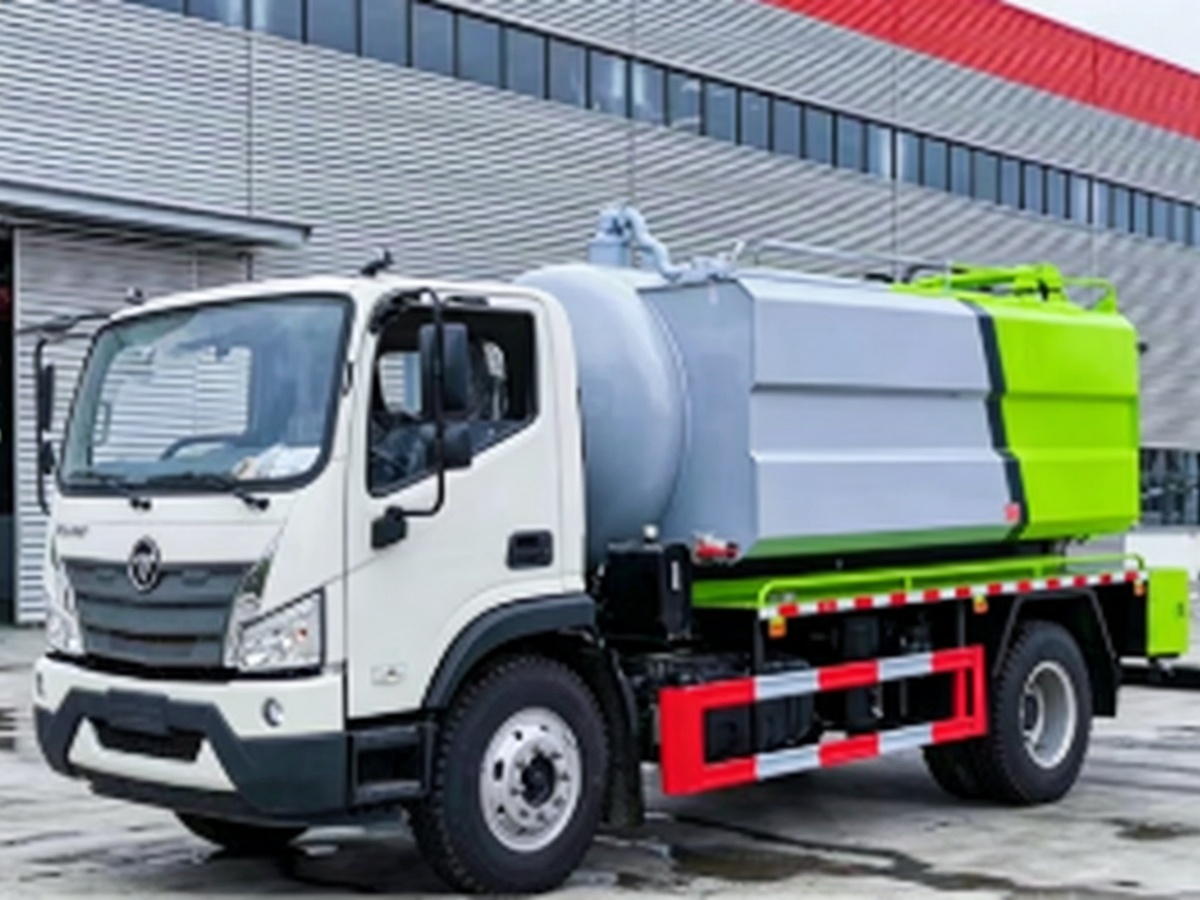

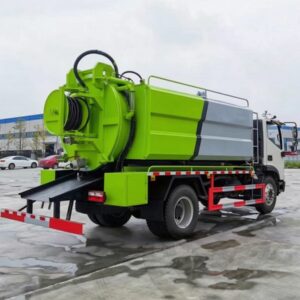

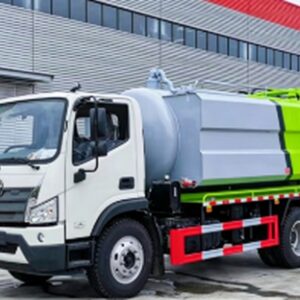

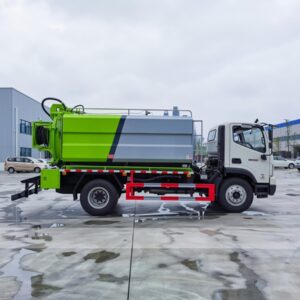

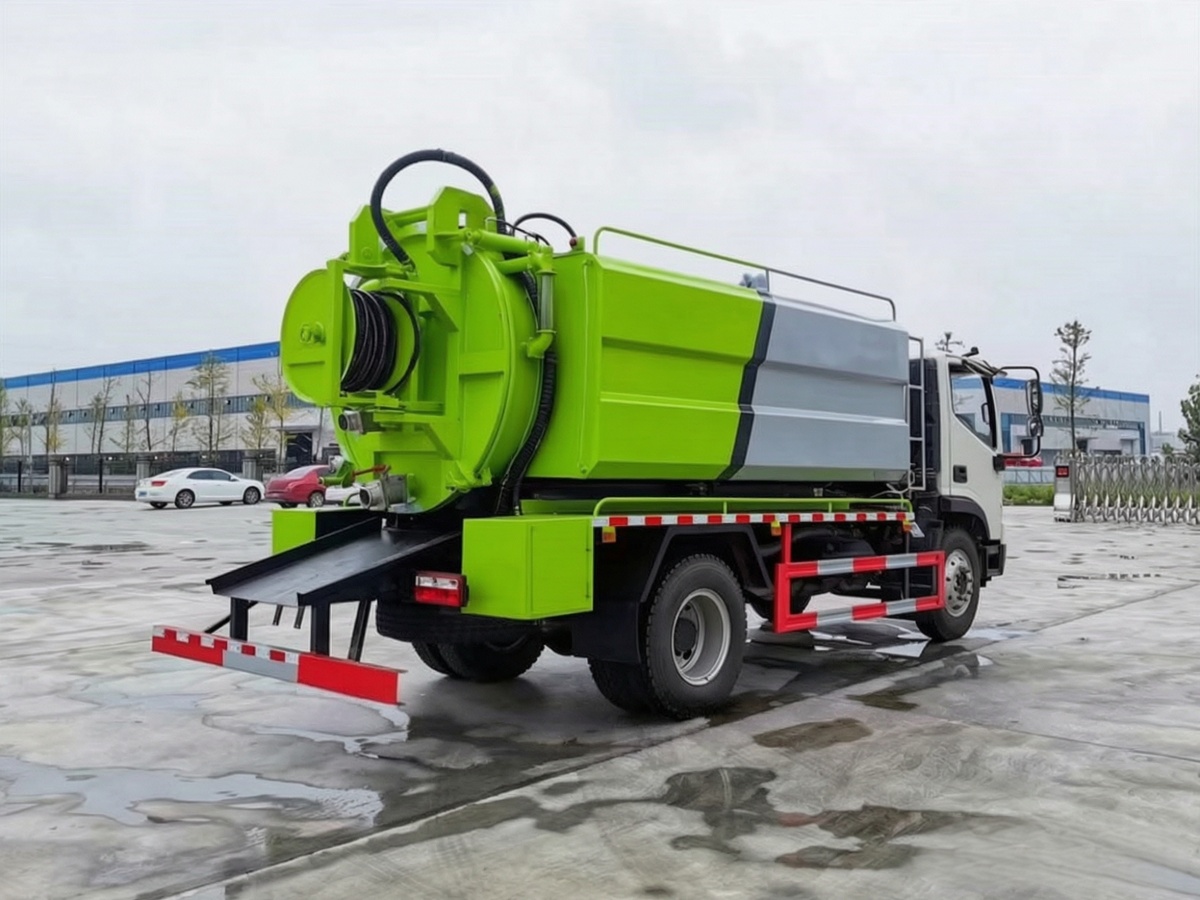

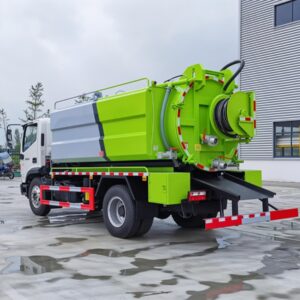

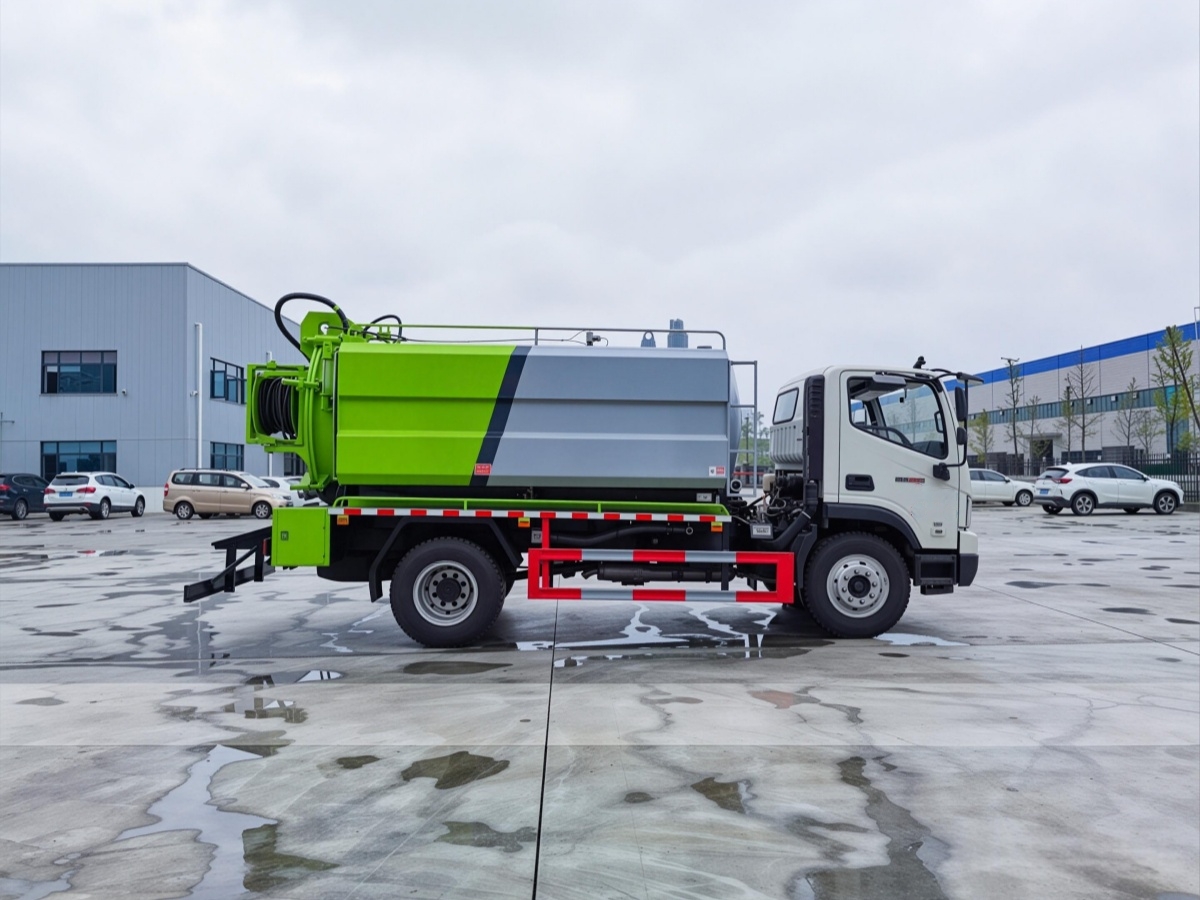

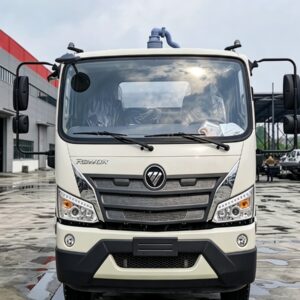

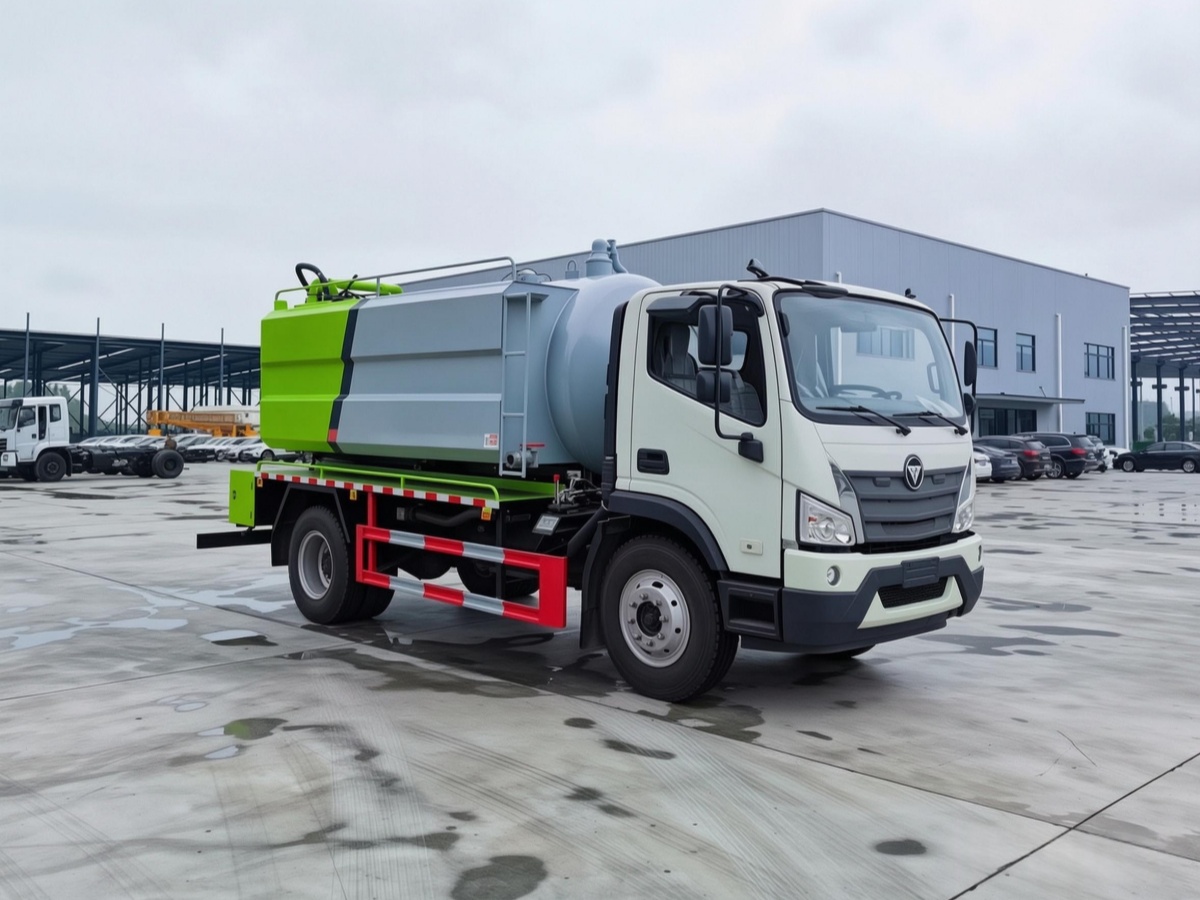

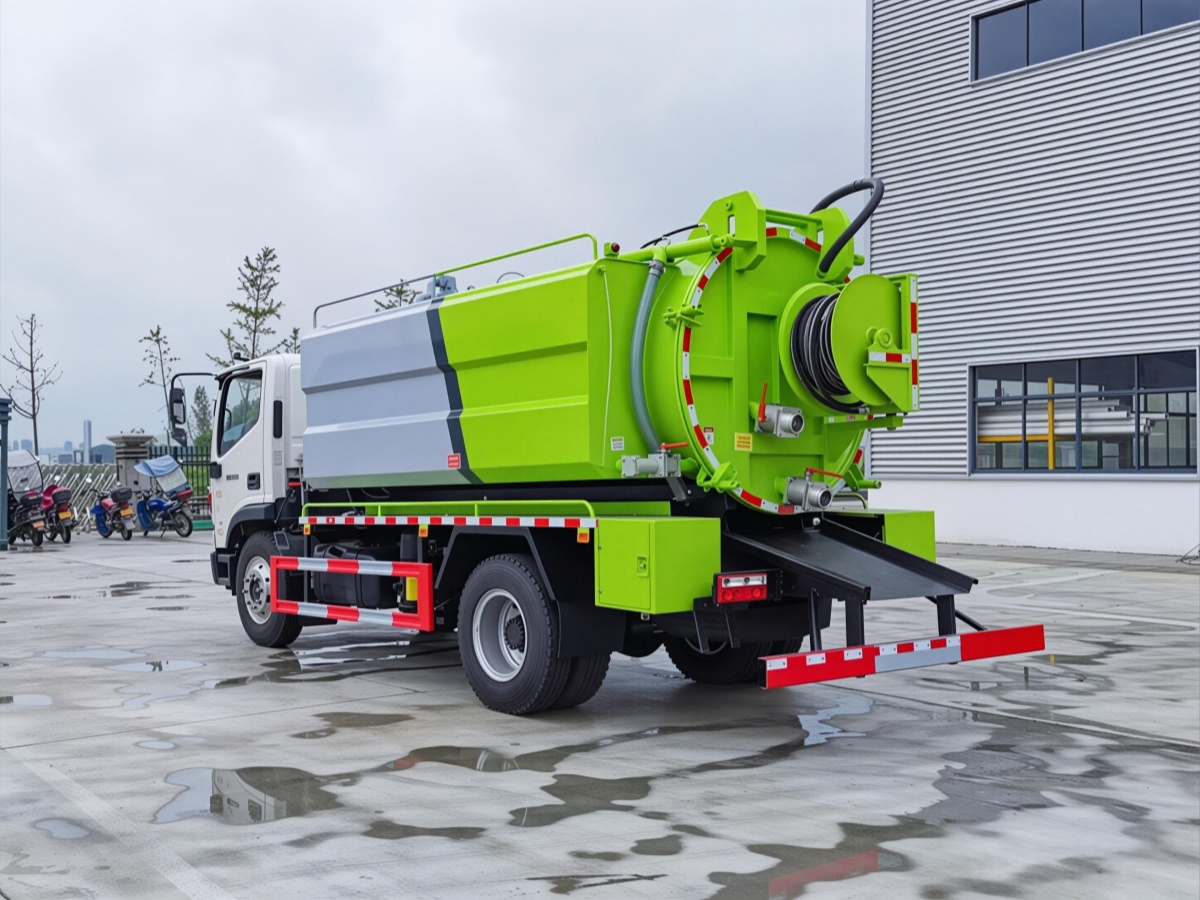

This Foton 10000 Liters High Pressure Jetting Sewage Truck is a professional and customized municipal engineering sanitation vehicle, specially developed for sewer dredging, sewage suction, sediment cleaning and pipeline high-pressure jetting operations. Built on reliable Foton mature chassis, the whole machine features reasonable structural design, stable power output and strong working adaptability, widely applicable for daily maintenance of urban municipal facilities, drainage systems and water conservancy projects.
The vehicle adopts a mature power transmission system driven by the chassis engine. The engine transmits power to the transfer case, which further drives the high-efficiency vacuum pump to operate stably. During sewage suction work, the vacuum pump continuously forms stable negative pressure inside the 10000-liter large-capacity sewage tank, creating a pressure difference between the tank body and the external atmosphere. This powerful negative pressure can quickly suck sewage, sludge, sediment and various impurities from rainwater wells, sedimentation wells, urban ditches and river channels into the sealed tank body, realizing efficient dirt collection and sewage extraction.
Equipped with a high-power high-pressure cleaning pump and professional high-pressure water pipeline system, the truck supports high-pressure jetting cleaning function. It generates high-speed and high-pressure water flow to thoroughly flush blocked pipelines, remove hardened dirt, grease and sediment adhesion inside drainage pipes, effectively solving pipeline blockage and poor drainage problems. It perfectly integrates sewage suction and high-pressure jetting dredging in one equipment, realizing dual functions of dirt collection and pipeline cleaning.
Featuring large storage capacity, stable negative pressure suction force and strong flushing pressure, this multi-functional sewage truck realizes one-stop operation without secondary manual cleaning. With sealed tank design to avoid sewage leakage and environmental pollution, it ensures safe and environmentally friendly construction. Supported by complete factory inspection and 1-year warranty service, it is a high-efficiency and reliable professional solution for municipal sewage cleaning, pipeline dredging and water conservancy sanitation work.
Features
- 1. Dedicated Foton chassis for stable performance
- 2. 3800mm wheelbase for flexible and stable driving
- 3. Weichai 190HP engine for powerful power output
- 4. 6/8-speed selectable gearbox for smooth shifting
- 5. 900R20 steel tires for wear-resistant travel
- 6. Built-in air conditioner for comfortable operation
- 7. 4m³ clean water tank for sufficient flushing water
- 8. Pinfu 215 high-pressure pump for efficient flushing
- 9. 8m³ sewage tank for large-capacity storage
- 10. SK-12 vacuum pump for stable negative pressure suction
- 11. Air blowing function for pipeline residue removal
- 12. Intercommunicating tank for flexible water allocation
- 13. Full liquid unloading for fast sewage discharge
- 14. Press-fitting discharge for zero tank residue
- 15. Integrated suction and flushing for multi-function use
- 16. Engine PTO system for stable pump operation
- 17. Fully sealed tank for leakage prevention
- 18. Wide adaptability for various municipal scenarios
- 19. Modular design for easy maintenance
- 20. Full mechanization for high efficiency and cost saving
Specification
| Chassis | |
| Size | 8,080×2,500×3,130mm |
| GVW/Curb Weight | 18,000kg/8,850kg |
| Wheelbase | 3,800mm |
| Front/Rear Axle | 6.5T/11.5T |
| Tire | 900R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WD6.210E32/210hp/Euro3 |
| Transmission | |
| Make/Model | FAST/Wanliyang 6 gears |
| Gears | 8F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Capacity | 10,000L |
| Shape | Cylindrical |
| Material | Q235B Carbon Steel |
| Thickness | Shell Cover 8mm, Tank Body 6mm |
| Vacuum Pump | |
| Type | Water Cooling or Air Cooling |
| Brand | Weilong, JUROP, MORO, BP |
| Flow Rate | 6,000~35,000LPM |
| Ultimate Pressure | -97000Pa |
| Suction Hose Length | 8 meters + optional 4 meters |
| High-Pressure Jetting Pump | |
| Drive-By | PTO |
| Working Pressure | 16-24Mpa |
| Water Flow Rate | 75~275LPM |
| Reel Hose | 80 meters + optional 40 meters |
| Water Tank | Front or side installed |
| Basic Equipment | Vacuum pump, ball valve, suction pipe, pressuremeter, inspect windows, cleaning systems, hoist base, oil-water separators, overflow valve, etc. |
| Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |
