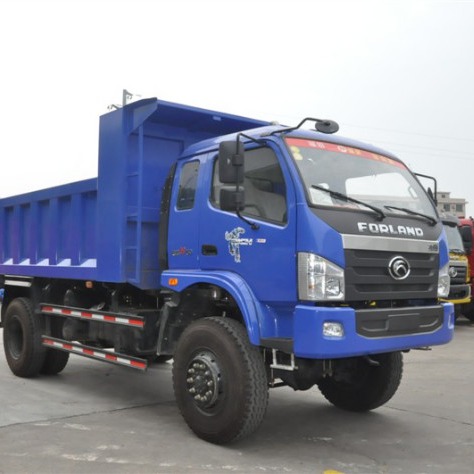

Foton 5ton Heavy Duty Dump Truck Small Tip Truck

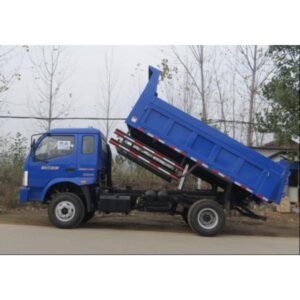

Foton 5ton Heavy Duty Dump Truck Small Tip Truck - Image 2
Foton 5ton Heavy Duty Dump Truck Small Tip Truck - Image 3
,

Foton 5ton Heavy Duty Dump Truck Small Tip Truck

• Overall Dimension: 6800×2400×3200 mm

• Inner Cargo Box Dimension: 4200×2300×500 mm

• Gross Vehicle Mass: 31000 kg

• Curb Weight: 12500 kg

• Cabin: One and a half row cab

• Drive Type: 4×2 LHD • Axle Quantity: 3 axles

• Tire Spec: 8.25R20, 6+1 tires

• Max Speed: 86 km/h

• Brake System: Air brake with ABS

• Engine: Cummins, 160HP, Diesel

• Emission Standard: EURO 3

Categories: ,

Overall size: 6800x2400x3200(mm)
Box capacity: 4200x2300x500(mm)
total mass: 31000 (kg)

Curb quality: 12500(Kg)

Cab:one and half cab
ABS: with
Axle load: 7/18(kg)

Number of axes：3
Maximum speed：86(km / h)

Number of springs：9/11 + 8
Drive type：4*2 LHD
Number of tires：6+1
Tire specifications：8.25R20

Front /Rear track：1900/1810(mm)
Brake：Air brake

Fuel Type：diesel oil
Emission Standard：EURO 3
Engine brand：CUMMINS
Engine horsepower：160HP
