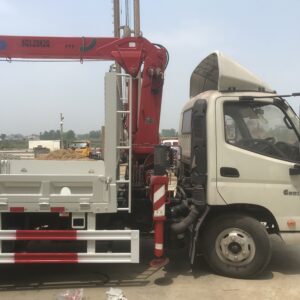

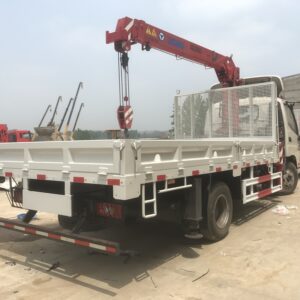

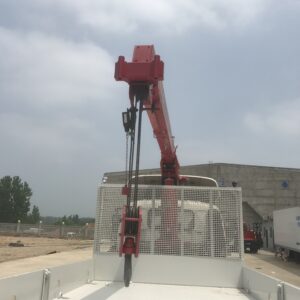

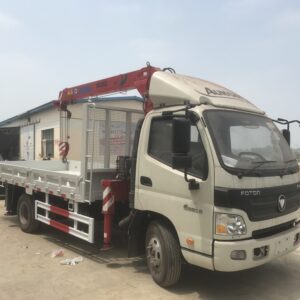

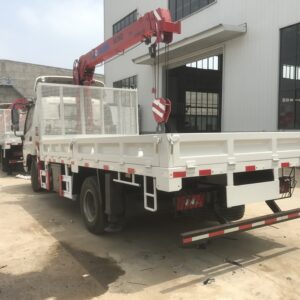

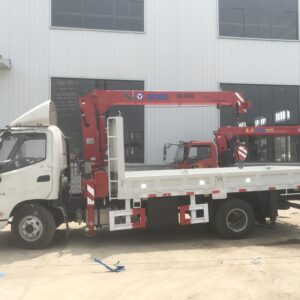

FOTON Lorry Mounted Telescopic Crane
BRIEF
Model AUMARK-C33
Truck Size 5875×2030×2230mm
Carrier Size 4170*2100*400mm
Wheelbase 3360mm
Crane SQ3.2SK2Q
Whole Vehicle Main Parameters
| Vehicle model | AUMARK-C33 |
| Cabin | Single row/W1995/right rudder |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm: 5875×2030×2230 Wheel base(mm): 3360 |
| Weight data | Curb weight(kg): 2600 Gross vehicle weight（kg）: 6495 Persons in cab: 3 |
| Whole vehicle main performance | Max. speed（km/h）: 95 |
| ENGINE | Model: F3.8s3141 Emissions standards: EuroⅢ Displacement（L）: 3.76 Rated Power（kw/rpm）: 105 Max torque （N.m/rpm）: 450 |
| Gearbox | Model: 6TS55 |
| Front axle | Type/Mainreducetion ratio: 2.2T |
| Rear axle | Type/Mainreducetion ratio: 5.5T/4.11 |
| Suspension | Front suspension/Leaf spring number: 3+1 Rear suspension/Leaf spring number: 6+7 |
| Brake system | Service brake: Drum pneumatic braking Parking brake: Central drum brake Auxiliary brake: Engine exhaust brake |
| Wheels and tyre size | 6+1(7.00R16) |
Technical parameters of truck mounted crane
| Crane requirements | Type/Position: Straight arm/front crane: SQ3.2SK2Q Rotation angle: 360°Full rotation |
| Subframe | Material/plate thickness: Longitudinal beam :Q345/10mm Beam: Q345/8mm |
| Cargo box | size: 4170*2100*400mm |
