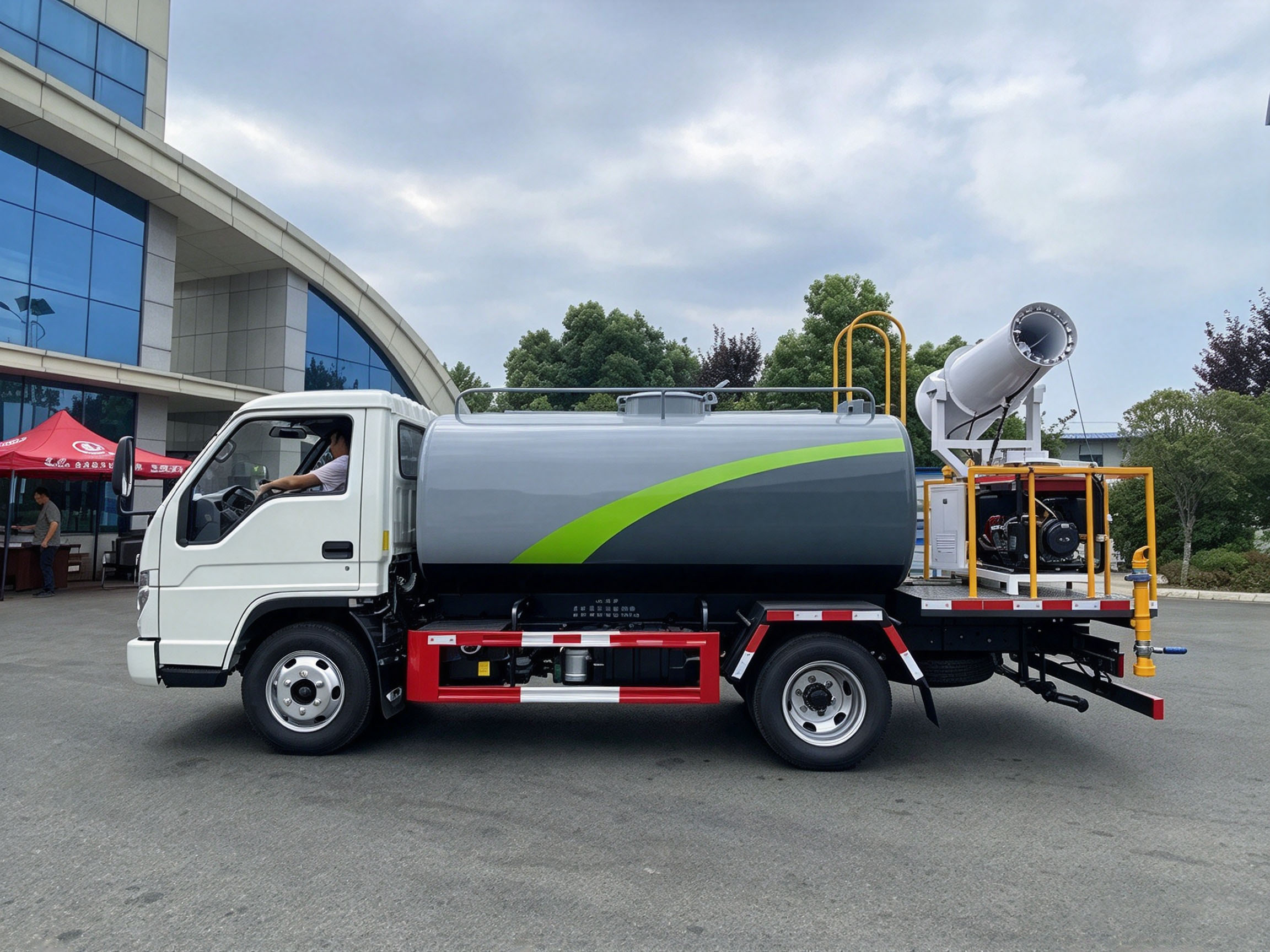

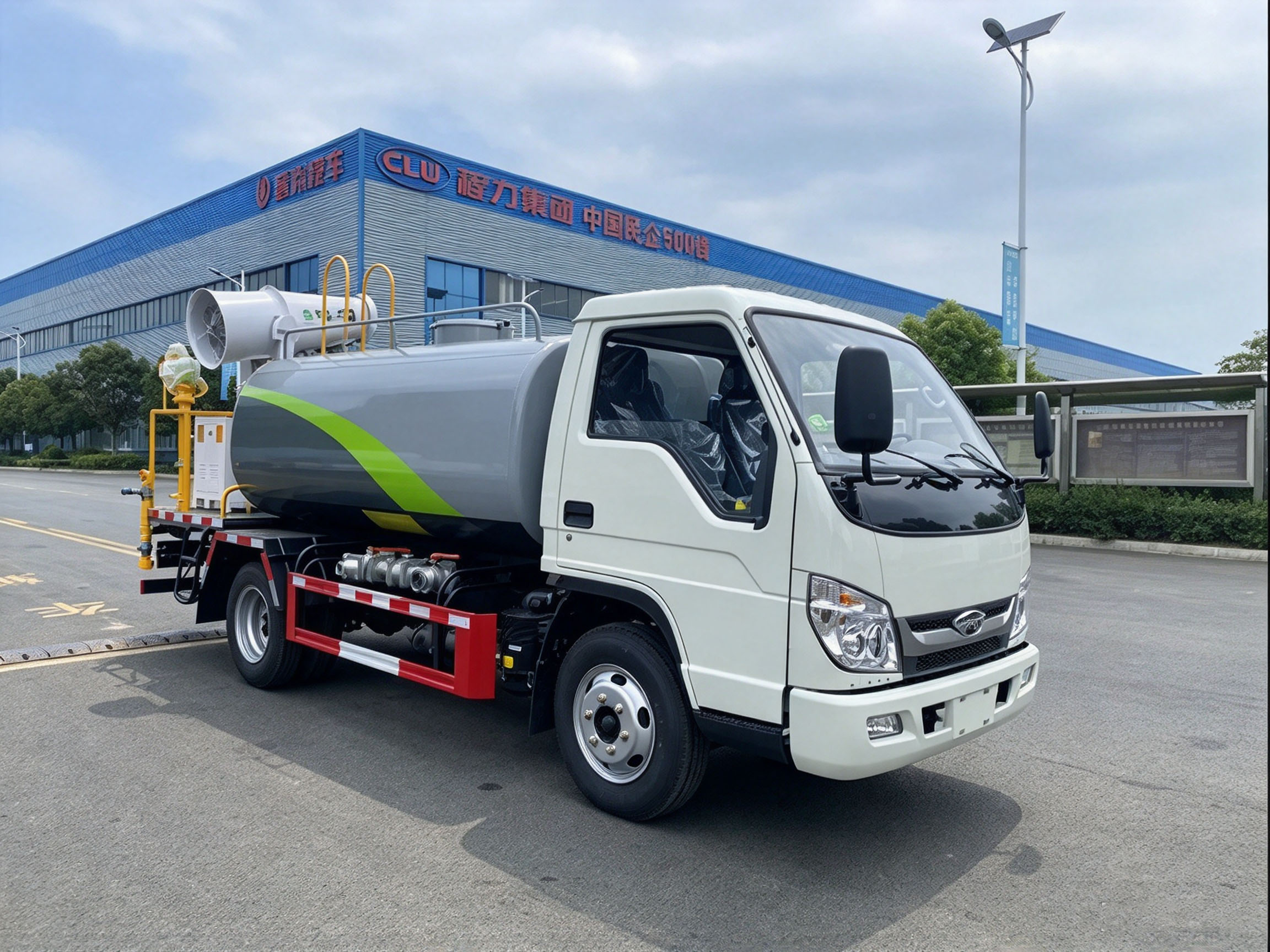

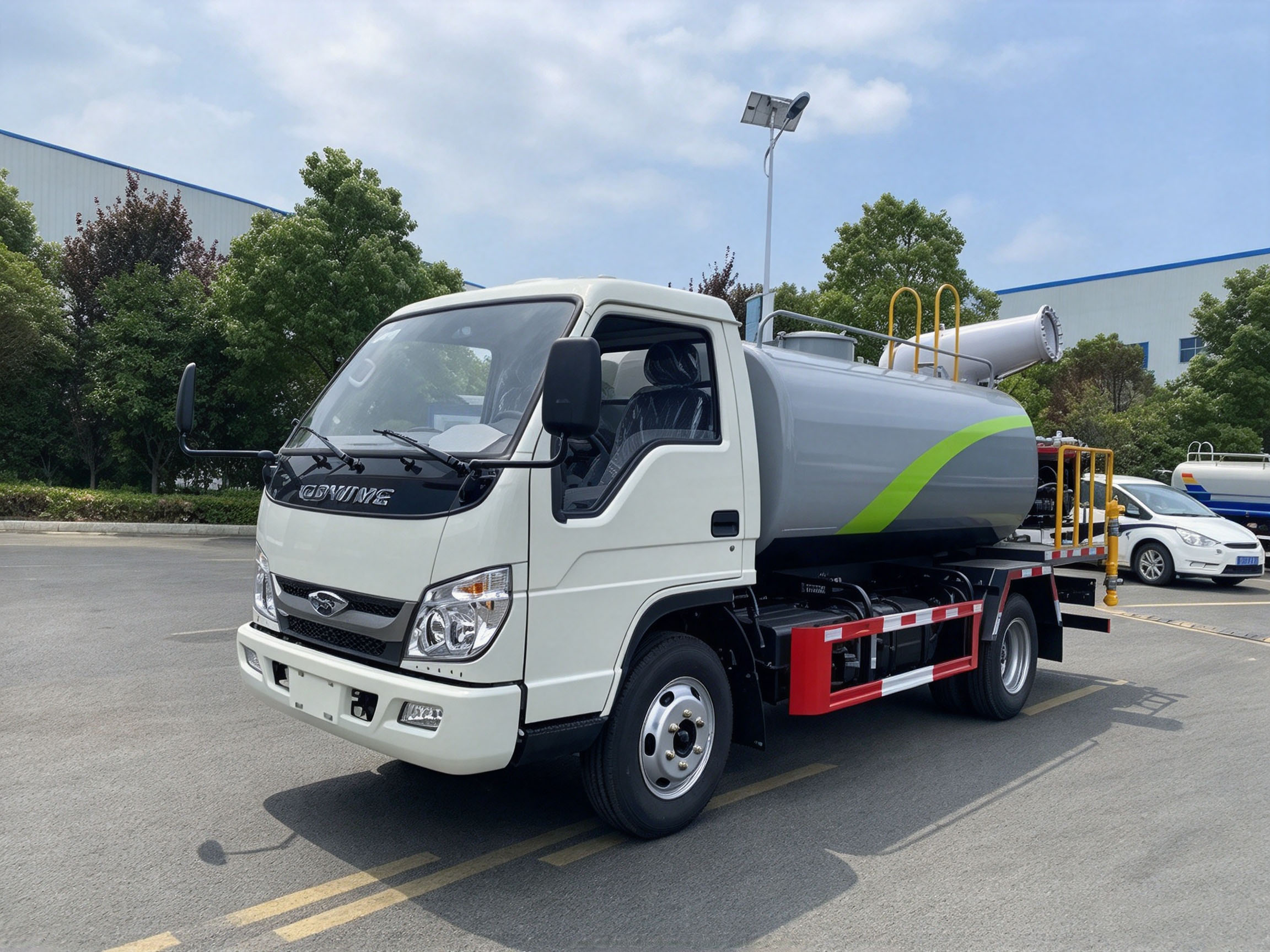

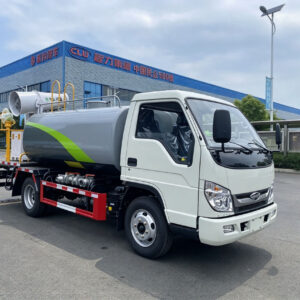

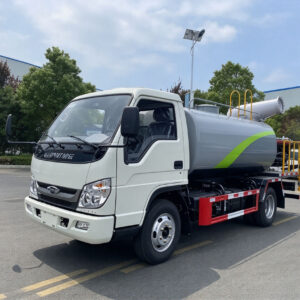

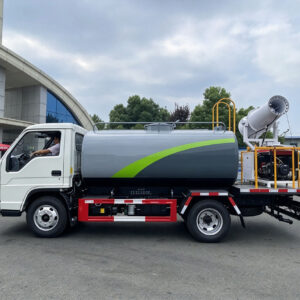

Foton 2.5CBM Water Sprinkler Truck

Brief

This Foton 2.5CBM Water Sprinkler Truck built on Foton Forland chassis is a versatile sanitation and greening vehicle engineered for urban and industrial environmental maintenance. Powered by reliable Quanchai 115HP engine, the truck delivers stable power output for long-hour continuous operation.

It integrates multiple practical working functions, including road flushing, wide-area dust suppression, green belt irrigation, and pesticide spraying. It also supports emergency water transportation and fire response to meet diverse site demands. Equipped with an adjustable water cannon, operators can flexibly switch spraying patterns from fine mist to heavy jet to match different working scenarios.

The tank body adopts robust carbon steel construction with reinforced plate thickness and anti-leak standardized pipeline design, effectively resisting corrosion and preventing liquid leakage for extended service life. Premium pipe fittings are adopted with one-piece casting technology, eliminating welding seams and reducing leakage risks, while ensuring easy maintenance and part replacement. The anti-slip rear working platform offers safer operation for crews.

This vehicle is fully certified, complying with international quality standards. It is widely suitable for city street cleaning, construction site dust control, mine area sanitation, and landscaping irrigation, bringing efficient and low-maintenance environmental management solutions for global clients.

Features

Multi-functional design for dust suppression, road flushing, greening irrigation and pesticide spraying
Supports emergency water delivery and auxiliary fire fighting for unexpected scenarios
Foton Forland proven chassis delivers stable and reliable driving performance
Powerful Quanchai 115HP engine ensures steady power for continuous field work
Versatile adjustable water cannon with flexible spraying pattern switching
Water cannon can output mist or high-pressure jet to adapt different working needs
Durable carbon steel tank structure with anti-corrosion and anti-leak design
Reinforced tank plate improves structural strength and extends service lifespan
Seamless cast pipe fittings remove welding joints to avoid water leakage
Standardized pipeline parts for convenient maintenance and quick component replacement
Thickened anti-slip punched rear platform, prevents water accumulation and slipping risk
Equipped with high-performance special sprinkler pump with self-priming capability
Built-in filter screen protects the pump from impurities and reduces component wear
Intuitive operation system for simple control of all spraying functions
Optimized suction structure enables efficient water intake from various water sources
Wide spraying coverage to finish large-area dust suppression in short time
Integrated side spraying nozzles for curb and roadside cleaning
Compact overall layout, flexible to operate in narrow urban roads
Complete certification for quality and safety compliance
Low failure rate design to cut long-term operation and maintenance costs

Main technical parameters:

Item	Parameter
Volume	Effective tank volume: 4.15 cubic meters
	(Tank dimensions: 2800×1650×1150)
Total mass	4495
Curb mass	3110
Rated load capacity	1255
Vehicle length, width and height	5800 * 2050 * 2700
Wheelbase	28 50
Engine	Model	Engine Manufacturer	Displacement	Power	Horsepower
	Q23-115C60	Anhui Quanchai Power Co., Ltd.	2300	85	115
Chassis Configuration	wheelbase 2850mm, rear dual tires, 1700mm wide cab, front tilting single row, Wanyang 5-speed transmission, 6.50R16 steel wire tires, power steering, ABS, vehicle-mounted wireless service controller (T-Box), oil brake, cruise control, automatic brake adjusting arm, Quanchai 115 horsepower.

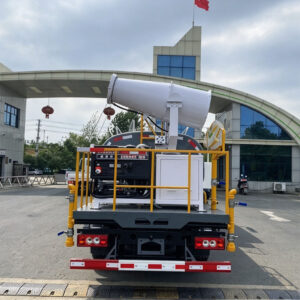

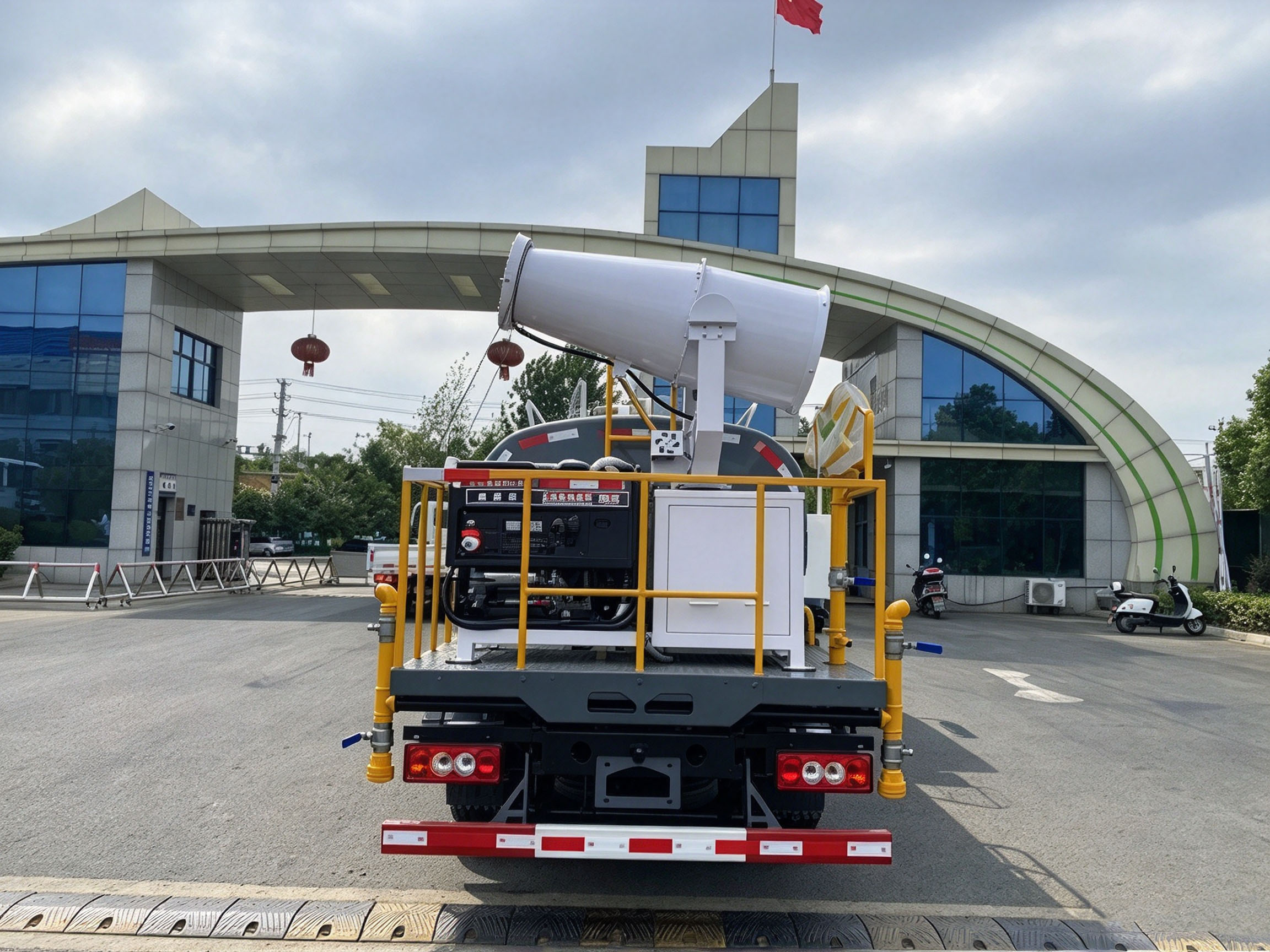

Special performance of water sprinkler	Front flushing (spraying), rear sprinkling, with side spraying, rear working platform, high-pressure greening sprinkler cannon installed on the platform (spraying shape of the cannon is adjustable: straight flush, heavy rain, moderate rain, drizzle, can be adjusted continuously, maximum range can reach 30 meters). Equipped with high-power special sprinkler pump, with fire connector, flow valve, self-priming function and filter screen. Suction range ≥ 6 meters, sprinkling width ≥ 16 meters, spray range ≥ 30 meters.
Upper-mounted tank body and accessories	Material: The tank body is made of Q235, the baffle is 3mm thick, the tank carbon steel plate is 4mm thick, the head is 5mm thick. Large diameter straight-through ball valve, aluminum alloy tee, thickened main pipe (76)
	Standard pipe fittings: cast steel elbow tees, aluminum alloy flange tees, formed by one-time die casting, no welds, avoid water leakage, standardized design, good interchangeability, convenient maintenance and part replacement, aluminum alloy material is more lightweight, beautiful and practical, and improves product grade. Other accessories: rear sprinkler, stainless steel ball valve, new S-type high-pressure water cannon

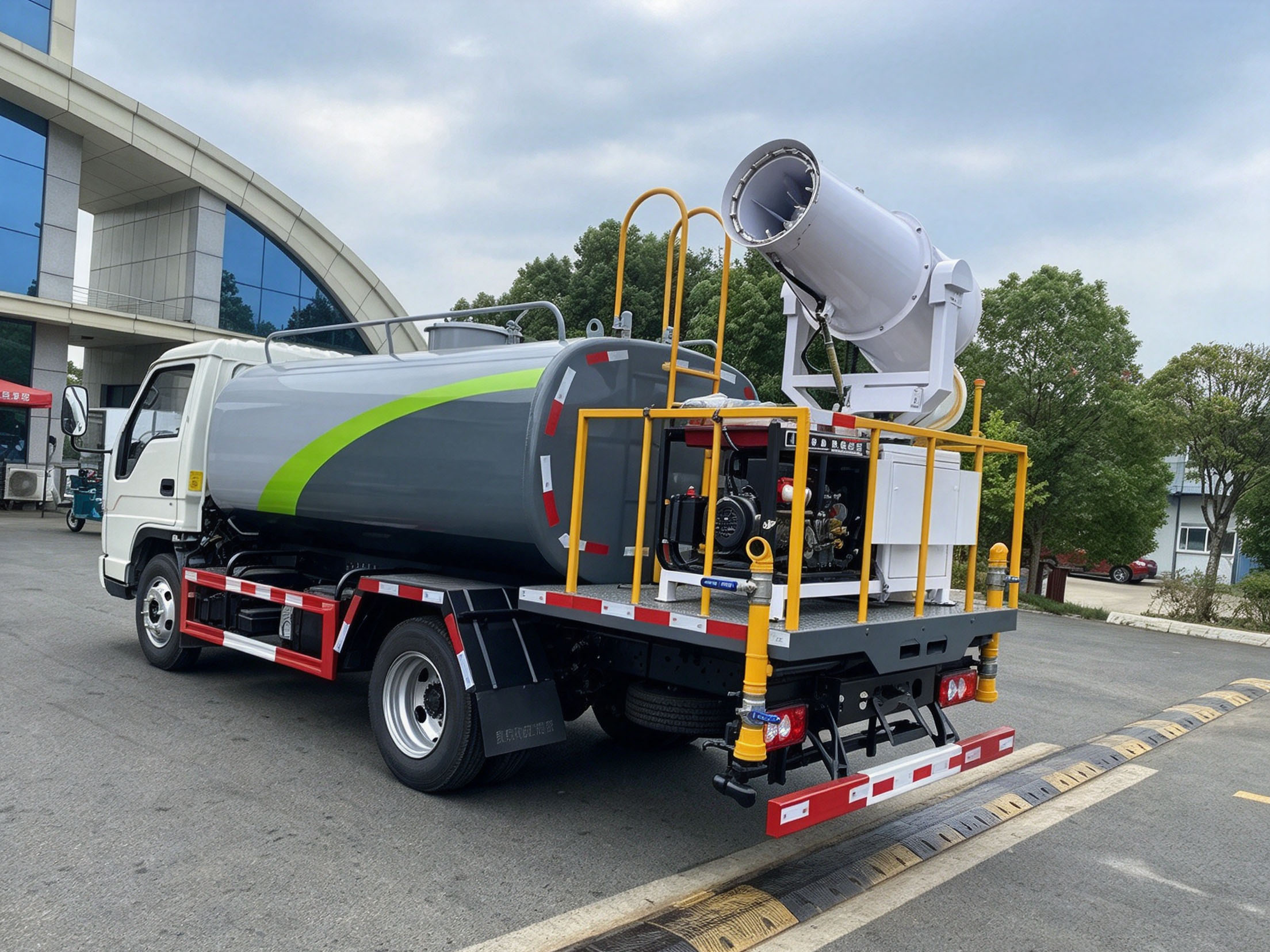

	Punched plate platform: thickened punched plate, better anti-slip performance, no water accumulation on the platform, optimized structure, stamping forming.
