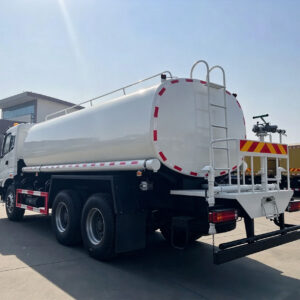

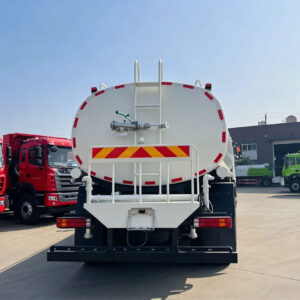

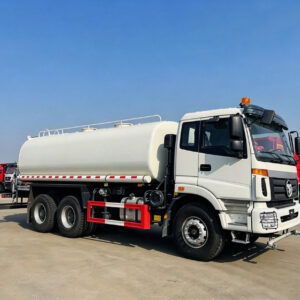

Foton 20CBM Water Sprinkler Truck

Brief

This Foton 20CBM Water Sprinkler Truck is a multi-purpose sanitation vehicle built on the reliable Foton Aohang chassis, designed for urban greening, road maintenance, dust suppression and high-rise surface cleaning. Equipped with a high-performance water pump and complete piping system, it delivers flexible water spraying and powerful water suction capabilities.

The vehicle supports multi-directional spraying, including front, rear and side spray outlets. Its adjustable nozzle can switch water output between water column and fine water mist to adapt to different working scenarios. It achieves wide spray coverage and long spray throw distance, while the vertical suction function enables fast water intake and drainage, greatly improving on-site working efficiency.

Constructed with robust carbon steel water tank, the tank body features solid thickness for long service life and reliable corrosion resistance. The rear working platform reserves space for installing high-pressure spray guns, allowing operators to tackle green belt irrigation and high-altitude building rinsing conveniently.

This truck adopts a 4×2 left-hand drive single-row cabin, fitted with power steering and air conditioning to bring comfortable driving experience. It is powered by a durable Euro 5 diesel engine with manual transmission, meeting mainstream emission requirements for overseas markets. Our factory owns mature production capacity, strict QC inspection and professional engineering team. We can provide customized design, full after-sales follow-up service and optional emission standards, delivering premium quality at competitive prices for global buyers.

Features

Multi-functional Water Mist Sprayer Truck integrated with spraying, watering and water suction functions
Built on sturdy Foton Aohang chassis with stable driving performance
High-power water pump supports fast water delivery and self-priming operation
Multi-directional spraying: front, rear and side spray outlets for full coverage
Adjustable spray nozzle to switch between water column and fine mist modes
Wide effective sprinkling width and long spray throw distance for large-area operation
Powerful vertical suction capacity for quick water source extraction
Fast drainage speed with high flow rate to shorten waiting time on site
Thick carbon steel water tank, wear-resistant and long service lifespan
Rear working platform reserved for high-pressure spray gun installation
Versatile spray gun modes: heavy rain, moderate rain, drizzle and haze suppression
Comes with fire connector and gravity valve for diversified water supply options
4×2 drive form with left-hand drive cabin for convenient operation
Single-row cabin equipped with power steering and air conditioning
Reliable Euro 5 diesel engine with stable power output
Manual transmission with smooth gear shifting for flexible control
Wide application: road cleaning, urban sanitation and green belt irrigation
Suitable for tree watering and high-rise building exterior rinsing
Strict factory QC inspection to guarantee vehicle quality
Customizable emission standards and professional after-sales support

Vehicle Parameter
Overall dimensions (mm)	5995x 1980 x 2350
Water tank volume (L)	5000
Gross Vehicle Weight (kg)	Appro × 8170
Net weight (kg)	Appro × 3170
Loading (kg)	Appro × 5000
Wheel base (mm)	3360
Max speed (Km/h)	90
Chassis Parameter
Cabin	Single row cabin, power steering, air conditioner, 2 passengers,left hand drive.
Drive form	4×2
Engine	Model : Cummins Engine power : 130hp Fuel type : diesel. Displacement : 2999ml Emission standard : Euro 5
Transmission	5 forward,1 reverse, manual operated
Tire model	7.00R16
No.of tires	6+1pcs
Water Tanker Body Parameter
Standard configuration	1) Carbon steel material water tank, thickness 5mm. 2) With water pump. 3) With rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve.
Special performance	1) Front and rear spraying water. 2) Left and right side spraying water. 3) Platform has a sprinkler, spraying water. 4) Water column can be adjusted into mist 5) Width of spraying water : ≥14m. 6) Distance of spraying water : ≥28m. 7) Vertical suction 6-8 m. 8) Drainage time <5min, flow rate 90m3/h.
