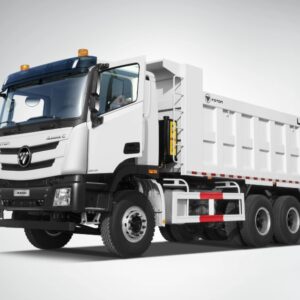

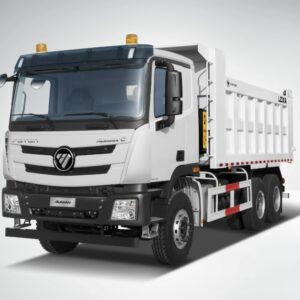

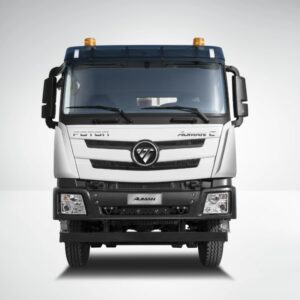

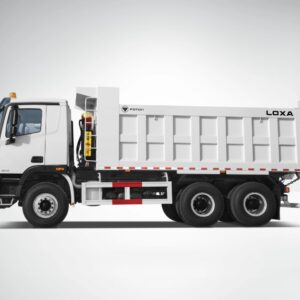

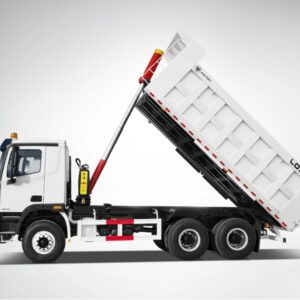

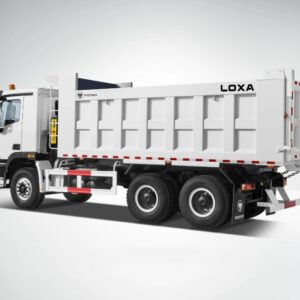

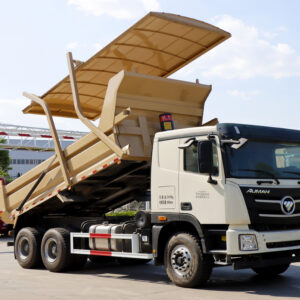

FOTON 6×4 Heavy Duty Dump Truck

QY3042A460

Truck Make/Model
FOTON AUMAN ETX

Cab/Chassis Make/Model
FOTON AUMAN ETX

Engine Make/Model
Weichai WP10.460

Transmission Make/Model
HW25712C (12J)

Special Configuration
Front lifting hydraulic, and large capacity box

Performance
Fast lifting speed, remarkable power and high load bearing

BRIEF

This heavy-duty truck takes durability into account. It is equipped with a HW25712C 12-speed transmission and AMT10J15 steering gear, ensuring smooth vehicle handling. It also features a heavy-duty 16/15 rear axle with large load capacity, which is ideal for carrying heavy loads. The 350L aluminum alloy fuel tank further supports long-range operations, reducing the need for frequent refueling stops. Powered by the Weichai WP10.460 engine with a displacement of 10.8L, it offers remarkable power and fuel efficiency. Moreover, it is equipped to handle the heaviest loads with ease, boasting a gross combined weight rating (GCWR) of 70,000 kg. The Dump truck is a reliable workhorse, which further supports for load carrying and dumping, which significantly improved the unloading efficiency in the area. It also boasts enhanced grip to adapt to the most gravel and other complex road surfaces.

FEATURES

Our Advantages, Special Features	Reference Pictures

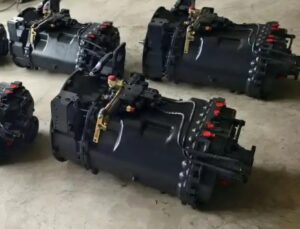

1 HW23712 Iron transmission

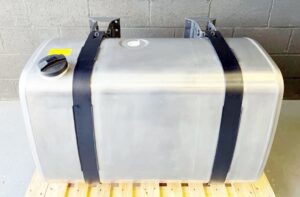

2 Large-capacity aluminum alloy fuel tank

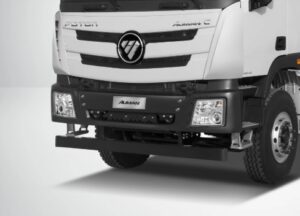

3 High-strength iron bumper

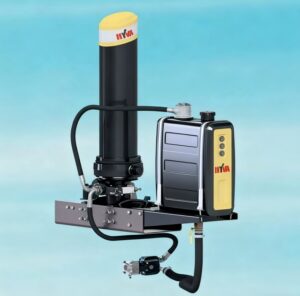

4 Hyva hydraulic lifting system

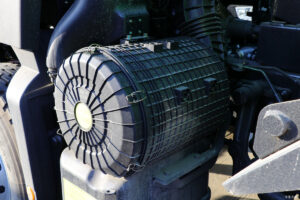

5 Air filter
6 Large-displacement gear pump
7 Multi-stage cylinder

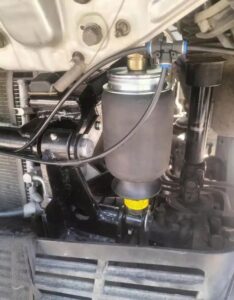

8 All-steel four-point airbag suspension cab

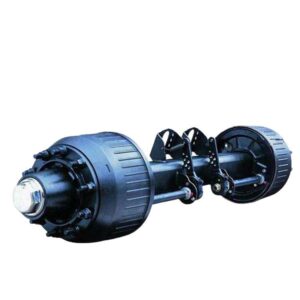

9 Heavy-duty 16T rear axle load capacity

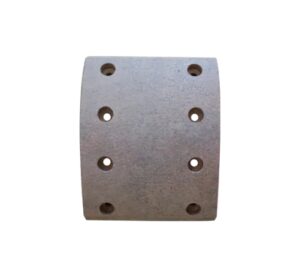

10 Premium brake pads

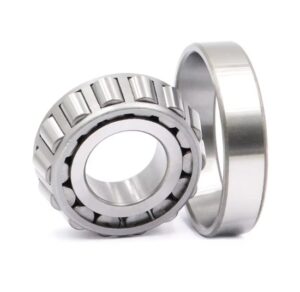

11 High-precision, low rolling resistance bearing

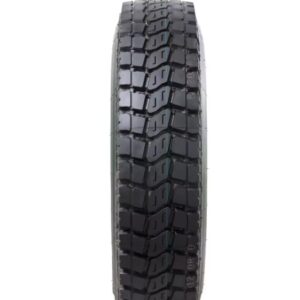

12 12.00R20 all-steel radial tires

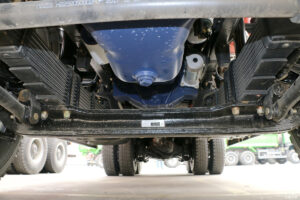

13 Leaf spring mechanical suspension

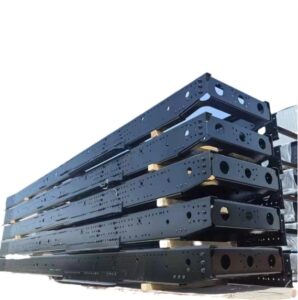

14 U-profile parallel ladder cold riveted cross

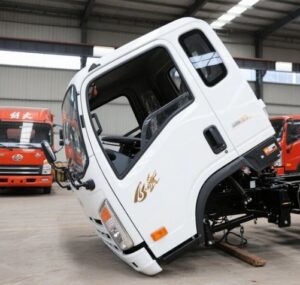

15 Manual cab reversal

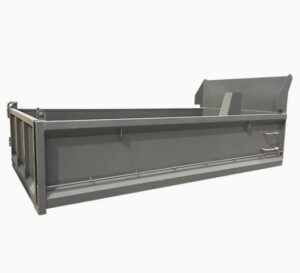

16 T700 high-strength steel tipping body

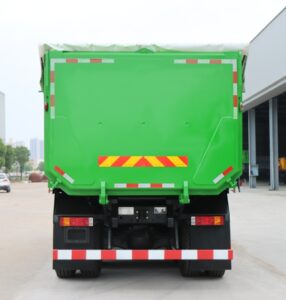

17 Openable tailgate for convenient unloading

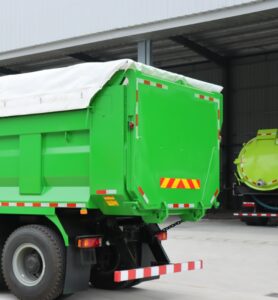

18 Safety chains and hooks

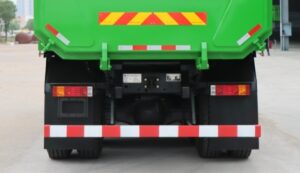

19 Bright long-lasting LED lights
20 Electrophoretic coating

MEASUREMENT

Overall Size
9400×2500×3600 (mm)

Front/Rear Track
2030mm/1830mm

Wheelbase
5800mm

Front/Rear Overhang
1400mm/2200mm

Ground Clearance
350mm/460mm

WEIGHTS

Gross Vehicle Weight
41 T

Tare/Curb Weight
12.5 T

Loading Weight
28.5 T

Front/Rear Axle Rating
9 T/32 T

CHASSIS

Chassis Model
FOTON AUMAN ETX 6×4 460HP LHD

CAB

Cab Model
ETX-1

Cab Type
Sleeper Cab

Stepped Roof

Cab Width
2490mm

Number of Seats
2 seats

Height
2800mm

Construction
All-steel four-point airbag suspension cab

Instrument & Controls
Electric windows, air filter

Driving Seats

Manual cab reversal

Equipment & Device
A/C

ENGINE

Make/Model
Weichai WP10.460

Maximum Power
338kW(460HP)/1900rpm

Max. Torque
2200N.m/1000-1400rpm

Displacement
10.8L

Engine Type
6 Cylinders In-line

Emission Regulation
Euro 5

CLUTCH

Make/Model
–

Type
Single dry disc type diaphragm spring

Diameter
430mm

TRANSMISSION

Make/Model
HW25712C (12J)

Type
Manual

Gear Numbers
12F+2R

Synchronizer
–

STEERING

Make/Model
–

Type
Recirculating ball power adjustable column

Position
Left hand side

CHASSIS FRAME

Type
U-profile parallel ladder cold riveted cross

Main Rail
800×220×80×6 (mm)

Structure
2 layers standard body unit mounting

Suspension
Leaf Spring Mechanical

AXLES

Front Axle Make/Model
–

Front Axle Type
Steering axle

Front Axle Rating
9000kg

Rear Axle Make/Model
–

Rear Axle Type
Driving axle

Driving Axle Rating
16000kg

Axle Ratio
4.444/4.8/5.263

ELECTRIC

Working Voltage
–

Starter
–

Alternator
–

Battery Type
–

BRAKE

Service Brake
Dual circuit compressed air brake

Parking Brake
Spring energy air-release parking brake

Auxiliary brake
Engine exhaust brake

Others
–

BODY/UNDERSTRUCTURE
