Features
- Strong Load-Bearing & Power Performance: 3000kg maximum platform capacity paired with a 105kw F3.8s3141 engine and 450N.m torque, handling light to medium-duty towing needs effortlessly.
- Efficient Lifting & Traction Systems: 1800kg lifting capacity, 1340mm telescopic stroke, and 40kN hydraulic winch (25m wire rope) enable quick, safe vehicle loading and recovery.
- Stable & Safe Chassis Design: 2.5T/6.0T axles, multi-leaf suspensions, and triple braking systems (service/parking/auxiliary) ensure stability on all road conditions.
- Spacious & Practical Flatbed: 5550??2220mm platform with 8?? minimum inclination and 2700mm working stroke, adapting to various vehicle sizes and loading scenarios.
- Comprehensive Utility Configurations: Hydraulic locks, removable alarm lights, lashing ropes, and training wheels provide all-around support for seamless towing operations.
Details

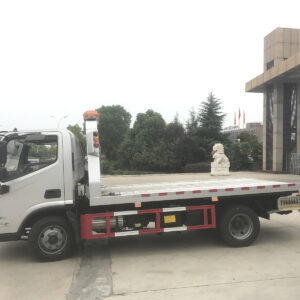

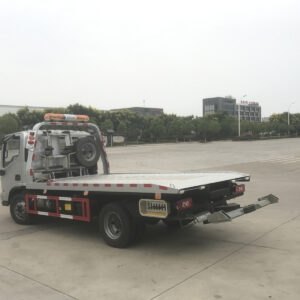

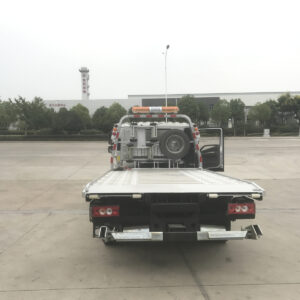

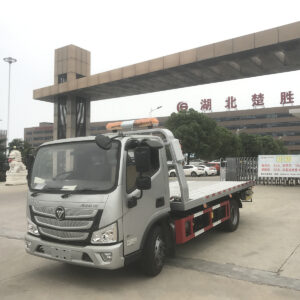

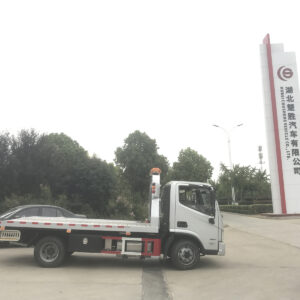

The AUMARK-C38 3 Ton Flatbed Towing Truck stands out as a versatile and robust solution for professional vehicle recovery, light commercial transport, and roadside assistance. Built with performance and practicality in mind, it combines powerful dynamics, durable construction, and user-friendly features to meet diverse operational needs.
In terms of dimensions and weight, the truck measures 6725??2100??2280mm (L??W??H) with a 3800mm wheelbase, balancing maneuverability and load-bearing space. It has a curb weight of 3305kg and a gross vehicle weight of 6500kg, accommodating up to 3 crew members in its single-row, right-rudder cabin (W1995mm) for comfortable teamwork.
Under the hood, the F3.8s3141 engine (Euro?? emissions, 3.76L displacement) delivers 105kw rated power and 450N.m maximum torque, paired with a 6TS55 gearbox for smooth power transmission. This setup enables a top speed of 95km/h, ensuring efficient travel between job sites. The chassis is reinforced with a 2.5T front axle and 6.0T rear axle (4.875 main reduction ratio), supported by 9-leaf front suspension and 11+7-leaf rear suspension??designs that enhance stability when carrying heavy loads or navigating uneven roads.
The truck??s core towing systems are engineered for reliability. The lifting system offers a maximum lifting weight of 1800kg (1330kg at full extension) with a 1340mm support arm telescopic stroke, while the bracket??s -9.5?? lower angle and 550mm retracted cross arm height facilitate easy loading of low-ground-clearance vehicles. The flatbed platform (5550??2220mm inner dimensions) features an 8?? minimum inclination angle and 2700mm working stroke, with a 1070mm ground height for convenient loading/unloading. Complementing this is a hydraulic winch (1 unit) with 40kN rated traction, 11mm-diameter wire rope (25m length), and 5m/min minimum linear speed??perfect for pulling stranded vehicles onto the platform.
Safety and functionality are prioritized through comprehensive configurations. The brake system includes drum pneumatic service brakes, gas parking brakes, and engine exhaust auxiliary brakes, ensuring reliable stopping power. Standard equipment includes L-shaped tow arms with hydraulic locks, high-strength side panels, removable gantry-mounted alarm lights, a full lighting alarm system, 4 lashing ropes, and training wheels. The hydraulic control system ensures precise operation of lifting and towing mechanisms, while the power-take-off design guarantees consistent performance.
Whether recovering passenger cars, light trucks, or commercial equipment, the AUMARK-C38 excels in versatility, durability, and safety??making it an indispensable asset for towing companies, roadside assistance providers, and logistics fleets.
Parameters
| Basic Vehicle Specifications |
|---|
| Vehicle model | Vehicle model | AUMARK-C38 |
| Cabin | Cabin | Single row/W1995/right rudder |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6725??2100??2280 |
| Wheel base(mm) | 3800 |
| Weight data | Curb weight(kg) | 3305 |
| Gross vehicle weight??kg?? | 6500 |
| Persons in cab | 3 |
| Whole vehicle main performance | Max. speed??km/h?? | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | Euro?? |
| Displacement??L?? | 3.76 |
| Rated Power??kw/rpm?? | 105 |
| Max torque ??N.m/rpm?? | 450 |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 11+7 |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake |
| Auxiliary brake | Engine exhaust brake |
| Wheels and tyre size | Wheels and tyre size | 6+1(8.25R16) |
| Upload Parameters |
|---|
| Lifting system | Maximum lifting weight??kg?? | 1800 | 1800 |
| Maximum lifting capacity at full extension??kg?? | 1330 | 1330 |
| After Joe distance (mm) | 2540 | 2540 |
| Effective length of bracket (mm) | 1640 | 1640 |
| Support arm telescopic stroke | 1340 | 1340 |
| Telescopic stroke of bracket (mm) | 7 | 7 |
| The lower Angle of the bracket | -9.5 | -9.5 |
| The maximum distance from the ground on the upper surface of the fully retracted cross arm (mm) | 550 | 550 |
| Platform | Inner Length (mm) | 5550 | 5550 |
| Inner Width (mm) | 2220 | 2220 |
| Minimum inclination Angle of platform | 8 | 8 |
| Platform working stroke (mm) | 2700 | 2700 |
| Platform height above ground (mm) | 1070 | 1070 |
| Maximum bearing capacity of plate mechanism (kg) | 3000 | 3000 |
| Winch | Quantity | 1 | 1 |
| Rated traction per unit (kN) | 40 | 40 |
| Diameter of wire rope (mm) | ??11 | ??11 |
| Length of wire rope (m) | 25 | 25 |
| Capstan Diameter (mm) | ??110 | ??110 |
| Minimum linear speed of wire rope (m/min) | 5 | 5 |
| Basic configuration | Item 1 | Hydraulic winch | Hydraulic control system |
| Item 2 | L-shaped tow arm | Hydraulic lock |
| Item 3 | High strength side panels | Alarm light (mounted on the gantry frame, removable) |
| Item 4 | Lighting alarm light system | Lashing rope: 4 pieces |
| Item 5 | Training wheels | Take power |
