Truck Make/Model
FOTON/PICKUP
Cab/Chassis Make/Model
FOTON/TUNLAND
Engine Make/Model
FOTON4F25TC4
Transmission Make/Model
/
Boom capacity/Underlift capacity
3.5T
Main Component
Planetary winch
Integrated design
Performance
/

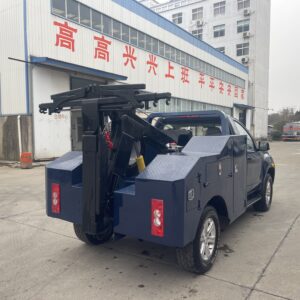

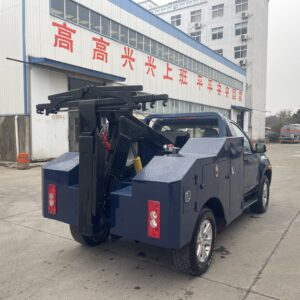

With 1500mm of underlift reach, the NT38U has the ability to tow most vehicles without going to larger and heavier towing units. The NT38U also provides a 3-ton recovery boom with 1×40KN winches for your reco very and lifting applications.
Our Advantages, Special
| 1 | · Left hand drive FOTON pickup chassis |
| 2 | · 4WD chassis |
| 3 | · 2 Toolboxes on each side |
| 4 | · Dual manual control stations |
| 5 | · 1×40KN hydraulic planetary winch |
| 6 | · Light bar |
| 7 | · Two tail lights |
| 8 | · 2-cart |
| 9 | · Painted |
| 10 | Boom Features |
| 11 | · Power elevation & Power extension |
| 12 | · 2-Stage design |
| 13 | · Capacity 3000kg |
| 14 | Underlift Features |
| 15 | · Power lift & Power extension |
| 16 | · Hydraulic Fold |
| 17 | · 2-Stage Design |
| 18 | · Automatic wheelreceiver device |
| 19 | · Capacity 3500kg |
MEASUREMENT
Overall Size
5145×1900×1930mm
Front/Rear Track
1600/1580mm
Front/Rear Overhang
950/990mm
Wheelbase
3110mm
WEIGHTS
Gross Vehicle Weight
4495kg
Tare/Curb Weight
2670kg
Loading Weight
1825kg
Front/Rear Axle Loading
1345/2760kg
Chassis Truck Line
FOTON/PICKUP 130HP 4×4 LHD
CAB
Cab Model
TUNLAND
Cab Type
Double Cab
Cab Width
1800mm
Height
1630mm
No. of Seats
2
Construction
All Steel
Instrument & Controls
Electric window,Central lock front and rear door
Driver Seats
Adjustable spring seat
Equipment
Front Trailer
Equipment & Device
A/C,Radio,Cassette record
ENGINE
Make/Model
FOTON4F25TC4
Maximum Power
96KW(130HP)/3600rpm
Max. Torque
320N.m
Displacement
2.49L
Engine Type
4-Cylinder In-line diesel engine
Emission Regulation
EURO 6
CLUTCH
Make/Model
/
Type
/
Diameter
/
TRANSMISSION
Make/Model
/
Type
Manual
Gear Numbers
6F+1R
Synchronizer
/
STEERING
Make/Model
/
Type
Recirculating ball, power assisted adjustable column
Position
Left Hand Side
CHASSIS
Type
Non-load-bearing chassis structure
Module
/
Frame Layer
2 layers standard body unit mounting
Suspension
Mechanical, Semi-elliptic Leaf Springs -/5
AXLES
Front Axle Make/Model
/
Front Axle Type
Driving Axle
Front Axle Rating
1345kg
Rear Axle Make/Model
/
Rear Axle Type
Driving Axle
Rear Axle Rating
2760kg
Axle Ratio
/
ELECTRIC
Working Voltage
12V
Alternator
/
Starter
/
Battery Type
/
BRAKE
Service Brake
Dual circuit compressed air brake
Parking Brake
Spring energy, compressed air operating on rear wheel
Auxiliary Brake
Engine exhaust brake
Others
ABS
BODY/UNDERSTRUCTURE
| 1 | Boom Specification | Description |
| 2 | Max Lifting Capacity | 3000kg |
| 3 | Cylinder Telescopic Stroke | 1540mm |
| 4 | Total Length | 3900mm |
| 5 | Max Lifting Height | 2700mm |
| 6 | TailBoard Down Tilt | -9.5° |
| 7 | Lifting Angle | (0)3.3°-19.3° |
| 8 | Underlift Specifications | |
| 9 | Max Lifting Capacity | 2500kg |
| 10 | Max Lifting Capacity(fully extended) | 1950kg |
| 11 | Boom Effective Length | 900-1500mm |
| 12 | Boom Telescopic Stroke | 600mm |
| 13 | Boom Elevation Angle | 11.5° |
| 14 | Boom Declination Angle | 4.5° |
| 15 | Non-load Folding Angle | 90° |
| 16 | Winch | |
| 17 | Qty | 1 nos |
| 18 | Max Pulling Force | 40KN |
| 19 | Rope Diameter | 11mm |
| 20 | Wire Rope Length | 25m |
| 21 | Speed | 5m/min |
