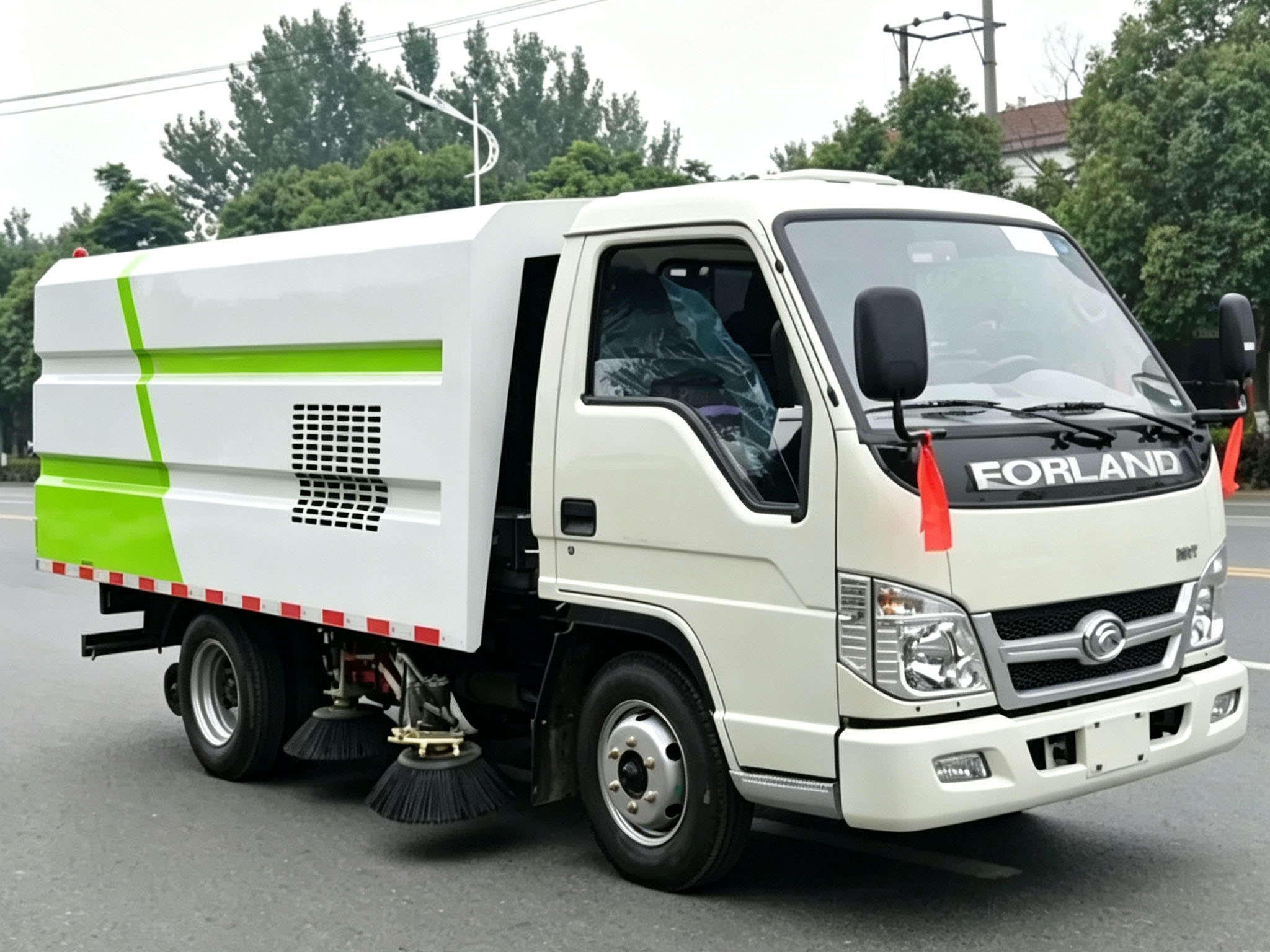

Foton 2.5CBM Road Cleaner Truck

产品: Foton 2.5CBM Road Cleaner Truck



1.Truck Make /Model :CRRC/RS2.5BJ63L1

2.Cab Chassis Make/Model :FOTON/Forland

3.Engine Make/Model:4DW91-63NG2/ 63HP

4.Capacity:2.5 CBM

5.Main Component:gear pump, hydraulic motors, hydraulic cylinders, solenoid valve;electric diaphragm pump, water filter, nozzle

6.Performance: Maintenance-free fan, long service life; Stainless steel tanks, anti-corrosion & easy maintenance; Wear-resistant brush, oil-free rotating mechanism; High-quality branded hydraulic & electric components

SKU: BJ5123TSLEV-H1 Category:

Brief

This Foton 2.5CBM Road Cleaner Truck built on reliable Foton Forland chassis is a compact multi-functional street vacuum cleaner engineered for municipal street cleaning, residential area maintenance and park sanitation tasks. Powered by mature diesel power units including main engine and auxiliary engine, this road cleaner delivers stable and consistent sweeping performance for long-hour continuous operation.

Equipped with maintenance-free fan and premium stainless steel tanks, the vehicle features outstanding corrosion resistance and simple daily maintenance. Its wear-resistant sweeping brushes adopt oil-free rotating structure, effectively lowering later maintenance costs. The whole sweeping system adopts hydraulic and electric integrated control, with complete core assemblies including gear pump, hydraulic motors, solenoid valve and electric diaphragm water spraying system.

The machine achieves high sweeping efficiency and large cleaning coverage, capable of picking up debris with relatively big particle size. It supports flexible sweeping speed adjustment to adapt different road conditions. The four mid-mounted sweeping discs are driven by hydraulic motors; the right front brush comes with independent control and anti-collision protection, which can automatically avoid obstacles during operation. The garbage tank can tilt at a large angle for smooth waste unloading. The built-in water spraying system suppresses dust during sweeping, preventing secondary dust pollution.

This mini road cleaner is compact in overall size, easy to maneuver in narrow lanes, communities and small roads. It is widely adopted for urban sanitation, campus cleaning, industrial park maintenance and other cleaning scenarios, a cost-effective light-duty road cleaning solution for global buyers.



Features

  1. Built on mature Foton Forland single-row cabin chassis, fitted with air conditioner and power steering for comfortable driving.
  2. Adopts 4×2 two-axle layout, compact body design for flexible operation on narrow roads.
  3. Configured with main 63HP diesel engine plus 78HP auxiliary engine to supply stable power for cleaning work.
  4. Equipped with maintenance-free fan, reducing routine inspection and replacement work.
  5. Garbage tank and water tank are made of stainless steel, anti-rust and corrosion-resistant for long service life.
  6. Wear-resistant sweeping brushes with oil-free rotating mechanism, less friction and low failure rate.
  7. Full set of branded hydraulic components: gear pump, hydraulic motors, cylinders and solenoid valve for stable hydraulic control.
  8. Hydraulic system runs at stable working pressure, supporting tank lifting and brush retraction smoothly.
  9. 4 mid-mounted sweeping discs driven by hydraulic motors to realize all-round road sweeping.
  10. Right front sweeping brush supports independent control with anti-collision response function to protect working parts.
  11. Large tilting angle for garbage tank, ensuring thorough and convenient waste discharge.
  12. Single suction disc with spring suspension design, closely fitting uneven road surface for better suction effect.
  13. Large suction inlet diameter, able to suck up large-size road debris efficiently.
  14. Integrated water spraying system including electric diaphragm pump, water filter and spray nozzles for dust suppression.
  15. Excellent sweeping efficiency, greatly cutting manual cleaning workload for sanitation projects.
  16. Wide sweeping coverage, finishing large-area cleaning tasks within short time.
  17. Adjustable working speed, freely switch between slow sweeping and transit driving mode.
  18. DC24V electrical system, reliable circuit design for outdoor harsh working environment.
  19. Comes with spare tire, meeting emergency needs during field operation.
  20. Simple structure and easy access to spare parts, convenient for overseas after-sales maintenance.



Specification
ITEM UNIT PARAMETER
Overall dimensions mm 5950×1995×2380
GVW kg Appro×7300
Curb weight Appro×4800
Garbage tank L 4000
Water tank 1500
Wheel base mm 3360
Front/Rear overhang 1032/1618
Approach/departure angle ° 12/19
Max speed km/h 80
Working Performance 1. Sweeping efficiency 95%;
2. Max suction size 120mm;
3. Sweeping width 2.8-3.0m;
4. Max cleaning capacity 60000 m2/h;
5. Butterfly disc extend size ≥400mm;
6. Sweeping speed 3-20km/h
Chassis Parameter
Cabin Single row cabin, air conditioner, with power steering,  2 passengers
Traction system 4×2, 2 axles
Tire 6.50-16, 6pcs, and a spare tire
Engine Engine brand : XICHAI POWER
Engine model : 4DW91-63NG2,63hp
Displacement : 2540ml
Fuel : diesel
Type : 4 cylinder, turbocharged, intercooled.
Emission standard : Euro I
Gearbox 5-speed, manual
Deputy Engine System
Deputy engine model JX493-G3,78hp
Fuel type diesel
Tank System
Water tank Material : stainless steel
Volume: 1500L
Garbage tank Material : stainless steel
Volume : 4000L
Discharging door opening angle : ≥45°
Hydraulic System
Type electrical control
Main components gear pump, hydraulic motors, hydraulic cylinders, solenoid valve
System pressure 16Mpa
Hydraulic oil tank capacity 60L
Oil temperature 60ºC
Electrical System
Type DC24V
Voltage 24V
Battery 24V
Spraying Water System
Main components electric diaphragm pump, water filter, nozzle
Sweeping Device System
Type centre installation 4pcs sweeping disc,hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response
Sweeping disc diameter 850mm
Sweeping disc- angle forward 4-6°,
outword 4-7°
Sucking Disc System
Type single suction, hydraulic control, spring suspension
Suction entrance diameter 200mm
