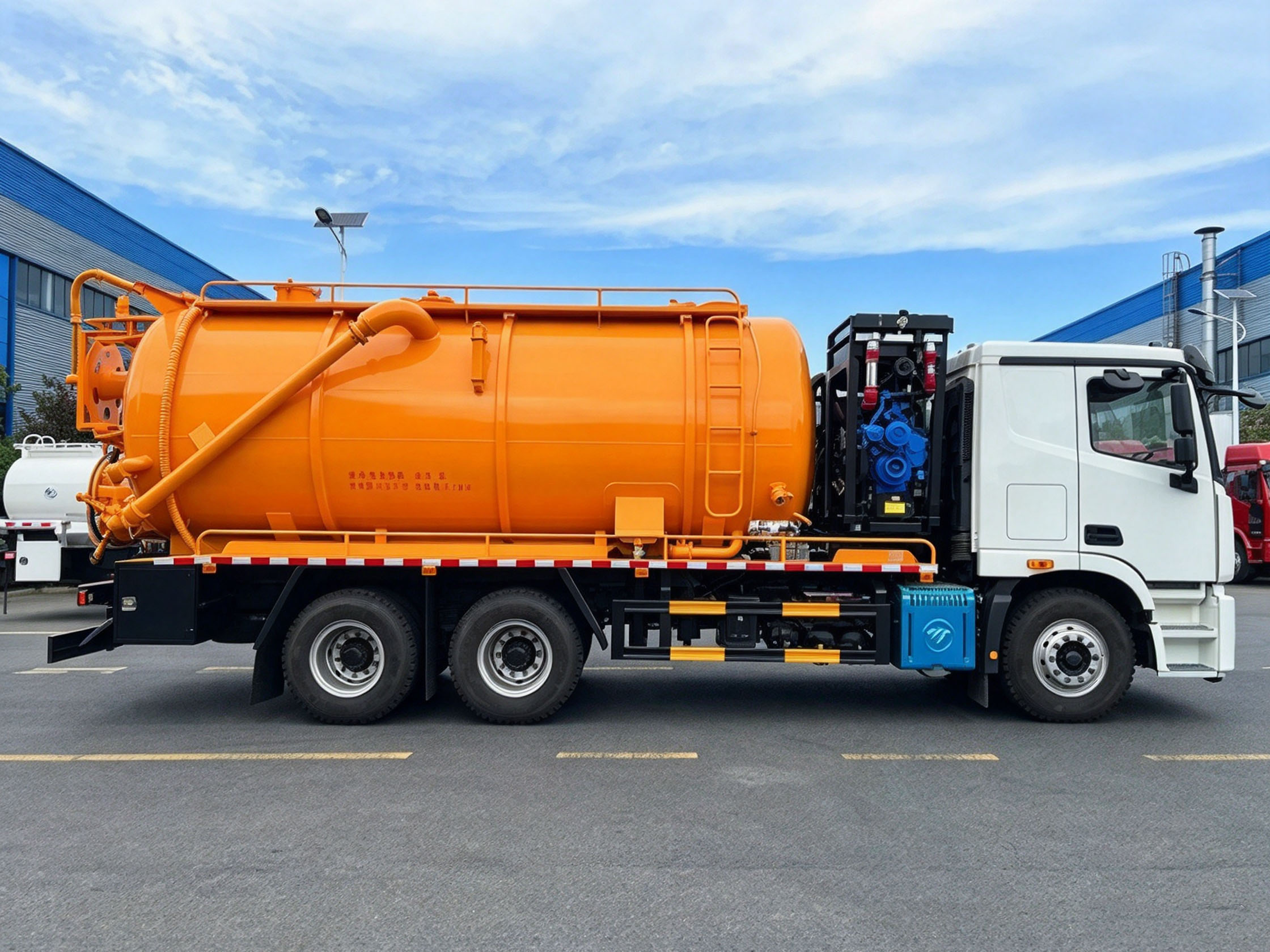

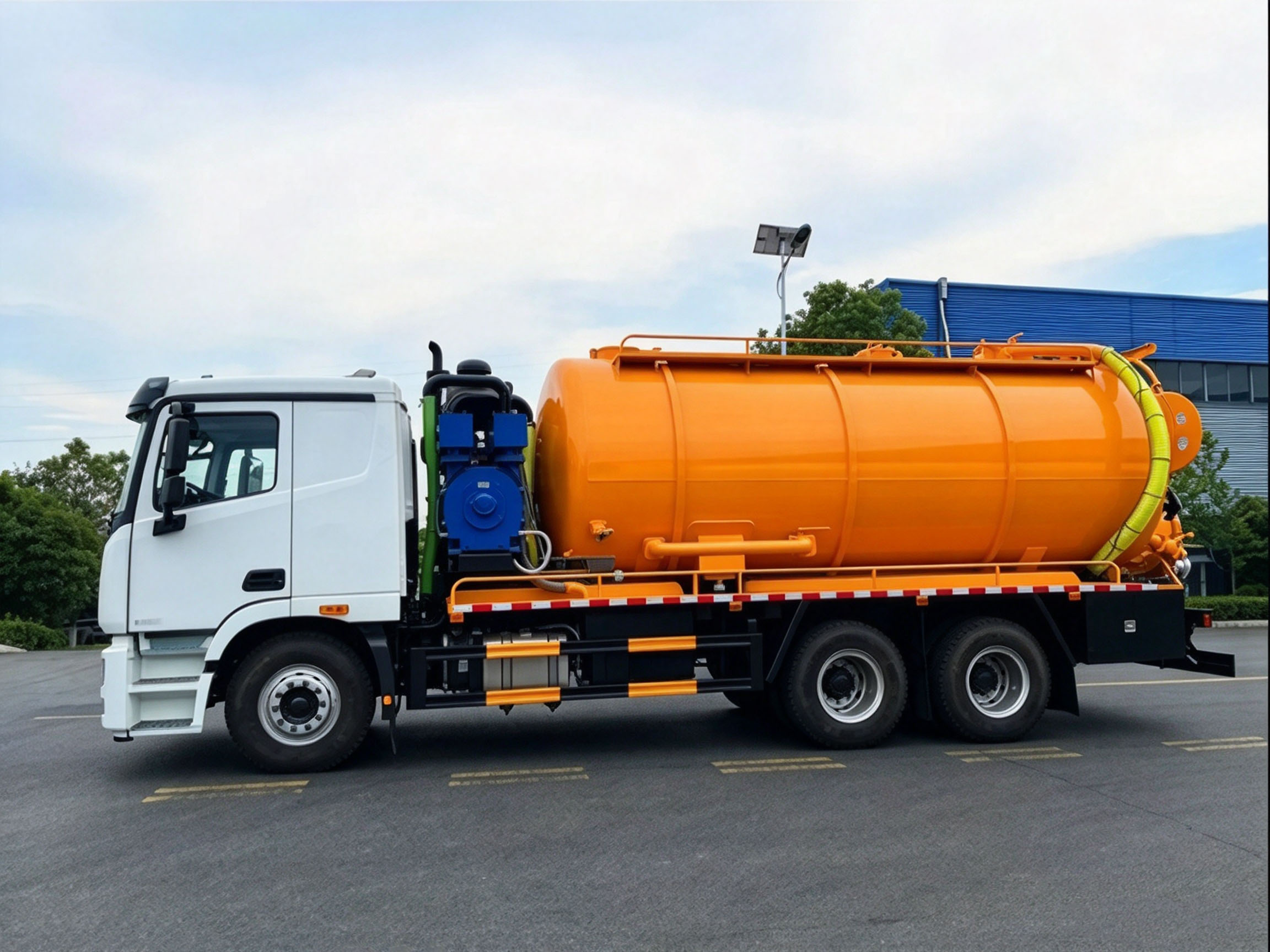

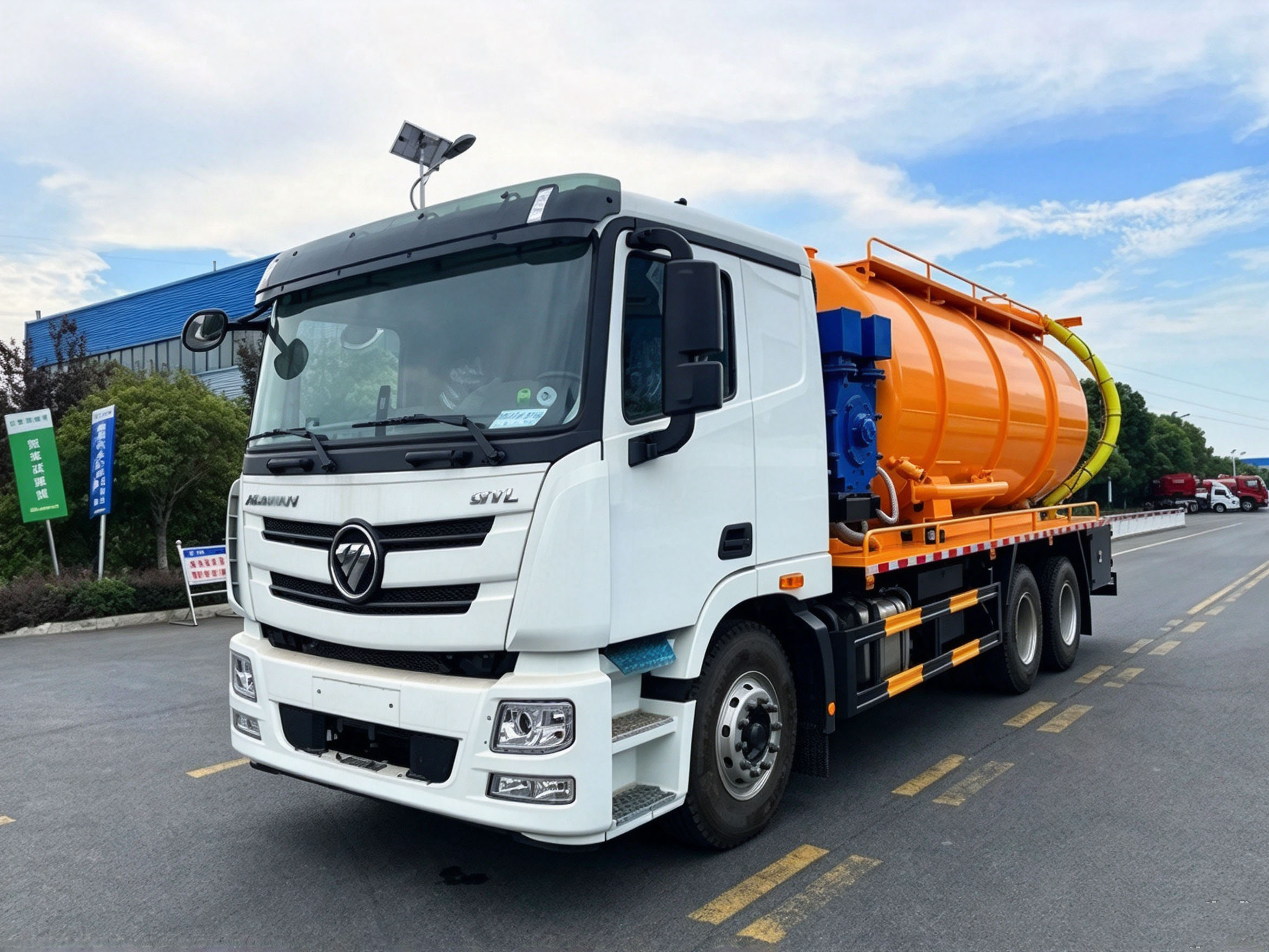

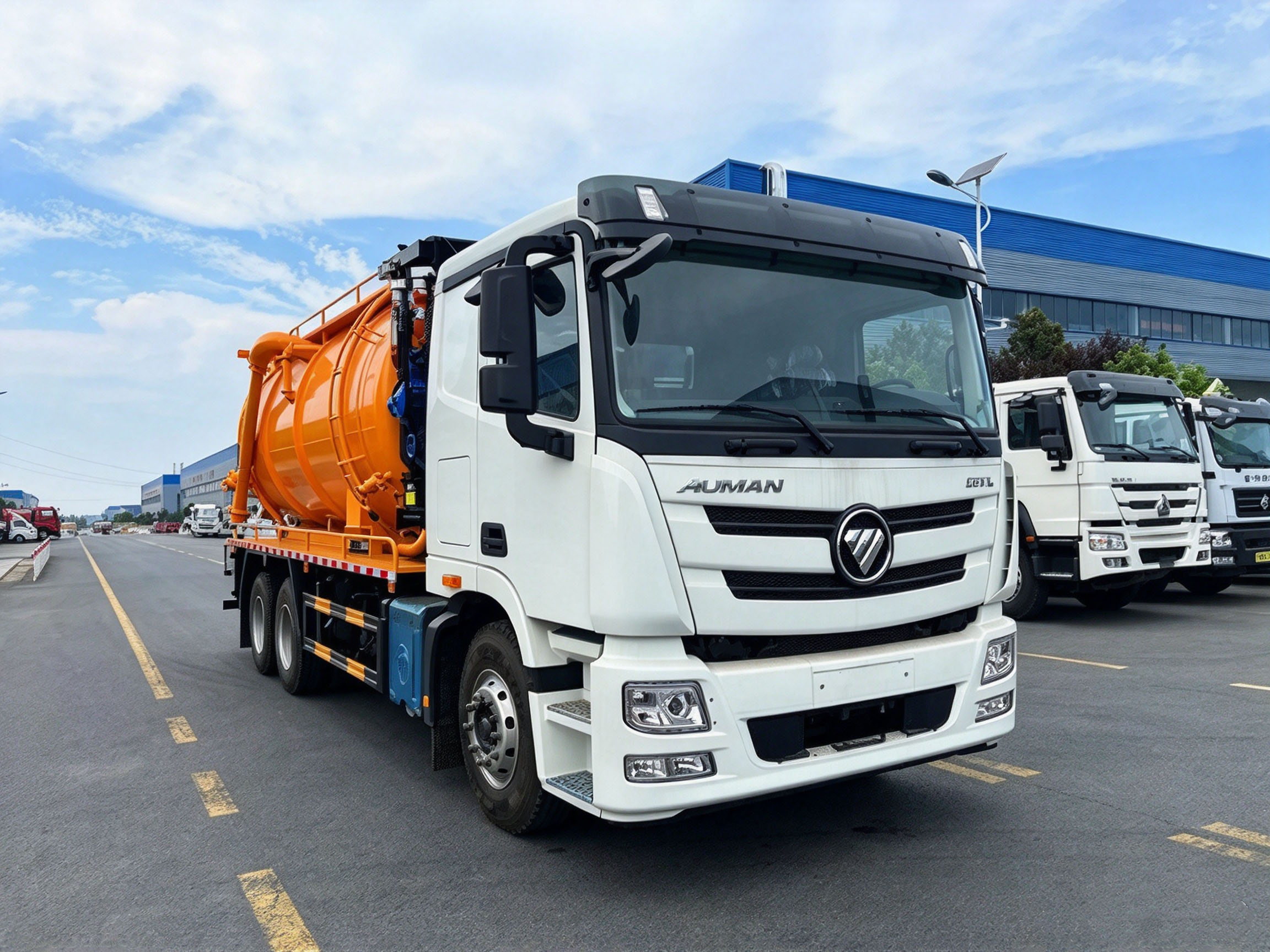

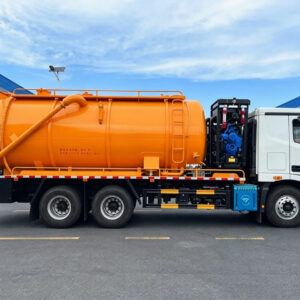

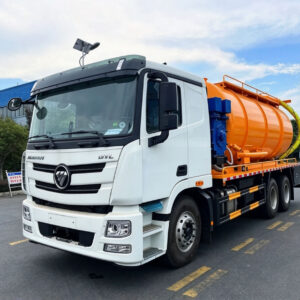

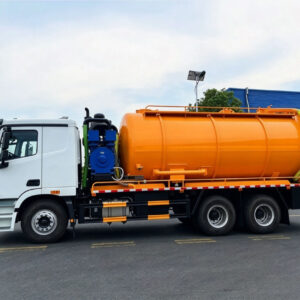

Foton 21CBM Jetting Truck

Brief

This Foton 21CBM Jetting Truck adopts the sturdy FOTON Auman chassis and is manufactured by CRRC, powered by a durable 290HP Cummins main engine to deliver steady power for long-hour municipal sewer maintenance work. Built with a dual pumping system, this jetting truck combines high-pressure pipeline dredging and sludge vacuum suction to handle blocked sewers, sediment removal and onsite sludge treatment efficiently.

Its core high-pressure pump is paired with stainless steel high-pressure nozzles for powerful jetting performance, protected by a proprietary large filter that avoids frequent disassembly and cleaning to block impurities and protect the pump. The supporting water-circulating vacuum sludge pump is driven by an independent auxiliary engine, and an auxiliary fuel tank extends continuous working endurance for remote field jobs.

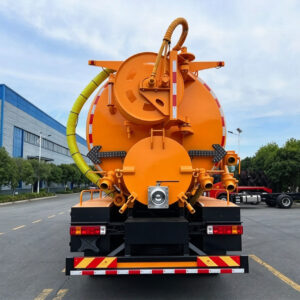

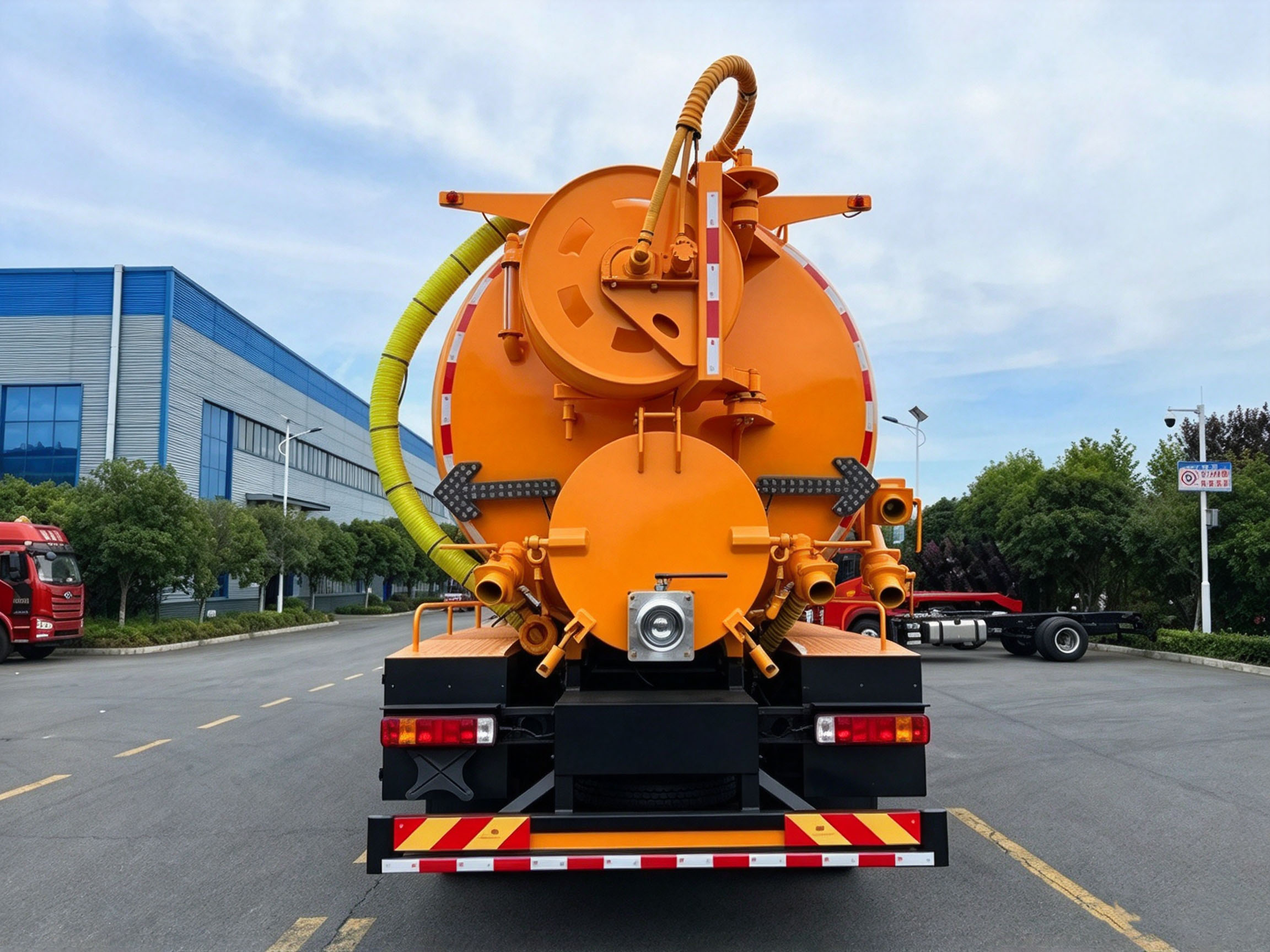

The waste tank features a self-developed anti-overflow valve fitted with a detachable filter screen, which stops debris from entering and damaging the pump. A three-claw tank opening on the tank top simplifies internal tank cleaning. The rear high-pressure hose reel uses triangular double-bolt fastening and thickened reinforced structure, hydraulically rotating up to 180 degrees; an integrated flushing nozzle automatically rinses the hose during retraction.

Shock-resistant pressure gauges are fitted on core valves to maintain precise pressure readings under working vibration. A centralized control panel with clear operation guides helps avoid misoperation. The water tank is equipped with easy-to-operate ball valve fire hydrant, pagoda-style washing valve and DN100 reinforced connecting pipe, supporting water interchange to expand operational flexibility. Complete anti-slip platforms, guardrails and access ladders provide safe access for inspection and maintenance.

Features

All-in-one Foton 21CBM Jetting Truck built on FOTON Auman chassis
290HP Cummins main engine provides stable power for extended field operation
Dual powerful pumping system integrating high-pressure jetting and vacuum sludge suction
Heavy-duty high-pressure pump matched with wear-resistant stainless steel high pressure nozzles
Proprietary large filter for high-pressure pump, no disassembly required for cleaning
Independent auxiliary engine drives the water-circulating vacuum sludge pump
Auxiliary fuel tank equipped to extend continuous working endurance on site
Self-developed anti-overflow valve with filter screen prevents debris pump damage
Three-claw tank opening design enables easy internal cleaning of waste tank
Rear high-pressure reel with triangular double-bolt fastening for stable and reliable operation
Enlarged thickened reel construction with integrated nozzle to auto-clean hose during retraction
Hydraulically driven 180° rotating reel for flexible hose deployment and recovery
Shock-resistant pressure gauges for real-time, accurate pressure monitoring under vibration
Centralized control panel with operation instructions to prevent operational mistakes
Water tank fitted with durable ball valve-type fire hydrant for simple operation
Supports water-carrying interchange function through DN100 reinforced connecting pipe
Anti-slip patterned plate platform with galvanized protective net on both sides
Anti-slip safety guardrails and side access ladders for safe tank inspection
Tank top checkered plate working platform with safety guardrails for operator protection
Multi-functional design for municipal sewer dredging, sludge suction and environmental sanitation

Vehicle Technical Specifications
Total Mass (kg)	25000
Tank Volume (m³)	21
Rated Load Capacity (kg)	7420
Curb weight (kg)	17450
External Dimensions (mm)	10150 × 2550 × 3800
Emission Standard	Euro 3
Approach angle/Departure angle (°)	17/16, 17/20, 17/25
Tire Specifications	12.00R20 16PR, 12R22.5 18PR, 11.00R20 18PR, 11.00-20 18PR
Number of steel leaf springs	9/12, 3/5, 3/4, 2/4, 2/3
Front track width (mm)	2010, 2020, 2050, 2080
Front overhang/Rear overhang (mm)	1460/2940
Wheelbase (mm)	4400 + 1350
Number of axles	3
Axle load (kg)	7000/18000 (two-axis set)
Maximum Speed (km/h)	89
Number of tires	10
Fuel Type	Diesel
Rear track width (mm)	1830/1830, 1860/1860, 1865/1865, 1880/1880
Drive Wheel	4×2
Curb Weight (Kg)	17500
Horsepower	290HP
others	1. Utilizing a chassis with a wheelbase of 4400+1350 (mm), this vehicle is primarily designed for sewer cleaning and sewage suction, featuring a vacuum pump and tank as its main specialized equipment;2. Side/rear guard material: Q235 steel. Side guard: welded with bolted connections. Rear guard: welded connection. Rear guard cross-section dimensions (H×W) (mm): 220×50. Lower edge height from ground: 500mm;3. Tank external dimensions (length × diameter) (mm): 6060 (including 5400mm straight section) × 2150. The front section is a clean water tank (straight section length 2400mm); the rear section is a sewage tank (straight section length 3000mm).Freshwater tank total capacity: 7.78 m³, effective volume: 7.42 m³; medium: water; density: 1000 kg/m³. Wastewater tank total capacity: 9.73 m³, effective volume: 9.27 m³; medium: liquid waste; density: 800 kg/m³. Both tanks are independent and cannot be simultaneously filled to capacity.The clean water tank is used for washing functions, while the sewage tank is used for suction functions. The tanks feature a lifting function. 4. Optional tank exterior, optional top tank opening style, optional rear appearance, optional cover style. Tire specifications only: 12.00R20 16PR, 11.00R20 18PR.
