Basic Info

MODEL CODE: 8H0410000 (Lightweight/Standard)

Truck Chassis Make/Model: FOTON/OLLIN

Engine Make/Model: Cummins/F2.8NS6B156

Transmission Make/Model: WLY/6MT

Capacity: 18CBM

Min-component: All closed sandwich structure panels

Appearance: Lightweight and clean design with effective waterproof and dustproof

Summary

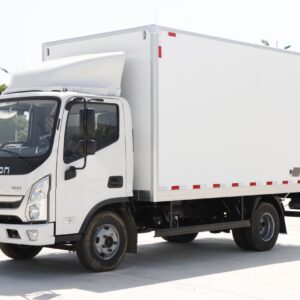

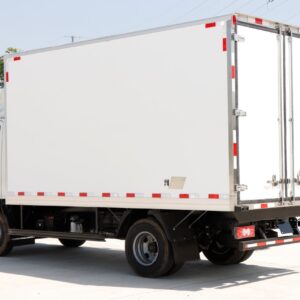

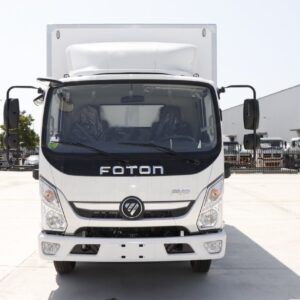

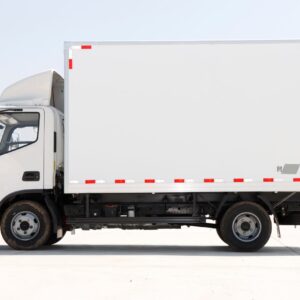

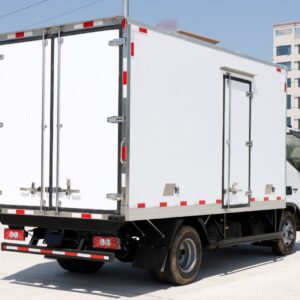

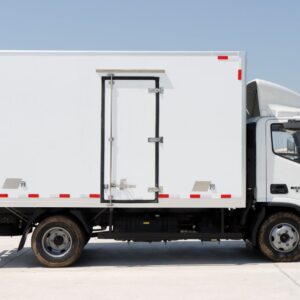

The FOTON OULIN Dry Van Truck is an ideal solution for urban and short-haul logistics operations.

Powered by a Cummins 156 HP diesel engine paired with a manual transmission, it delivers an optimal balance of load-bearing capacity and fuel efficiency. The chassis features a leaf spring suspension system, designed for a cargo capacity of approximately 4.2 tons, offers a balance between load space and manoeuvrability in urban environments. The van body utilizes 100% KPS composite panels, which are 30%-40% lighter than traditional steel structures, while maintaining the same strength. The panels are resistant to corrosion and are not prone to cracking or deforming, ensuring a long service life.

The body’s enclosed design, combined with integrated sealing rubber, provides excellent waterproofing, dust resistance, and leakage prevention, ensuring cargo stays dry and uncompromised even in harsh weather. It is easy to clean, enabling it to handle complex road conditions with reliability.

Features

Item	Our Advantages / Special	Reference Pictures

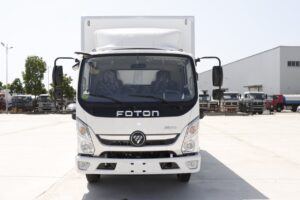

1	OLLIN single cab
2	Cab roof fairing
3	Center lock, power windows, A/C

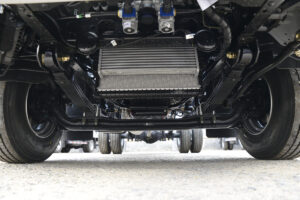

4	Mechanical leaf spring

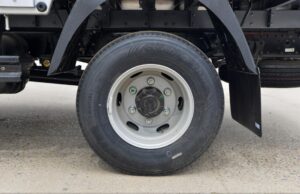

5	7.00R16LT radial tires

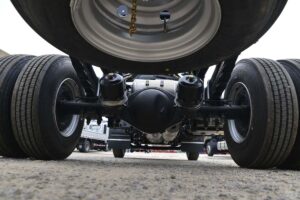

6	Drum brake with ABS

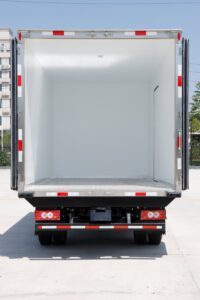

7	Aluminum alloy pattern plate floor
8	Aluminium profile and wrap angle

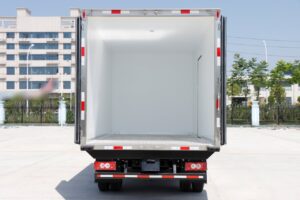

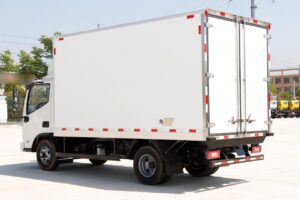

9	All-closed sandwich structure panels

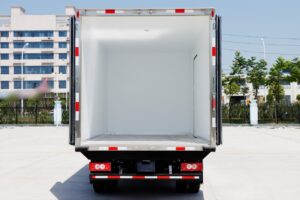

10	Fiberglass reinforced plastic inner and outer layer

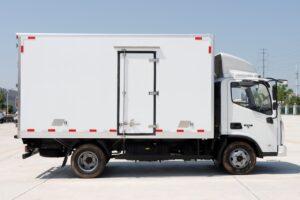

11	Single swing side door

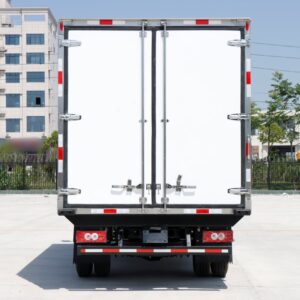

12	Double swing rear door
13	Stainless steel hinges and locks
14	Stainless Steel Door Frame
15	Waterproof sills are installed at the bottom of the side and rear doors, with rain deflectors mounted on top to prevent water infiltration through the door gaps

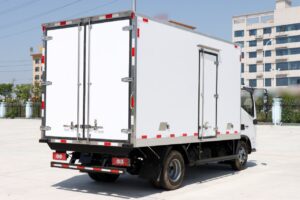

16	The doors feature rubber seals for superior airtightness and weatherproof performance

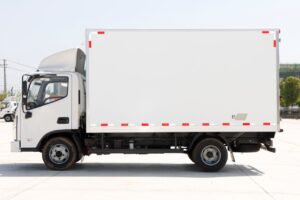

17	Side guards
18	Rear bumper

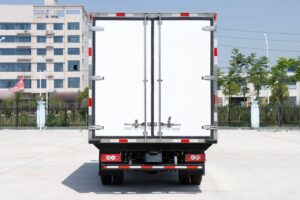

19	LED lights
20	Reflective strips on box

Measurement

Weights

Chassis Truck Line

FOTON/OLLIN: F2.8N156 E6 LHD

Cab

Make/Model: OLLIN

Cab type: Day Cab

Cab roof: Standard

Cab width: 1880mm

No. of Seats: 3

Construct: All-steel

Instrument & Controls: Center lock, power windows

Driver Seat: Adjustable

Steering: Mechanical tilting

Equipment, device: A/C, radio, Cassette record

Engine

Make/Model: Cummins/F2.8NS6B156

Output Power/Speed: 115kw(156hp)/2900rpm

Max. Torque/Speed: 450N·m/1500-2400rpm

Displacement: 2.78L

Engine Type: 4-cylinder inline, intercooler turbocharged, high-pressure common rail direct injection, diesel engine

Emission Regulation: EURO 6

Clutch: Single plate dry diaphragm spring clutch (Diameter: 310mm)

Transmission

Make/Model: WLY/6MT

Type: Manual

Gear Number: 6F+1R

Synchronizer: Equipped

Steering

Type: Recirculating ball, power assisted adjustable column

Position: Left hand side

Chassis

Type: U-profile parallel ladder cold riveted cross

Frame layer: 2 layers standard body unit mounting

Suspension: Mechanical; Semi-elliptic Leaf springs 3/8+6

Axle:

• Front Axle: Steering Axle (Rating: 1575kg)
• Rear Axle: Driving Axle (Rating: 2920kg; Rear Axle Ratio: 4.875)

Electric

Working Voltage: 24V

Brakes

Service Brake: Dual circuit compressed air brake

Parking Brake: Spring energy compressed air operating on rear wheel

Auxiliary brake: Engine exhaust brake

ABS

Body Unit Customization
