Basic Info

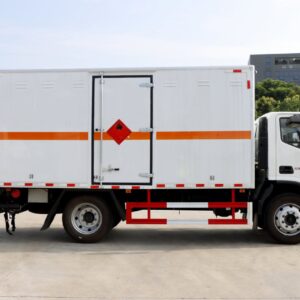

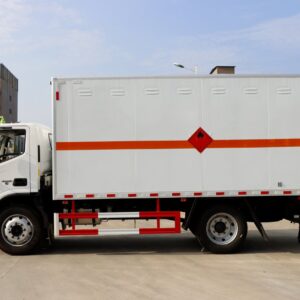

TOPIC: 5m Hazardous Materials Transport Truck

MODEL CODE: 8H0410000

HC2000E: 8H0410000

Truck Make/Model

Chassis Make/Model: FOTON/AUMARK S3

Engine Make/Model: Cummins/F3.8NS616

Transmission Make/Model: ZF/ZF6S58

Capacity: 23CBM

Min-component: Fire-retardant insulation

Performance

Anti-fire, explosion-proof and anti-static cargo box with excellent sealing performance, specifically designed for hazardous materials transportation.

Description

The FOTON AUMARK Hazardous Materials Transport Van Truck is designed with safety and compliance as a primary consideration, and is used to transport hazardous materials in individually packaged containers. It is equipped with a FOTON-AUMARK S3 series chassis, featuring a Cummins high-performance engine and a ZF high-efficiency transmission, forming a powerful, responsive, and reliable powertrain system. The truck features front disc brakes, front-mounted exhaust pipes, and a steering wheel tire blowout emergency device to fully ensure driving safety.

The superstructure employs an advanced seamless modular structure, ensuring the high structural integrity, durability, and safety required for hazardous materials transport. The box frame is made of galvanized steel, with a 1.0mm outer skin, 1.2mm high-quality Wuhan Iron and Steel cold-rolled steel plate. The inner lining uses 1.0mm aluminum alloy checked plate, and the frame cavities are filled with B1-grade flame-retardant and fire-insulating material, providing strong load-bearing capacity, anti-slip, and effective static dissipation. The outer skin is constructed of 5mm Wuhan Iron and Steel plate, with a 0.8mm flame retardant and anti-static plate on the outer surface, providing long-term durability.

The cargo box is securely fixed to the chassis using a dual welding and bolt connection system, ensuring structural stability and long-term reliability. The overall structure is lightweight yet robust, offering enhanced corrosion resistance and a longer service life. Door seams are sealed with integrated EPDM rubber sealing strips, achieving excellent airtightness and weatherproofing. Galvanized door hinges provide superior corrosion resistance, and a long service life. Anti-static rubber drag strips are installed on both sides of the rear of the chassis to ensure operational safety. The cab is equipped with triangular hazard warning lights, and 3M reflective strip on the sides and rear of the vehicle to maximize visibility. Clear aluminum markings indicate the type of hazardous material being transported, along with mandatory safety signs and no-smoking warnings.

Overall, this vehicle is ideal for transport of hazardous materials, ensuring maximum safety for goods and the surrounding environment during operations.

Features

Item	Our Advantages / Special	Reference Pictures
1	AUMARK S3 Cabin
2	A/C, Center lock, power windows, Remote key

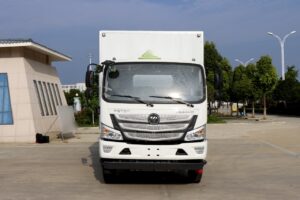

3	Dangerous goods triangular roof lights are installed on the top of the cab

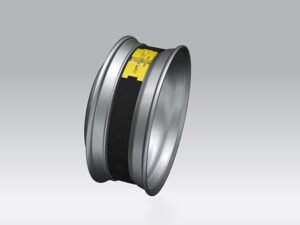

4	Steering wheels are equipped with tire blowout emergency protection devices

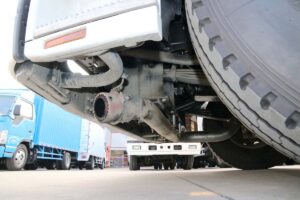

5	Front-mounted exhaust pipe
6	Front wheel with disc brakes
7	ABS
8	The cargo box adopts a new non-welded construction technology, combined with a bonding and sealing assembly process that eliminates putty filling

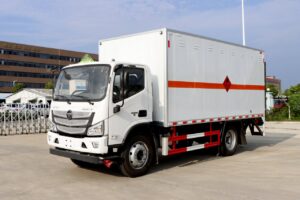

9	Galvanized pipe skeleton structure
10	The interior layer is filled with B1-grade flame-retardant material
11	Cold-rolled steel plate outer layer and 1mm Aluminum alloy plate inner layer
12	Single swing side door
13	Double swing rear door
14	The doors feature one-piece EPDM rubber seals for superior airtightness and weatherproof performance

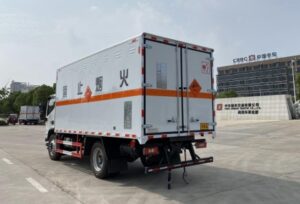

15	Galvanized hinges and locks
16	Waterproof sills are installed at the bottom of the side and rear doors, with rain deflectors mounted on top to prevent water infiltration through the door gaps

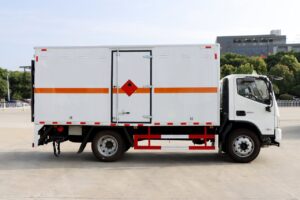

17	Side guards
18	LED lights
19	Anti-static rubber grounding strips

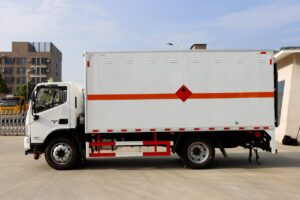

20	Equipped with orange reflective tape on the sides and rear of the vehicle body for enhanced visibility and safety
21	Hydraulic tailgate
22	Equipped with a combustible gas detector inside the cargo box for enhanced safety

Measurement

Weights

Chassis Truck Line

FOTON/AUMARK: F3.8NS616 5.6 LHD

Cab

Make/Model: AUMARK S3

Cab type: Day Cab

Cab roof: Standard

Cab width: 2060mm

No. of Seats: 3

Construct: All-steel full-point airbag suspension cab

Instrument & Controls: Center lock, power windows, remote key

Driver Seat: Adjustable

Steering: Hydraulic tilting

Equipment, device: A/C, radio, Cassette record

Engine

Make/Model: Cummins/F3.8NS616

Output Power/Speed: 115kw(156hp)/2600rpm

Max. Torque/Speed: 500N·m/1100-1900rpm

Displacement: 3.8L

Engine Type: 4-cylinder inline, intercooler turbocharged, high-pressure common rail direct injection, diesel engine

Emission Regulation: EURO 6

Clutch: Single plate dry diaphragm spring clutch (Diameter: 350mm)

Transmission

Make/Model: ZF/ZF6S58

Type: Manual

Gear Number: 6F+1R

Synchronizer: Equipped

Steering

Type: Recirculating ball, power assisted adjustable column

Position: Left hand side

Chassis

Type: U-profile parallel ladder cold riveted cross

Module: Frame layer standard body unit mounting

Suspension: Mechanical; Semi-elliptic Leaf springs 8/9+6

Axle:

• Front Axle: Steering Axle (Rating: 3535kg)
• Rear Axle: Driving Axle (Rating: 8460kg; Rear Axle Ratio: 4.33)

Electric

Wiring voltage: 24V

Starter: –

Alternator: –

Battery type: –

Brakes

Service Brake: Dual circuit compressed air brake

Parking Brake: Spring energy compressed air operating on rear wheel

Auxiliary brake: Engine exhaust brake

ABS: –
