5600×2300×900-1500mm Inner Tipper Body Dimension
NM450 High Strength Body Material
4-6mm Side Plate, 6-8mm Base Plate Thickness
280/300/320mm Frame Closed Height
2 or 4 Floor Longitudinal Beams

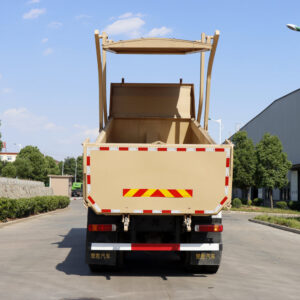

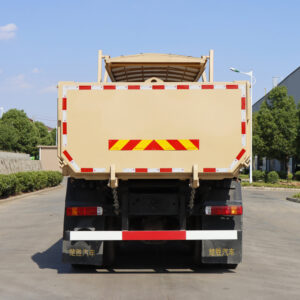

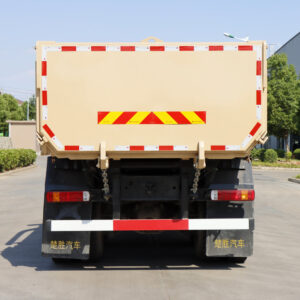

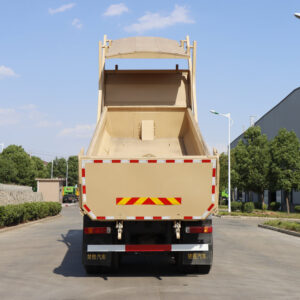

Rear Door Opening Design
Jiaheng / Haiwo Complete Hydraulic System
BRIEF

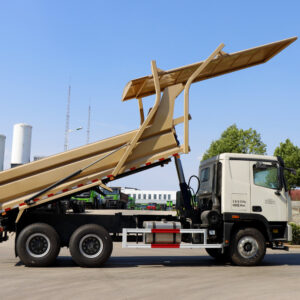

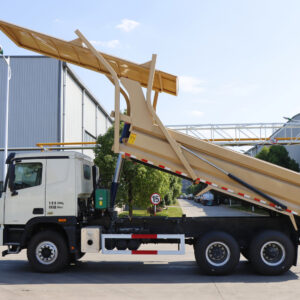

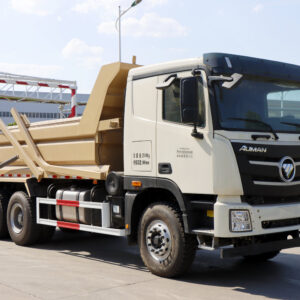

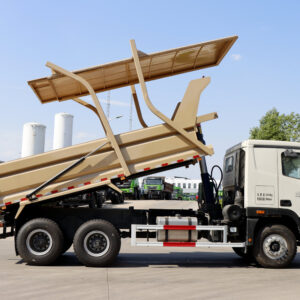

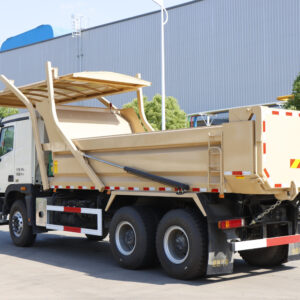

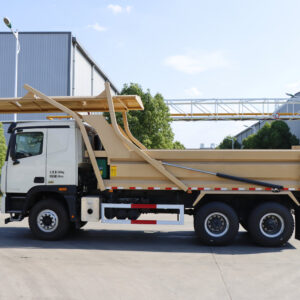

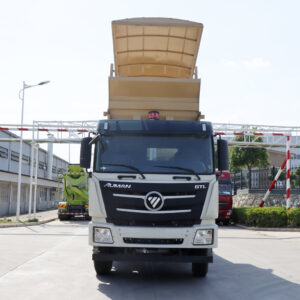

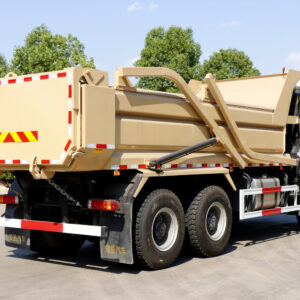

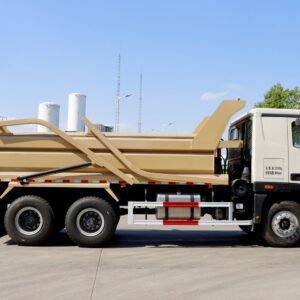

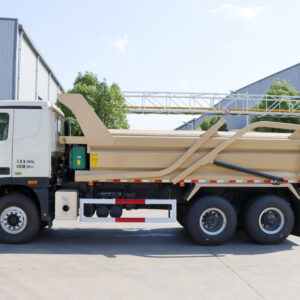

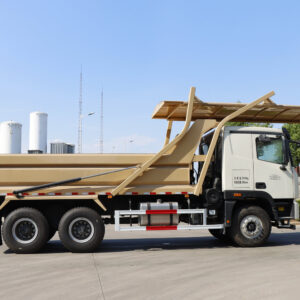

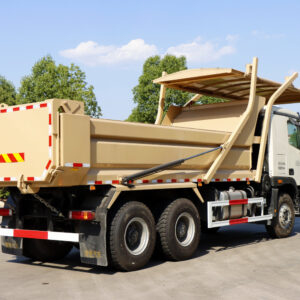

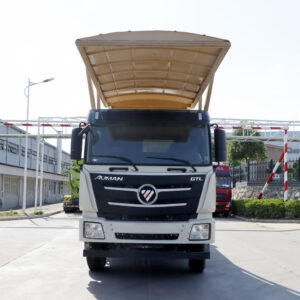

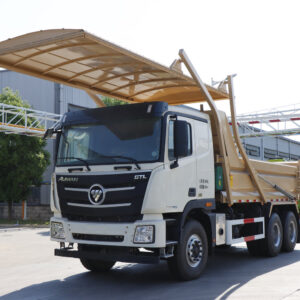

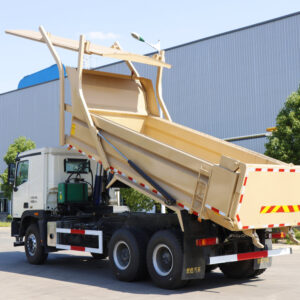

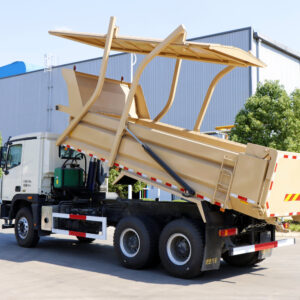

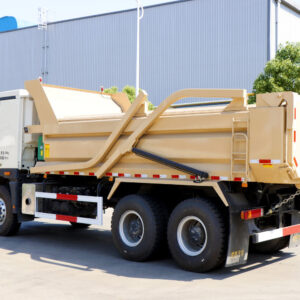

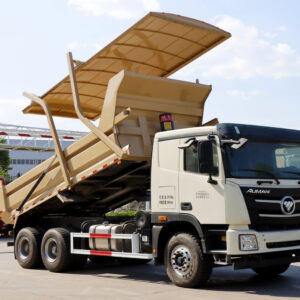

The superstructure of this truck is made of wear-resistant steel with a U-shaped tipper body. Its top cover system adopts a rigid steel roof equipped with a parallel four-link mechanism and double-acting hydraulic cylinders for opening and closing. The chassis is an 8×4 model specially developed by a leading domestic vehicle manufacturer. The whole vehicle features a well-proportioned and attractive appearance, rational structural layout, advanced manufacturing technology and outstanding structural performance. Boasting powerful horsepower, comfortable handling and excellent trafficability, the truck is sturdy and long-lasting. It is widely operated in cities including Guangzhou, Shenzhen and Zhengzhou.
FEATURES

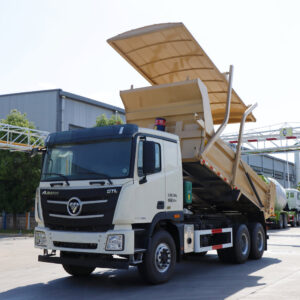

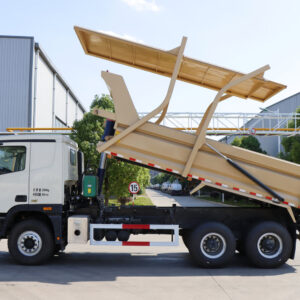

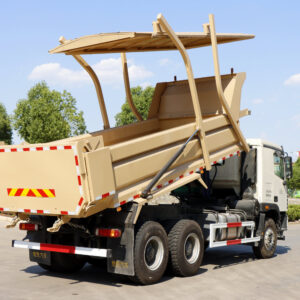

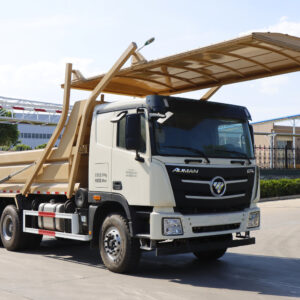

- Adopts parallel four-link hydraulic top cover sealing design to achieve full sealing without dead corners, featuring superior environmental performance and high reliability.
- The top cover opens from the front without occupying loading space of the cargo body, enabling convenient and easy cargo loading.
- U-shaped body structure constructed from wear-resistant steel delivers high strength and strong load capacity while keeping light body weight to meet regulatory standards.
- Optional rear and side cameras as well as blind-spot radar are available to enhance driving safety.
- Optional spray suppression system effectively controls dust during vehicle travel.
- The complete hydraulic system is supplied by well-known domestic and international manufacturers with advanced technology, long service life and reliable product quality.
