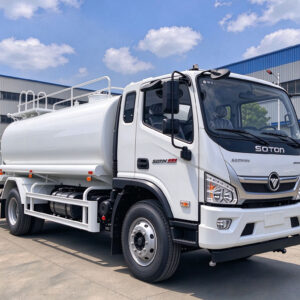

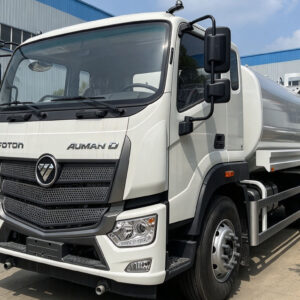

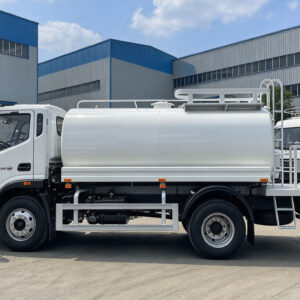

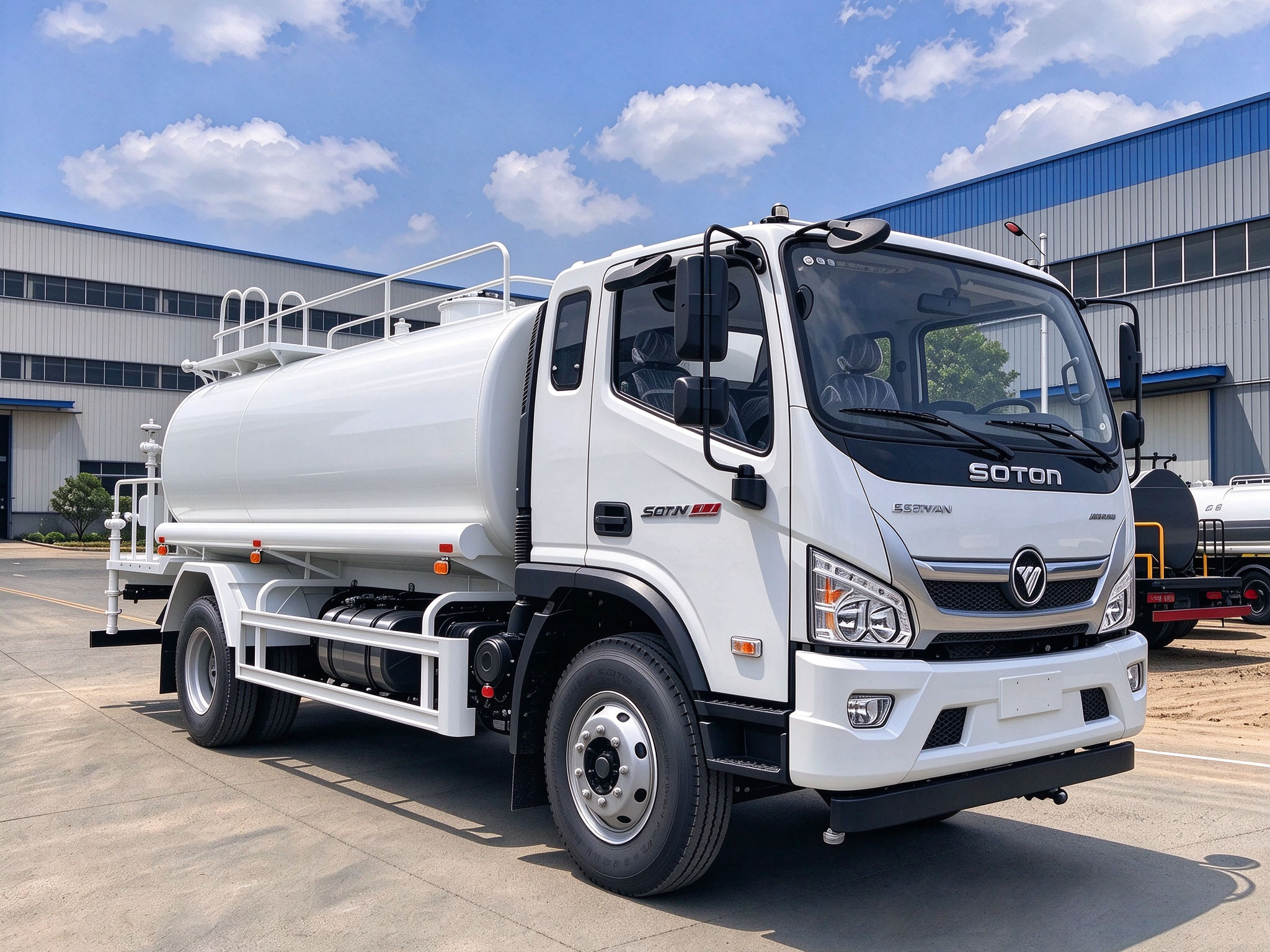

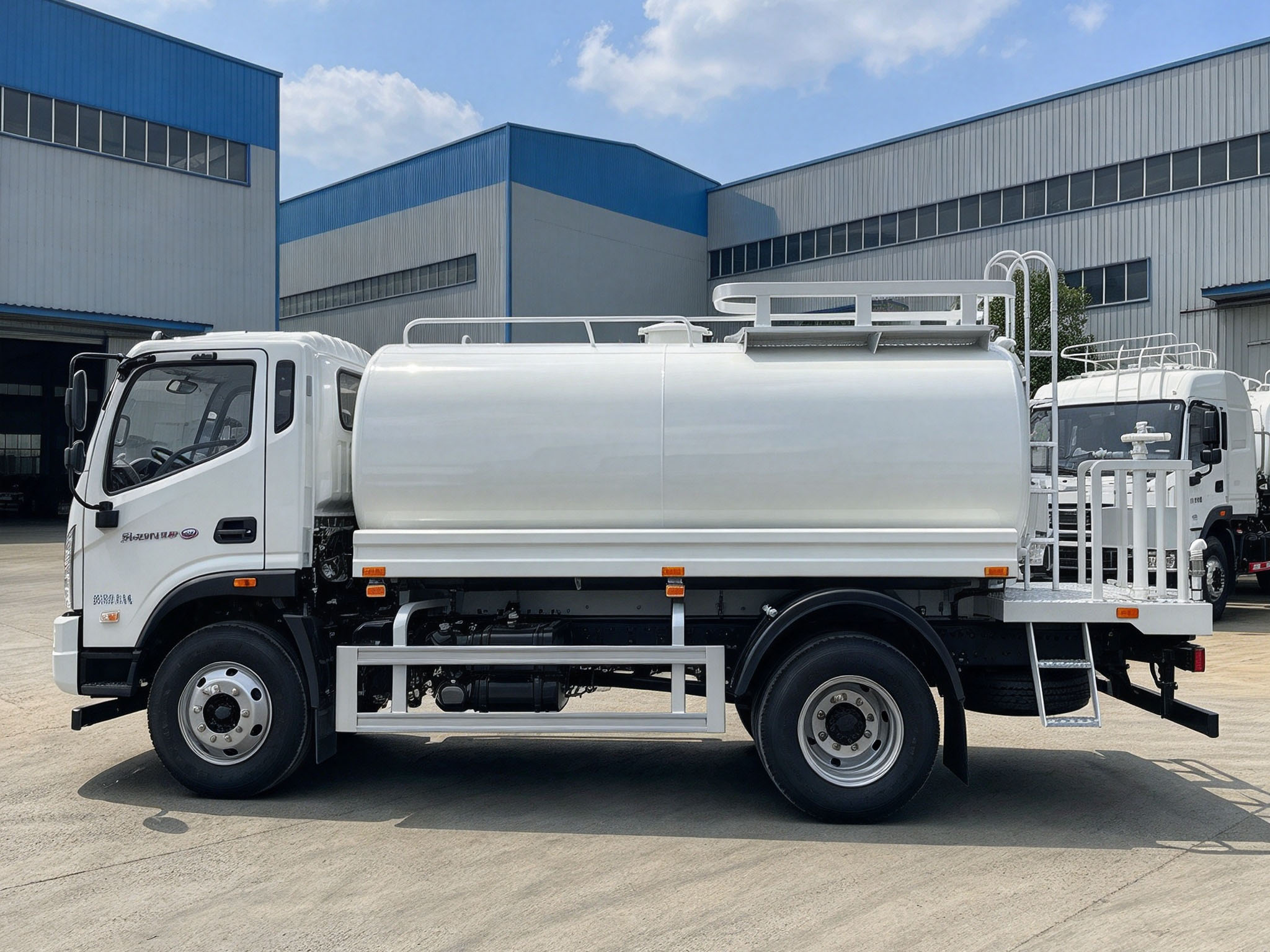

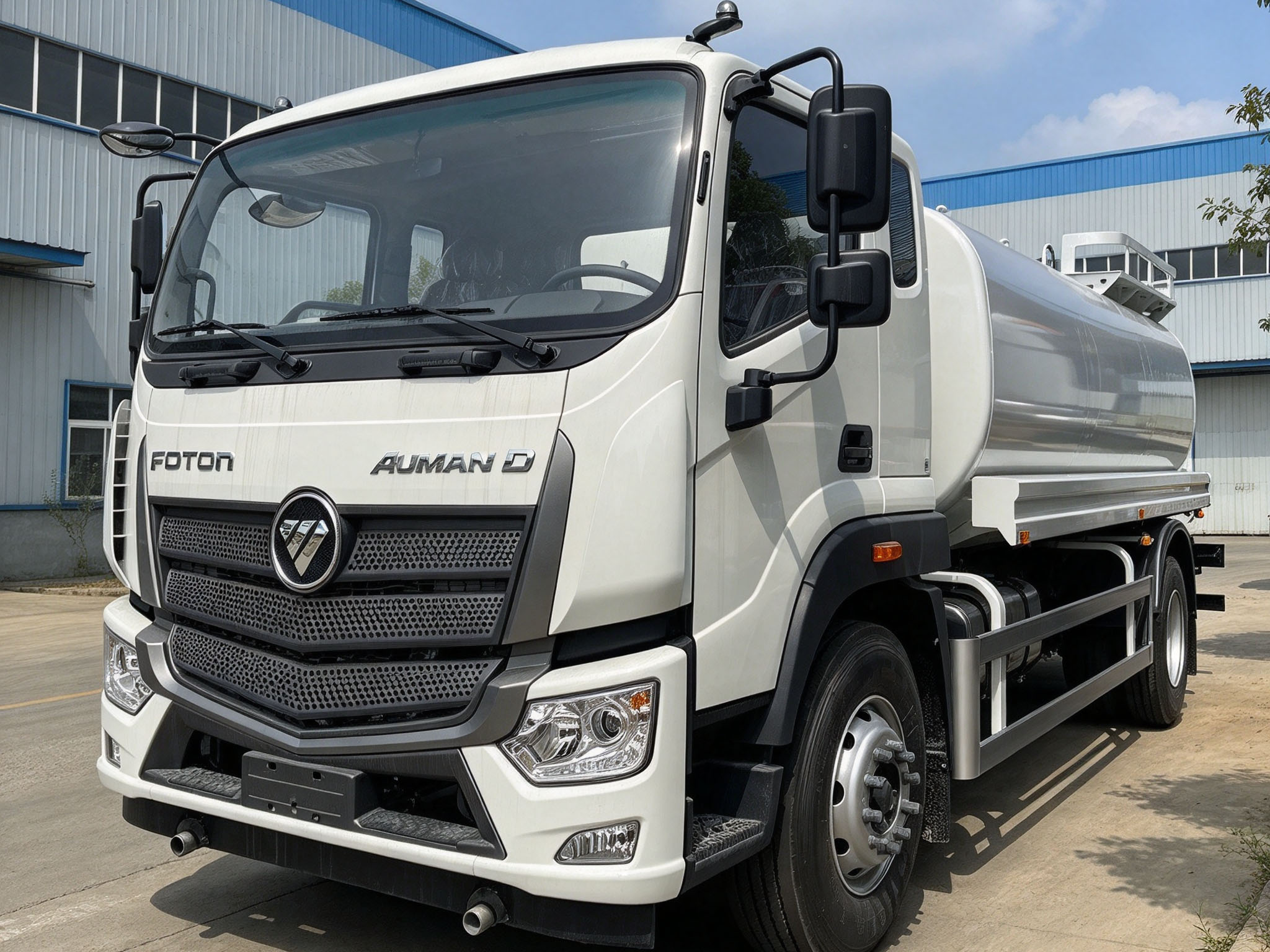

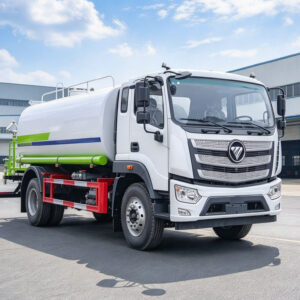

FOTON 15 CBM Water Sprinkler Truck
A multi-function 4×2 street-washing sprinkler from CRRC Vehicles built on the Foton Aumark platform — 15,000 litre (15 CBM) tank, self-priming 60 m³/h pump, four-way spraying, a 360° water cannon reaching 28–35 m, left-hand drive.
Overview What this truck is built to do
The Foton 15 CBM water sprinkler truck from CRRC Vehicles (model WS15BJ300L3) is a multi-function municipal sprinkler built on the Foton Aumark 4×2 chassis. One body covers road washing, front flushing, rear and side spraying, high-pressure water cannon work, greenbelt irrigation and bulk water hauling for city sanitation departments, highway crews, construction sites and landscaping contractors.
Power comes from a Yuchai diesel rated at 300 hp (~221 kW) (240 hp Yuchai or 168–210 hp Cummins optional), shifted through a manual five- to six-speed gearbox. With an 18,000 kg gross vehicle weight and a 6,250 kg kerb, the truck carries a full 15 CBM tank with about 11,000 kg of rated payload and stays stable through town and highway alike. The 15 CBM (15,000 L) tank is the practical mid-size between the 10,000 L and 16,000 L builds on the same platform.
The tank is fabricated from Q235B carbon steel 4 mm, finished with a rust-inhibiting primer plus top coat inside and out. A self-priming sprinkler pump moves 60 m³ per hour and primes from open water on its own, feeding a 12–16 m sprinkling area and a 360° rear cannon that reaches 28–35 m.
Daily operation is deliberately simple. A low water inlet and high overflow outlet protect the tank shell during filling, a full circulation pipeline with overflow protection stops spills on the move, and the rear platform carries a guardrail and safety ladder. Units are built in left-hand drive as standard (right-hand drive on request), in any requested body colour, certified to ISO 9001 and CCC, with a one-year / 30,000 km warranty and 24-hour online after-sales support from CRRC Vehicles.
Key Features Ten reasons this tanker earns its lane
15 CBM Multi-Function Build, 10–16 CBM on Request
CRRC lists the 15 CBM (15,000 L) tank as the standard configuration, while 10,000 L and 16,000 L builds are available on the same Foton Aumark chassis. One platform, one spare-parts list, no retraining between sizes.
Self-Priming Pump, No Manual Fill
The self-priming pump draws water from rivers, ponds, fire hydrants and storage tanks on its own and delivers 60 m³/h with a fire-hydrant coupling and gravity-flow filling provided.
Four-Way Spraying with 360° Cannon
Front flush, rear and side spray for carriageway and greenbelt, and a rear-platform cannon with 360° rotation reaching 28–35 m — switch patterns from the cab or platform for washing, irrigation or dust suppression.
Q235B Tank with Proper Anti-Corrosion
Tank shell and heads are formed from Q235B carbon steel 4 mm, shot-blasted and coated with rust-inhibiting primer plus top coat, with internal anti-corrosion treatment. Stainless steel is available where chlorinated or brackish water is used.
300 hp Yuchai on a Proven Aumark Chassis
A 300 hp Yuchai diesel (240 hp Yuchai or 168–210 hp Cummins optional) drives a manual gearbox on the proven Foton Aumark 4×2 platform — a known quantity in many export markets, so service and parts are never a sourcing problem.
Axles Sized for a Full Tank
An 18,000 kg GVW with a 6,250 kg kerb weight leaves about 11,000 kg of rated payload for water, crew and equipment. The 4×2 arrangement and leaf-spring suspension keep the ride predictable whether the tank is empty or full.
Filling and Venting That Protect the Tank
A low-mounted inlet and high-mounted overflow outlet reduce filler-neck stress and let the operator see the tank reach full without pressurising the shell. A top manhole gives hatch access for cleaning and inspection, and the complete circulation line carries overflow protection so nothing spills onto the road during transport.
Safe to Work From

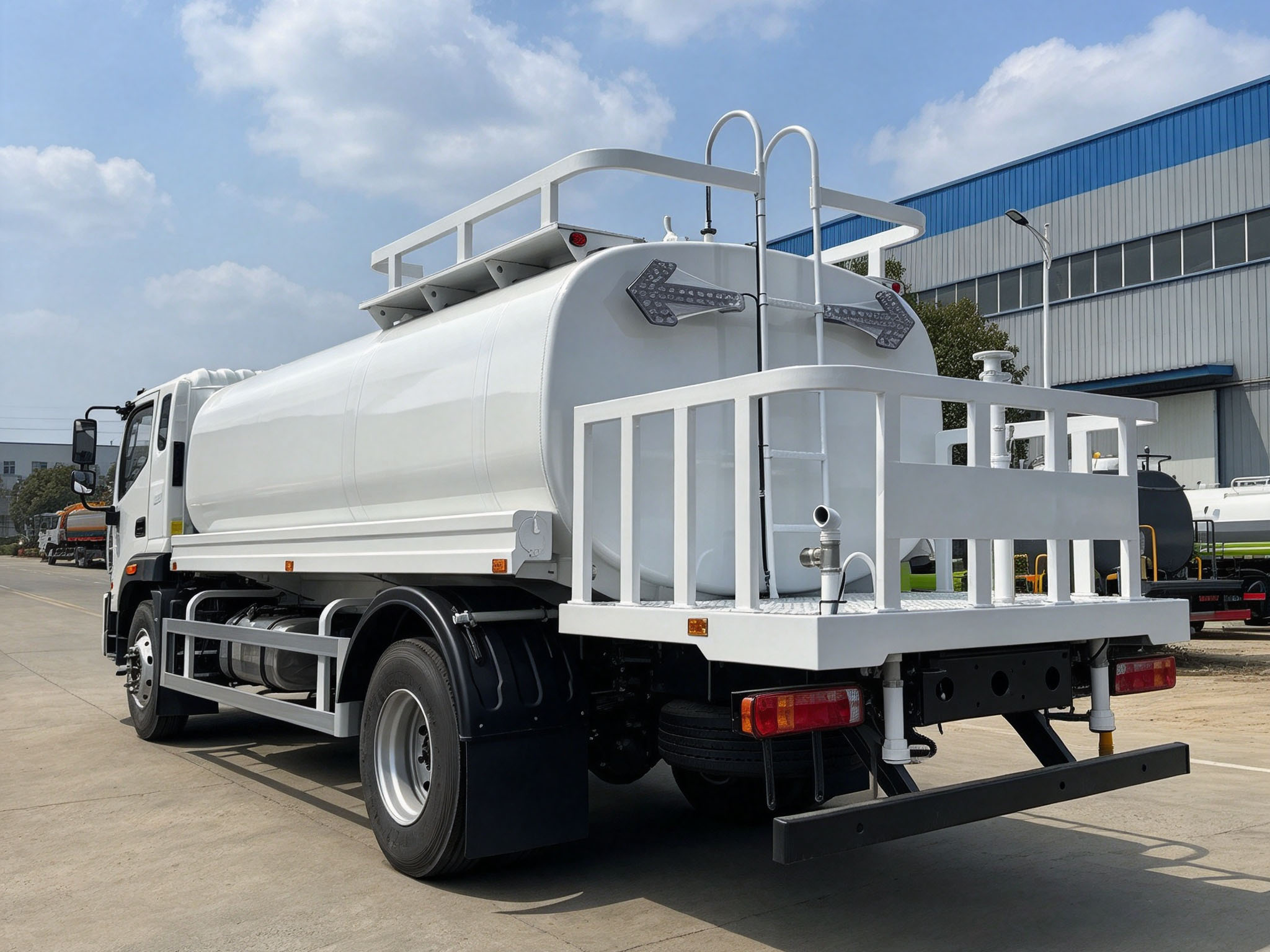

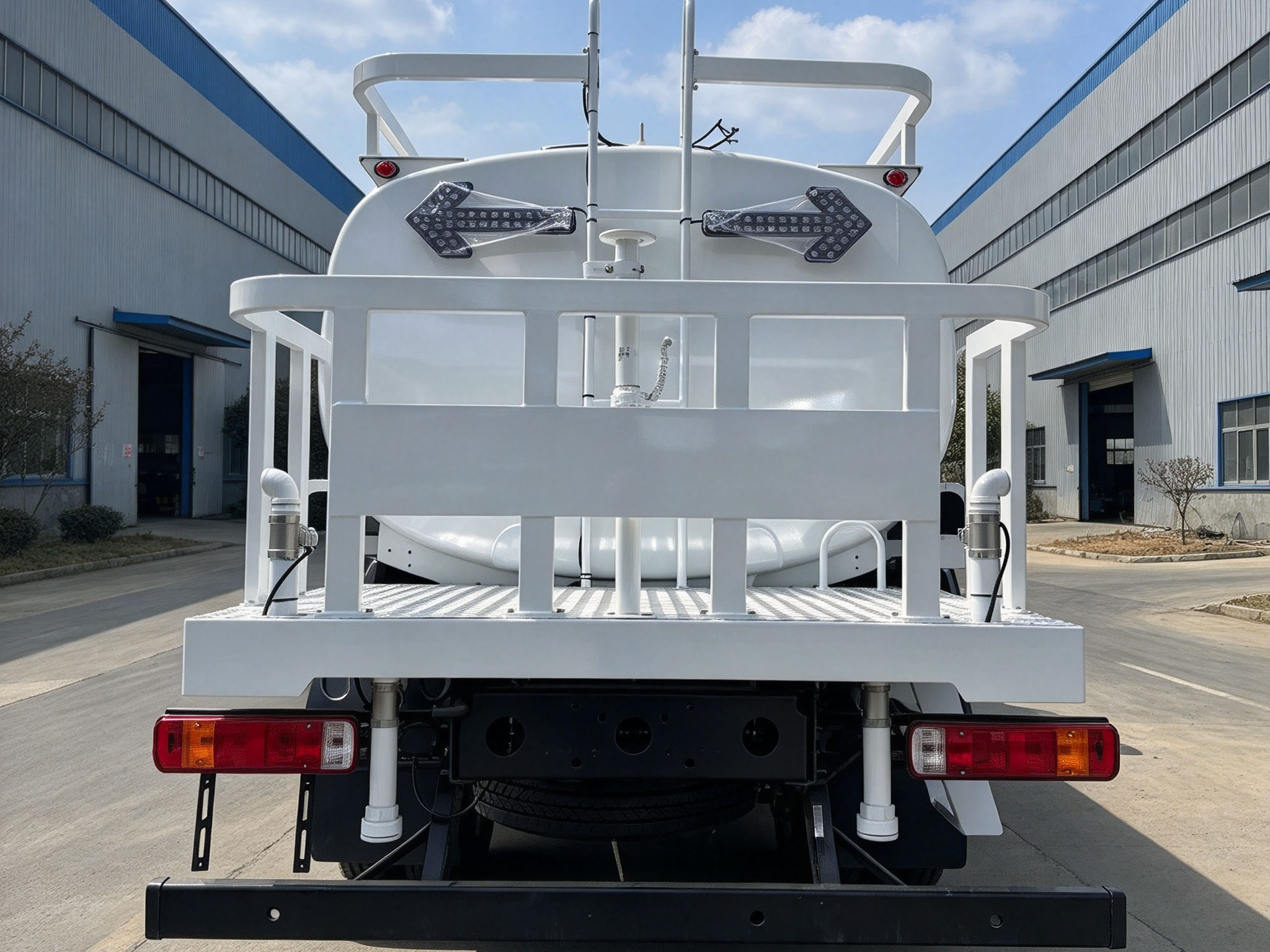

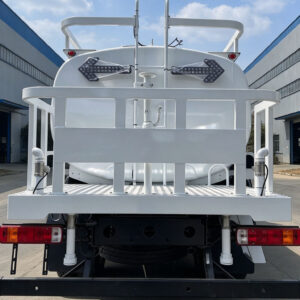

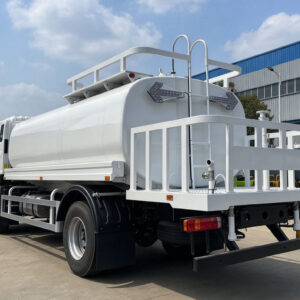

A full-width rear platform with tubular safety guardrail and a bolt-on access ladder lets operators work the cannon and hose reels safely at height. Air brake with ABS is standard, and 10.00R20 / 11.00R20 tyres handle mixed sealed and unpaved surfaces.
Left-Hand Drive Standard, Any Colour, 4×4 Optional
Built in left-hand drive (LHD) to suit the widest export markets (RHD on request). Body colour is free to match a fleet livery; 4×4 drive, stainless steel tank, fog cannon and different pump outputs are selectable at order.
Certified, Backed, and Ready to Export
ISO 9001 and CCC certified, with EPA, EEC and RoHS documentation available on request. Every unit carries a one-year / 30,000 km warranty, whichever comes first, backed by 24-hour online after-sales support and a CRRC engineering team that reviews drawings against your route and climate before build.
Specifications Standard configuration (WS15BJ300L3)
Applications Where this truck is deployed
Street & highway cleaning
Construction site dust suppression
Greenbelt & landscape irrigation
Industrial yard & port cleaning
Emergency water supply & transport
Street-tree and median watering
Post-fire and disaster relief support
FAQ What buyers ask before ordering
- What tank size should I choose — and why 15 CBM?
- CRRC standardises on the 15 CBM (15,000 L) tank, the practical mid-size of the 10–16 CBM range on the Foton Aumark chassis and the best balance of payload, axle load and cost for daily municipal work. 10,000 L and 16,000 L builds are available on the same platform.
- Can the pump draw from a river or pond without a hydrant?
- Yes. The pump is self-priming, with a fire-hydrant coupling and gravity-flow filling provided, so the truck works from mains pressure or open water on site.
- Is the truck left-hand drive, and can I pick a colour?
- Left-hand drive (LHD) is the standard configuration (RHD on request). Body colour is free to match your fleet livery, and 4×4 drive, stainless steel tank, fog cannon and different pump outputs are selectable at order.
- What is the lead time and warranty?
- Around 15 working days in the low season and one to three months during peak season, from a single unit upward. Warranty is one year or 30,000 km, whichever comes first, with 24-hour online after-sales support from CRRC Vehicles.
About CRRC Vehicles Who stands behind this listing
CRRC Vehicles is a professional consulting and industry insights platform focused on the global mobility and vehicle industry. We cover rail transit, smart mobility, new energy vehicles, special-purpose vehicles, and emerging transportation technologies.
With a global perspective and industry-focused expertise, we provide clear, reliable, and practical insights into vehicle technology, market trends, and business opportunities — helping industry professionals, businesses, and investors make informed decisions and navigate the future of mobility.
Explore more at crrcvehicles.com · Built for enterprises and individuals sourcing every type of truck.
Ordering Information
- ✓ MOQ: 1 unit — mixed configurations accepted
- ✓ Tank: 15,000 L std / 10,000–16,000 L range
- ✓ Drive: 4×2 (4×4 / 6×4 optional), LHD
- ✓ Certification: ISO 9001, CCC
- ✓ Warranty: 1 year / 30,000 km
- ✓ Shipping: naked, waxed, RoRo or container
Send CRRC Vehicles your route profile, daily water demand and destination port — our engineering team will confirm tank volume, pump output and axle rating, then issue drawings and a landed-cost quotation. Custom chassis, fleet colour matching and full spare-parts support are all handled in-house.
